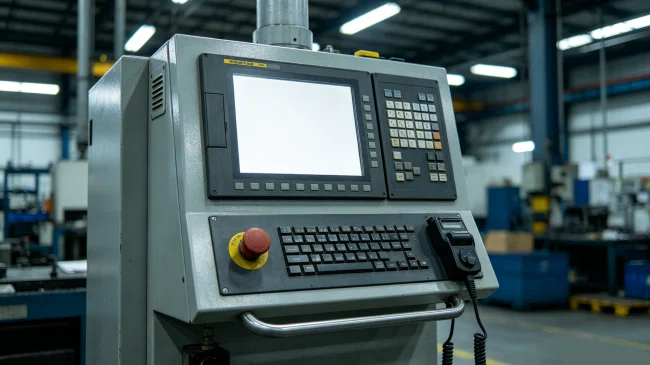

White Screen on Industrial equipment LCD panels Upon Startup: Causes and Solutions

I. The Imaging Principles of Industrial LCD Panels

To understand why a screen goes white, we need to look at how an industrial LCD panel works. Structurally, it consists of two main parts: the backlight module and the TFT-LCD glass panel.

• The backlight module serves a single purpose: providing the raw light source.

• The TFT (Thin-Film Transistor) layer and control ICs regulate whether light passes through each pixel to form an image.

When you power on the device, a lighting backlight shows that the initial power is live. However, if the control circuitry on the LCD panel fails to boot, the liquid crystal molecules cannot align. They cannot block the light, so the raw backlight blasts straight through the glass, resulting in a completely white screen.

Engineering Rule of Thumb: A white screen means the backlight is perfectly fine, but the logic drive circuitry (the TFT panel and its T-CON/driver ICs) has failed to initialize.

II. 4 Core Causes of Industrial LCD White Screens

♦ Power Circuit Failure in the LCD Panel

This is the most common hardware failure. The TFT gates inside the LCD panel require specific voltages to switch properly. For example:

• V_CC / V_DD: Logic power supply (typically 3.3V or 5V)

• V_GH/V_GL: Gate turn-on/turn-off voltages (typically between 15V and 30V, and between -5V and -10V).

If the controller board (A/D board) or the panel’s onboard DC-DC converter chip gets damaged, these specialized voltage rails will fail to rise. The liquid crystal molecules will be in a disordered state, resulting in a completely white screen.

♦ Poor Contact in Panel Cable

In industrial environments (such as CNC machine tools or in-vehicle terminals), continuous mechanical vibration, thermal aging, and chassis warping take a heavy toll. The gold fingers on the LVDS or eDP cables linking the motherboard to the LCD panel can shift slightly. If even a couple of data cables lose contact, the LCD panel receives zero valid video data, triggering a fallback white screen.

♦ Motherboard Control Circuitry Faults

In industrial LCD display setups, the motherboard's driver and firmware timing are critical. If components on the motherboard control loop age prematurely, get zapped by an inrush voltage surge at boot, or output corrupted refresh rates and clock signals, the LCD panel’s T-CON (Timing Controller) chip won't be able to parse the data. As a failsafe, the screen defaults to a blank white display.

♦ LCD Panel Drive Circuitry Failure

The panel drive circuitry refers to the Row/Column Driver ICs (often COF/COG packages) bonded directly onto the edge of the LCD glass. Severe field environments—such as extreme heat, high humidity, or transient voltage spikes—can easily fry the internal T-CON chip or cause the COF/COG chips to de-solder due to thermal stress.

The "White Screen Upon Power-Off" Phenomenon: When the LCD display functions normally while running, but when the user hits the power button to shut down, the screen snaps to a bright white instead of going dark. If the unit powers on normally, the backlight and its inverter/high-voltage boost circuit are fundamentally intact; the white screen simply shows the LCD panel has lost its logic drive signals. If the screen turns white after shutting down the display, the blame almost lies with the power board.

This symptom means that regardless of whether the system is ON or OFF, as long as the main power cord is plugged in, the high-voltage generation circuit remains active and the backlight stays illuminated. In other words, the high-voltage circuit has bypassed the soft-switch control. The ON/OFF toggle signal sent by the motherboard microcontroller has lost control over the backlight rail. Because this MCU switch signal typically relies on several transistors for gating and logic inversion, this specific fault is almost always caused by a short-circuit breakdown or physical degradation of these control transistors.
