sRGB, WLED Backlight, Matte Surface.

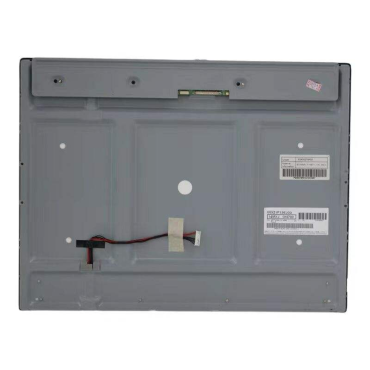

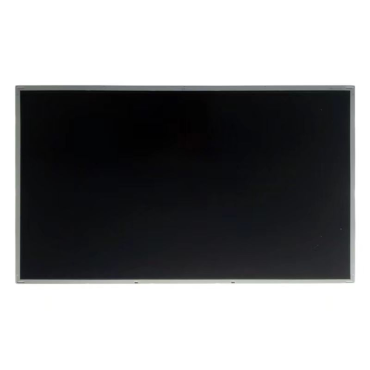

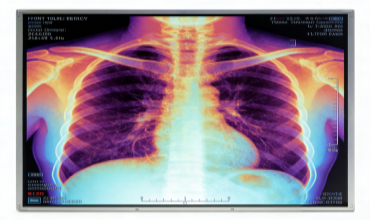

Panasonic VVX21F136J00 is a 21.3-inch IPS TFT LCD display panel specifically designed for medical imaging diagnosis. It adopts UXGA (1600×1200) medical standard resolution and achieves a delicate image display effect on a medium-sized screen. The product uses IPS wide-angle technology and supports full viewing angles (89°/89°/89°/89°), ensuring that doctors can obtain consistent color and clear contrast in the diagnosis images from different viewing angles. The surface of the LCD panel is treated with medical-grade matte finish, effectively suppressing reflection interference in strong light environments such as operating rooms and examination rooms. Combined with a typical brightness of 400 cd/m² and a high contrast ratio of 1500:1, it can maintain excellent readability of grayscale images in bright environments. The display covers 98% of the sRGB color gamut and supports 16.7M color display. The color reproduction is realistic, meeting the DICOM Part14 standard, and is suitable for precise display of medical images such as X-rays, CT, and ultrasound.
♦ High Resolution and Precise Color: The UXGA resolution (1600×1200) on a 21.3-inch screen offers a refined visual experience, complemented by a 98% sRGB color gamut coverage, making it suitable for scenarios such as image processing and medical imaging that require high levels of detail and color accuracy. ♦ IPS Full View Technology: Supports 89° full-angle viewing. Even when multiple people view the screen from different angles, the color and contrast of the picture remain consistent, making it suitable for collaborative environments and scenarios requiring multi-angle observation. ♦ Typical-brightness and anti-glare design: With a brightness of 400 cd/m² combined with matte surface treatment, the picture remains clear even in strong light conditions, avoiding reflection interference. It is suitable for complex lighting environments such as medical and industrial control. ♦Stable and reliable industrial design: Adopts dual-channel LVDS interface, ensuring stable signal transmission. The working temperature range is suitable for common indoor environments.
Brand
Panasonic
Type
a-Si TFT-LCD, LCM
Model
VVX21F136J00
Surface Finish
Matte
Size (inch)
21.3
Pixel Layout
RGB Vertical Strip
Outline Dimension (WxHxD mm)
456(W)×349.5(H)×22.8(D)
Optical Mode
IPS,Normally black display, TM
Active Area (WxH mm)
432(W)×324(H)
Backlight Type
11S5P WLED, 30K hours, with LED drive
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Interface
LVDS (2 ch, 8-bit), Connectors, 30 pins
Resolution
1600(RGB)×1200, UXGA,94PPI
Response Time
11/9 (Typ.) (Tr/Td) ms
Brightness (cd/m²)
400
Display Colors
16.7M, 98%sRGB
Contrast Ratio
1500:1 (Typ.) (TM)
Operating Temperature (°C )
0~ 50
Operating Voltage
5.0V (Typ.)
Storage Temperature (°C )
-20~60
Operating Frequency
60Hz
Weight
2.75Kgs (Typ.)
Application
Medical Imaging
Basic Information
Panel Brand
Diagonal Size
21.3 inch
Panel Type
Reliability
Operating Temperature
0~50℃
Storage Temperature
-20~60℃
Vibration Rating
---
RoHS
Specific Features
WLED Backlight, sRGB, Matte Surface
Pixel Features
Pixel Format
1600(RGB)×1200, UXGA
Dot Pitch
0.090×0.270mm
Configuration
RGB Vertical Stripe
Pixel Pitch
0.270×0.270 mm [94PPI]
Mechanical Size
Display Area
432x324 (HxV)mm
Outline Dimension
456x349.5 (HxV) mm
Visual Dimension
436.0x328.0 (HxV)mm
Outline Depth
17.98/22.8 (Typ./Max.) mm
Outline Features
Appearance Shape
Flat Rectangle
Orientation
Landscape mode
Aspect Ratio (H:V)
4:3
Shape Style
Way to Install
Side mounting holes (4-M3) on left, right bezel
Other Features
Surface
Brightness (cd/m2)
1500:1 (Transmission)
89/89/89/89 (Min.)(CR≥10)
IPS, Normally Black, Transmissive
Viewing Direction
Full-view
11/9 (Typ.)(Tr/Td) (ms)
Color Performance
Chromaticity
Wx:0.300; Wy:0.340
Color Numbers
16.7M ( 8-bit)
Color Temperature
7075K
Uniformity
1.33 (Max.)(9 points)
1931 Color Gamut
NTSC Ratio
75%
sRGB
98%
Adobe RGB
77%
DCI-P3
78%
REC.2020
56%
REmarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Back-light Features
Lamp Type
WLED
Replacement
No
Position
Edge Light type
Amount
11S5P
Lamp Shape
5 strings
Life Time
30K (Min.) hours
Interface Features
Connector
Interface Details
Pins
Pin Pitch
JST
PHR-10
1 pcs
10 pins
2.0mm
Driver Electrical
Without LED Driver
Current Input
65.2±4.5V
Voltage Input
60/63mA (Typ./Max.)
Consumption
20/21W (Typ./Max.)
Signal Electrical
0.75/1.15A (Typ./Max.)
Signal System
LVDS (2 ch, 8-bit)
Connector Detail
JAE
FI-X30SSLA-HF
1pcs
1.0 mm
30 pins
Stock trading screen, bank counter display, data monitoring large screen etc. 1. High readability and stability: The display does not flicker for a long time, reducing visual fatigue; 2. Strong interface compatibility: LVDS can be compatible with various industrial control motherboards; 3. Appropriate size: 21.3 inches is suitable for desktop-level multi-screen docking, expanding the information display area.
Ultrasound diagnostic equipment, endoscope display, digital X-ray reading station etc. 1. The resolution meets medical standards: 1600×1200 is the mainstream display resolution for ultrasound and endoscopes; 2. Excellent gray-scale performance: 1500:1 contrast ratio ensures clear identification of lesion edges; 3. High color accuracy: 98% sRGB coverage meets the true reproduction of tissue images.
Industrial microscope display, PCB detector, precision measuring instrument display terminal. 1. Strong detail presentation capability: 94 PPI pixel density can clearly display defects at the micron level; 2. Stability of viewing angle: IPS full-angle view ensures consistent image when multiple people are inspecting; 3. Resistance to environmental light interference: Matte screen avoids reflection of workshop lights affecting inspection judgment.
As a TFT LCD display module supplier with 13 years of expertise, Zhengzhou Hengxinda Technology Co., Ltd has provided high-quality LCD panels to thousands of customers across diverse industries. For these industrial-grade TFT LCD displays, we offer a full suite of supporting services: we not only supply compatible core components such as touch screens and LCD control boards, but also provide all the small parts required for installation, enabling a one-stop shopping "LCD panels + relevant components + custom services". With our in-depth understanding of the application needs of different industries, we can accurately meet customer requirements, facilitating smooth integration while saving both time and costs. Whether you are looking for stable supply, reliable quality, or comprehensive supporting services, these cost-effective industrial LCD panels are the perfect fit. HXD is committed to advancing your industrial projects successfully with our professional services and complete supporting solutions.
FAQs: Q1: Do you offer the option of customizing non-standard sizes? A: We offer comprehensive custom LCD displays. You can customize the LCD display to specific sizes according to your actual needs, such as circular, irregularly cut shapes, or non-standard aspect ratios. We have a complete production line and mature cutting techniques, which can ensure the accuracy of dimensions and display quality. Additionally, we support small batch customization, providing flexible options for the development of new products for our clients. Q2: Can your LCD displays withstand ultra-low or ultra-high temperature conditions? A: We offer industrial-grade LCD displays designed for extreme environments. The operating temperature range of this product is 0 to 50 degrees Celsius. If you require a wider temperature range (such as -20 degrees Celsius to 70 degrees Celsius or higher), we can customize a wide-temperature version and offer optional moisture-proof and dust-proof packaging processes to meet the usage requirements for industrial outdoor, vehicle-mounted or special equipment. Q3: Can you custom interface? A: We offer comprehensive interface adaptation solutions. Besides the standard LVDS interface, we can customize various interface conversion schemes for our clients, such as LVDS to eDP, LVDS to HDMI, etc. We also provide corresponding driver boards and cables. Q4: Could you provide a complete touch display solution? A: We offer an integrated touch display solution. Besides standard displays, we can select the appropriate touch screen (capacitive, resistive or infrared) for you, and provide professional full-lamination services to ensure smooth touch and clear display. In addition, we support custom special touch screens with features such as explosion-proof, scratch-resistant, and high hardness, to meet the needs of different application scenarios in industries like industrial and medical fields. Q5: Do your products have quality certifications? A: We strictly adhere to the quality control system. All products have passed reliability tests such as aging, high/low temperature, and vibration. For special industries like medical and industrial sectors, we can provide corresponding certification support or test reports based on customer requirements to ensure that the products meet industry standards and regulatory requirements.
