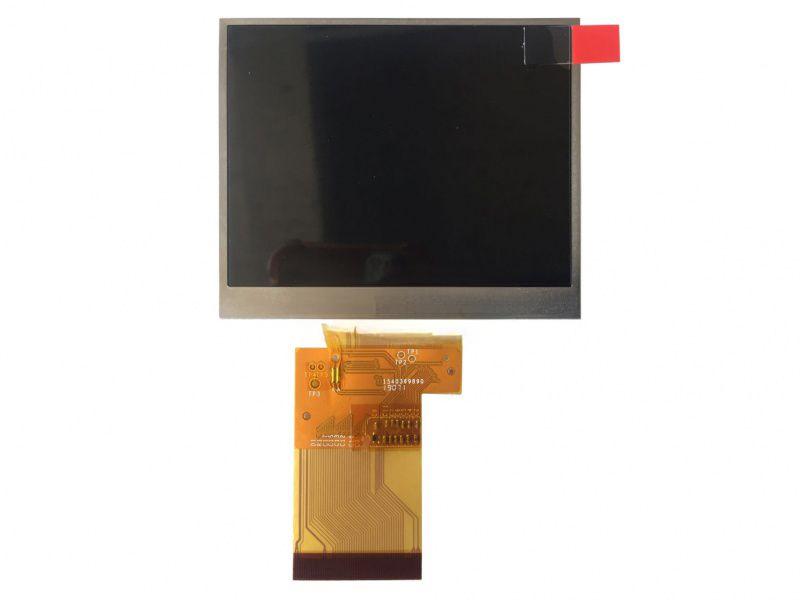

TM035KDH03-79

TM035KDH03-79

Download PDF Send Message

Basic Parameters

Panel Brand	TIANMA	panel model	TM035KDH03-79
Panel size	3.5-inch	panel type	a-Si TFT-LCD,LCD Module
resolution ratio	320(RGB)×240, QVGA, 115PPI	pixel layout	RGB vertical stripes
display area	70.08(W)×52.56(H) mm	Appearance size	76.9(W)×63.9(H)×3.35(D) mm
Brightness(cd/m²)	300 (Typ.)	the contrast	500 : 1 (Typ.) [Transmission]
visual Angle	70/70/60/70 (Typ.) (CR≥10)	surface treatment	matte
number of colors	16.7M , 50% NTSC	optical mode	TN, normally white display, transmissive
Panel Weight	30.0g (Typ.)	response time	20 (Typ.) (Tr+Td) ms
best angle	6 o'clock	Backlight type	20 (Typ.) (Tr+Td) ms
frame frequency	60Hz	be the same with	Handheld Terminal ，Car Display， Digital Camera
signal interface	Digital RGB (8/24-bit) + SPI, CCIR601/656 , FPC , 54 pins	touch panel	touchless
driving voltage	3.3V (Typ.)
application environment	Storage temperature: -30 ~80 °C ;Operating temperature: -20 ~70 °C ;Vibration resistance: 3.3G (32.3 m/s²)
