Wide temperature range, 1200 nits ultra-high brightness, white LED backlight, lifespan greater than 50,000 hours, includes LED driver, 180° flip display, optional 6/8-bit grayscale, matte surface.

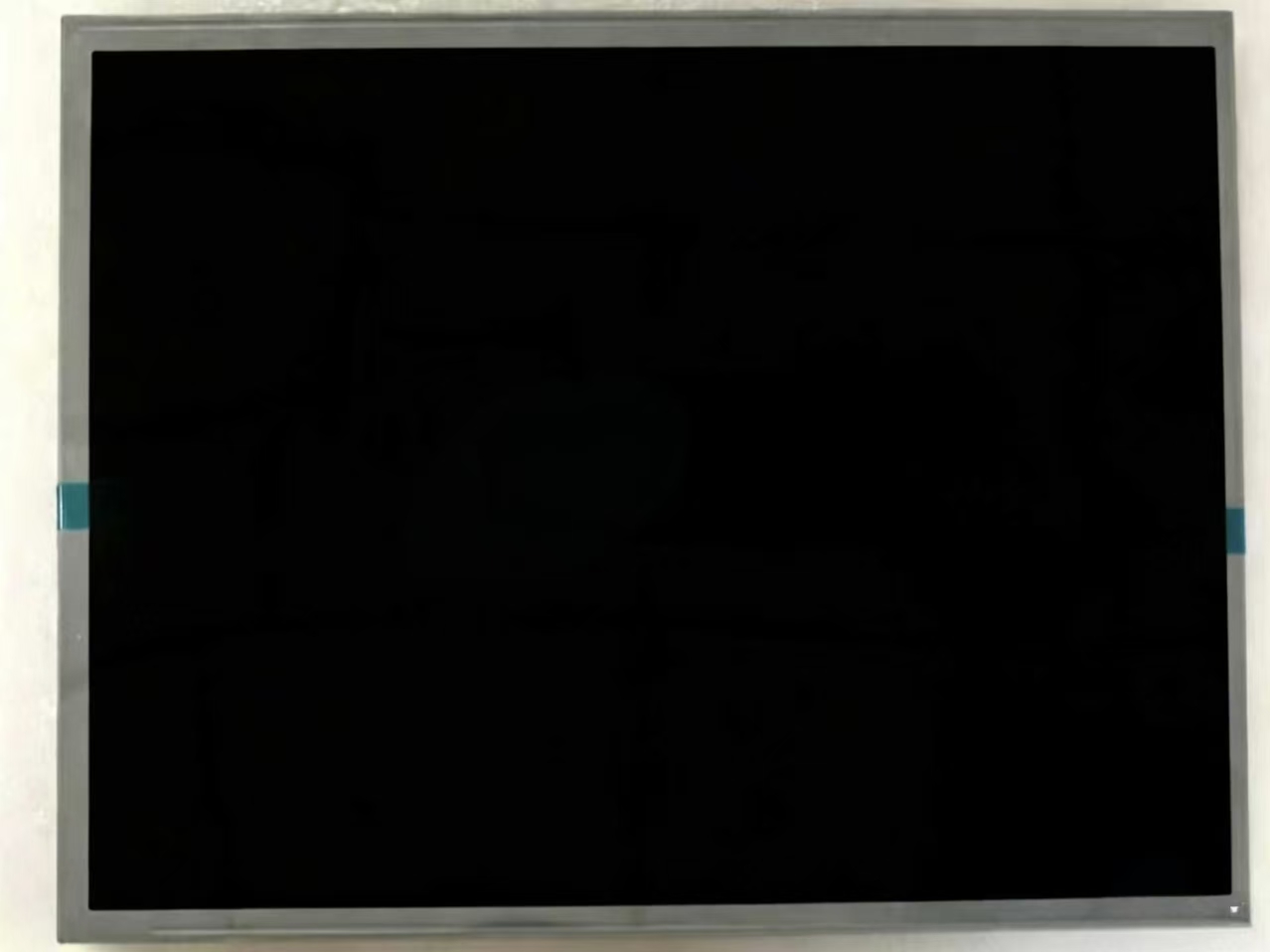

Kyocera TCG121XGLPBPNN-AN40-S is a 12.1-inch a-Si high brightness industrial TFT-LCD display module equipped with a WLED backlight. It includes an LED backlight driver but does not feature touch functionality. For the backlight system, TCG121XGLPBPNN-AN40-S adopts a side WLED backlight with a service life of 60K hours. Kyocera TCG121XGLPBPNN-AN40-S features an LVDS (1 channel, 6/8-bit) signal interface with a total of 20 pins, connected via connectors. The typical display driving voltage is 3.3V (Typ.). Its typical vertical refresh rate (Fv) is 80 Hz.
Kyocera TCG121XGLPBPNN-AN40-S 12.1-inch industrial LCD display is a versatile, all-purpose industrial display solution. It is widely applied in various fields. Industrial applications include all-in-one industrial displays, CNC machine HMI panels and factory monitoring screens. It also fits outdoor devices such as self-service terminal displays, outdoor advertising screens and outdoor instrument displays, as well as medical equipment such as patient monitor displays and medical analyzer screens.
1. High Brightness up to 1200 nits
Equipped with ultra-high brightness of 1200 nits, Kyocera TCG121XGLPBPNN-AN40-S remains clear and vivid even in bright light and direct sunlight. It effectively avoids screen whitening and blurred display, perfectly adapts to outdoor equipment, engineering machinery and other high-light usage scenarios, and ensures stable and readable screen content in harsh bright environments.
2. Wide Operating Temperature Range
The operating temperature of Kyocera TCG121XGLPBPNN-AN40-S ranges from -30°C to 80°C. Suitable for operation in the vast majority of device environments, eliminating concerns regarding frequent temperature fluctuations or extreme temperature conditions.
3. Integrated LED Driver Board + 50,000-Hour Backlight Lifespan
The integrated driver board eliminates the need for an external driver power supply, simplifying the overall structure, reducing potential failure points, and minimizing installation space. The absence of an external driver design saves on BOM costs and PCB space. With an ultra-long backlight lifespan of 50,000 hours, it is durable enough for 24/7 continuous industrial operation.
4. High Contrast Ratio of 750:1
Clear details in dark areas and no whiting in bright areas ensure text and icons remain visible in both brightly lit workshops and dimly lit server rooms. Reduces eye strain during prolonged viewing, enhancing operational efficiency.
5. Industrial-Standard LVDS Interface
The LVDS interface(1ch,6/8-bit) with a 20-pin connector offers: stable long-distance signal transmission, strong anti-interference capabilities, and broad compatibility with industrial controllers, and embedded PCs.
The basic parameters of TCG121XGLPBPNN-AN40-S are listed in the table below for your reference.
Signal Electrical
Current Input
300/390mA(Typ./Max.)
Voltage Input
3.3V (Typ.)
Consumption
---
Signal System
LVDS (1 ch, 6/8-bit)
Interface Features
Position
Type
Connector
Connector Detail
Brand
Model
Amount
Pin Pitch
Pins
I-PEX
20186-020E-11F
1pcs
1.25 mm
20 pins
Backlight Features
Lamp Type
WLED
Replacement
Edge Light type
Lamp Shape
Life Time
60K (Typ.) hours
Interface Details
JST
SM06B-SHLS-G-TF(LF)(SN)
6pins
1mm
Driver Electrical
with LED Driver
0.9/1.1A (Typ./Max.)
12.0±1.2V
Basic Information
Brightness (cd/m2)
1200
Contrast Ratio
750:1 (Transmission)
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Optical Mode
AWV,Normally black display, TM
Visual Angle Direction
Full-view
Response Time
18/12 (Typ.) (Tr/Td) ms
Color Performance
Chromaticity
Wx:0.320; Wy:0.345
Color Numbers
262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature
6043K
Uniformity
1931 Color Gamut
NTSC Ratio
51%
sRGB
71%
Adobe RGB
53%
DCI-P3
REC.2020
38%
REmarks
As a leading China supplier of industrial TFT LCD display module solutions, Zhengzhou Hengxinda Technology Co,. Ltd specializes in the R&D and production of TFT LCD display products with high performance, outstanding cost-effectiveness and reliable quality. And we can also offer tailor-made LCD TFT display solutions according to your personalized needs. Whether you are exploring new LCD TFT display solutions or looking to establish a long-term and stable supply partnership, our team is ready to provide you with free professional consulting, the latest product information, and free quotation support with strong market competitiveness.
Why Choose Hengxinda Industrial LCD Panel?
• Competitive Price: All industrial LCD Panel we offer are from original factory. We are a professional supplier of top-tier industrial LCD screens from leading manufacturers such as AUO, Chimei Innolux, BOE, IVO, Sharp, and Kyocera. We source directly from the origin, providing only original industrial LCD screens in original factory packaging.
• One-stop Shopping: In addition to fully custom LCD display modules, we also provide supporting LCD control boards, custom cables and custom touch screen solutions — all products can be purchased together.
• Customization Flexibility: Product dimensions, touch screen types and control board options can all be customized to meet the specific needs of your projects.
• Secure After-Sales Service: We offer a 1-year official warranty. For industrial LCD panels with non-human damage within the warranty period, free replacement or repair is provided.
Original-packaged LCD panels, competitive prices, one-stop services. Feel free to consult us for more details!
Q1: Are your touch screen displays reliable?
A: The TFT LCD panels we use are brand new and original. All products undergo strict testing before shipment. Our TFT LCD screens have been applied to numerous projects and can operate steadily for long-term use. You can rest assured about product quality.
Q2: Does Kyocera TCG121XGLPBPNN-AN40-S support touch function?
A: TCG121XGLPBPNN-AN40-S does not come with touch function. We can offer customized touch screen solutions as required. Available types include resistive touch screens featuring low cost, strong anti-interference and glove/stylus support, and capacitive touch screens with high light transmittance, multi-touch and smooth operation. Full bonding and frame bonding techniques are optional.
Q3: What are your prices like?
A: Our prices are in the lower-to-mid range within the industry because we source directly from leading industrial LCD panel manufacturers, allowing us to offer highly competitive pricing. Additionally, the price of industrial LCD panels is determined by their production status and market inventory levels. If you have a specific panel model in mind, please feel free to contact us for a free datasheet and detailed quotation.
Q4: How long is your lead time?
A: Gernally, products in stock can be delivered within one week. For mass production orders, delivery takes two to three weeks after order confirmation. For customized products, the lead time will be re-evaluated accordingly.
Q5: Does Kyocera TCG121XGLPBPNN-AN40-S come with warranty?
A: Yes. All standard products enjoy a 12-month quality warranty starting from the date of receipt. The warranty covers non-artificial manufacturing defects.
