Wide temperature range, 600 nits high brightness, white LED backlight, lifespan greater than 70,000 hours, includes LED driver, optional 6-bit / 8-bit grayscale, matte surface.

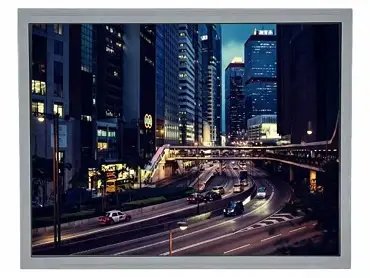

Kyocera TCG104XGLPAPNN-AN30 is a 10.4-inch wide temperature longlife LCD display module that applies a-Si TFT-LCD technology. It is equipped with WLED backlight and integrated LED backlight driver, but without touch function. The operating temperature ranges from -30°C to 80°C, and the storage temperature ranges from -30°C to 80°C. TCG104XGLPAPNN-AN30 has a display resolution of 1024 (RGB) × 768 (XGA), an aspect ratio of 4:3 (width:height), and uses a vertical RGB pixel arrangement. For backlight, TCG104XGLPAPNN-AN30 adopts a side WLED backlight with a service life of 70K hours. TCG104XGLPAPNN-AN30 features an LVDS (1 channel, 6/8-bit) signal interface with a total of 20 pins, connected via connectors. The typical display driving voltage is 3.3V (Typ.). Kyocera TCG104XGLPAPNN-AN30 is widely used in industrial control devices, in-vehicle display panels, medical inspection devices, and equipment used in semi-outdoor scenarios . The basic parameters of Kyocera TCG104XGLPAPNN-AN30 are in the following table:
Custom Cables We support custom cable services for various industrial TFT LCD display modules, including signal cables for LVDS, eDP, TTL, and more. You can freely customize cable length, connector type, pin assignment, and other specifications according to your device structure. Proper cable design not only optimizes internal wiring and enhances anti-interference capability, but also reduces assembly complexity and improves production efficiency. Whether for sample testing or mass production, we offer fast response to meet your structural requirements.
Touch Panel
Both resistive touch and capacitive touch can be customized according to your needs. Resistive touch supports operation with gloves and styluses, features strong anti-interference, oil resistance and lower cost. Capacitive touch supports multi-touch, with sensitive response, smooth operation and longer service life.If you have specific application scenarios and requirements, please feel free to contact us, and we will recommend the most suitable solution for you. Touch screen bonding is a process that tightly bonds the touch screen to the TFT LCD panel, which directly determines display effect, touch accuracy, reliability, and product lifespan. Frame bonding features low cost, simple process and high yield rate, while full bonding delivers more transparent display, better sunlight visibility and stronger structural rigidity. Our bonding factory maintains strict requirements on process, production environment and materials to ensure high stability.
Q1: Can Kyocera TCG104XGLPAPNN-AN30 be used outdoors?
A: Kyocera TCG104XGLPAPNN-AN30 features a brightness of 600 nits. It is applicable for indoor use or shaded outdoor environments, but it is not designed for use in direct sunlight. If you need higher brightness displays, please feel free to contact us and we will recommend suitable LCD screen models for you.
Q2: How about Kyocera TCG104XGLPAPNN-AN30 price?
A: Prices vary based on your specifications. Quality and stability are our top priorities. Our prices are mid-range in the industry, and we offer more competitive pricing for the same level of quality. For details, please contact us!
Q3: Does Kyocera TCG104XGLPAPNN-AN30 have built-in touch functionality?
A: No. Kyocera TCG104XGLPAPNN-AN30 is a pure LCD display module. If touch functionality is required, an additional touch screen needs to be configured. We offer matching resistive and capacitive touch screens, and also provide LCD panel/touch panel bonding services. Please contact our sales manager for details.
Q4: How long is your lead time?
A: Gernally, products in stock can be delivered within one week. For mass production orders, delivery takes two to three weeks after order confirmation. For customized products, the lead time will be re-evaluated accordingly.
Q5: Do you have MOQ requirements?
A: We have no MOQ for samples. However, for the second or third order of the same model, we require a MOQ of 50 pieces per order.
