TCG104VGLABANN-AN50

800 Nits High Brightness; White LED Backlight; Lifetime ≥ 70K Hours; Up/Down/Left/Right Flip Display; Matte Surface.

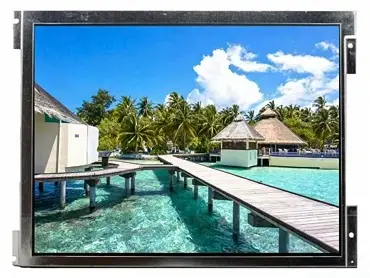

800 Nits High Brightness Industrial TFT LCD Panel Kyocera TCG104VGLABANN-AN50

Kyocera TCG104VGLABANN-AN50 is a 10.4-inch LCD display module that applies a-Si TFT-LCD technology. It is equipped with WLED backlight, but without backlight driver and touch function. In terms of backlight, TCG104VGLABANN-AN50 adopts a side 3-strings WLED backlight with a lifespan of 70K hours. TCG104VGLABANN-AN50 features a Parallel RGB (1 channel, 6-bit) signal interface with a total of 40 pins, connected via connectors. The typical display driving voltage is 3.3V (Typ./Max.). TCG104VGLABANN-AN50 features an operating temperature range of -20°C to 70°C and a storage temperature range of -30°C to 80°C. Kyocera TCG104VGLABANN-AN50 is widely used in industrial control fields such as industrial HMI control panels and numerical control equipment screens. It is also ideal for high-brightness outdoor and semi-outdoor scenarios including outdoor self-service terminals and outdoor monitoring displays. Besides, it is applicable to medical monitors, medical equipment operation panels and other professional devices. The basic parameters of Kyocera TCG104VGLABANN-AN50 are listed in the table below.

Panel Brand	Kyocera	Panel Model	TCG104VGLABANN-AN50
Panel Size	10.4 inches	Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)x480,VGA,76PPI	Pixel Layout	RGB vertical stripes
Active Area	211.2(W)x158.4(H)mm	Outline Dimension	240.7(W)x180.2(H)x9.5(D)mm
Viewable Area	215.4(W)x162.2(H)mm	Surface Treatment	Matte
Brightness (cd/m²)	800(Typ.)	Contrast Ratio	500:1(Typ.)[Transmission]
Viewing Direction	6 o'clock	Optical Mode	TN, normally white display, transmissive
Viewing Angle	70/70/60/70(Typ.)(CR≥10)	Response Time	10/20(Typ.)(Tr/Td) ms
Display Colors	262K,48% NTSC	Backlight Type	3 strings WLED, 70K hours, no driver
Screen Weight	470g	Application	Industrial, outdoor high brightness
Operating Rate	60Hz	Touch Function	No
Interface	Parallel RGB(1 ch,6-bit), connector, 40 pins
Operating Voltage	3.3V(Typ./Max.)
Operating Environment	Storage temperature:-30~80℃ Operating temperature:-20~70℃

Kyocera TCG104VGLABANN-AN50 Matching Accessories

Custom Cables

We support custom cable services for various industrial TFT LCD display modules, including signal cables for LVDS, eDP, TTL, and more. You can freely customize cable length, connector type, pin assignment, and other specifications according to your device structure. Proper cable design not only optimizes internal wiring and enhances anti-interference capability, but also reduces assembly complexity and improves production efficiency. Whether for sample testing or mass production, we offer fast response to meet your structural requirements.

LCD Controller Board/LCD Driver Board
We provide comprehensive driver solutions for industrial TFT LCD panels, covering adapter boards and driver boards for common interfaces such as LVDS, eDP, MIPI, VGA, and HDMI. Whether you are using a standard LCD panel or a special specification LCD panel, we can help you quickly achieve signal conversion and screen brightness, significantly shortening your development cycle. In addition, if you have functional customization requirements for the driver board—such as OSD menu, wide voltage input, or temperature protection—please feel free to contact us. Our technical team will fully cooperate to develop the most suitable driver solution tailored to your needs.

Touch Panel

We offer three major types of touch panels: resistive touch panel, capacitive touch panel, and infrared touch panel, covering a wide range of applications including industrial control, medical equipment, automotive displays, and self-service terminals. Based on your operating environment, accuracy requirements, and cost budget, you can flexibly choose the touch solution that best fits your device. Additionally, we support professional touch panel bonding services, including both frame bonding and air bonding. These processes effectively improve optical performance, dust resistance, and shock resistance, making your device more competitive in the market.

Why Choose Us?

Zhengzhou hengxinda Technology Co., Ltd mainly provides industrial LCD screen for 15 years, and our products are industrial LCD panel from top LCD panel manufacturer including AUO/Innolux Chimei/BOE/Sharp/IVO/Kyocera etc., wide temperature LCD panel, high brightness display panel, long-life LCD panel, and automotive display panel. We also offer matching accessories including capacitive touch screen, resistive touch panel, infrared touch panel and custom LVDS/eDP/MIPI cable. We provide custom industrial display solutions for you according to the application of your devices. Welcome to contact us for any industrial LCD panel, give you detailed quotation, datasheet and specifications!

Provide a full one-stop solution including LCD screen, driver board, touch panel and all connecting cables. Feel free to contact us for inquiries.

FAQs

Q1: Are your TFT LCD displays reliable?

A: The TFT LCD panels we use are brand new and original. All products undergo strict testing before shipment. Our TFT LCD panels have been deployed in numerous projects and have been operating stably over time. You can rest assured of their quality.

Q2: Do you provide accessories that match Kyocera TCG104VGLABANN-AN50?

A: Of course. We provide LCD driver boards, touch screens, and related cables that match Kyocera TCG104VGLABANN-AN50. If you want to purchase a 10.4-inch industrial touch display all-in-one machine, we can assemble and provide it for you.

Q3: Do you have customized display solutions?

A: Of course. If you have special requirements, please contact us. We will recommend suitable TFT LCD panels and related customized display solutions based on your needs.

Q4: What is the warranty period for Kyocera TCG104VGLABANN-AN50?

A: The standard warranty period is 12 months from the date of shipment. During this warranty period, we will provide free replacement or repair services for any quality issues resulting from manufacturing defects (excluding damage caused by human error or improper use).

Q5: Do you have MOQ requirements?

A: We have no MOQ for samples. However, for the second or third order of the same model, we require a MOQ of 50 pieces per order.

Related Products

Brand	Model Name	Size	Resolution	Brightness	Contrast Ratio	Backlight Type	Interface	pins	Operation Temperature
BOE	ET104S0M-N15	10.4"	800×600	350 nits	800:1	WLED	LVDS	20	-20~70℃
BOE	GV104X0M-N10	10.4"	1024×768	450 nits	1100:1	WLED	LVDS	30	-30~85 ° C
BOE	BA104S01-300	10.4"	800×600	350 nits	800:1	WLED	LVDS	20	-20~70 °C
BOE	BA104S01-200	10.4"	800×600	300 nits	800:1	WLED	LVDS	20	-20~70 ° C
Tianma	P1040SVF1ME00	10.4"	800×600	400 nits	1200:1	WLED	LVDS	20	-20~70 ° C
Tianma	P1040VGF1MA00	10.4"	640×480	900 nits	1000:1	WLED	CMOS	40	-30~80 ° C
Tianma	P1040XGF1MB01	10.4"	1024×768	500 nits	1200:1	WLED	LVDS	20	-20~70 ° C
Tianma	P1040XGF1MA00	10.4"	1024×768	1300 nits	1000:1	WLED	LVDS	20	-30~80 ° C
Tianma	P1040VGF1MB00	10.4"	640×480	450 nits	1000:1	WLED	Parallel RGB	40	-30~80 ° C
AUO	G104STN01.3	10.4"	800×600	450 nits	700:1	WLED	LVDS	20	-20 ~70 °C
AUO	G104VAN02.0	10.4"	640×480	450 nits	1000:1	WLED	TTL	31	-20 ~70 °C
AUO	G104VAN01.0	10.4"	640×480	450 nits	1000:1	WLED	LVDS	20	-30 ~85 °C
AUO	G104STN01.6	10.4"	800×600	700 nits	800:1	WLED	LVDS	20	-30 ~80 °C
