White LED backlight with a lifespan exceeding 100,000 hours, integrated LED driver, with 4-wire resistive touch screen, matte surface.

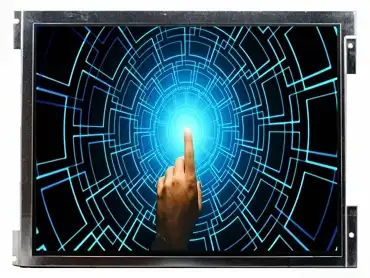

Kyocera TCG104SVLPAAFA-AA20 is a 10.4-inch LCD panel module that applies a-Si TFT-LCD technology. It is equipped with WLED backlight and integrated LED backlight driver, with 4-wire resistive touch screen. The operating temperature ranges from -20°C to 70°C, and the storage temperature ranges from -30°C to 80°C. In terms of backlight, TCG104SVLPAAFA-AA20 adopts a side WLED backlight with a lifespan of 100K hours. TCG104SVLPAAFA-AA20 features an LVDS (1 channel, 8-bit) signal interface with a total of 30 pins, connected via connectors. The typical display driving voltage is 3.3V (Typ.).
Kyocera TCG104SVLPAAFA-AA20 features industrial-grade stability and a long service life, and comes with built-in touch function. It is widely used in industrial equipment such as industrial HMI panels, CNC machine control panels; in automotive applications such as vehicle central control screens, in-vehicle display panels; and in medical equipment such as medical diagnostic instrument displays and small medical control screens. The basic parameters of TCG104SVLPAAFA-AA20 are shown in the table below.
Backlight Features
Lamp Type
WLED
Replacement
---
Position
Edge Light type
Amount
Lamp Shape
Life Time
100K (Typ.) hours
Interface Features
Type
Included in the screen signal interface
Driver Electrical
with LED Driver
Current Input
290/450mA (Typ./Max.)
Voltage Input
12.0V (Typ.)
Basic Information
Brightness (cd/m2)
360
Contrast Ratio
500:1 (Transmission)
Viewing Angle
80/80/80/60 (Typ.)(CR≥10)
Optical Mode
TN,Normally white display, TM
Visual Angle Direction
6 o'clock
Response Time
8/22 (Typ.) (Tr/Td) ms
Color Performance
Chromaticity
Wx:0.300; Wy:0.315
Color Numbers
16.7M (8-bit)
Color Temperature
7435K
Uniformity
1.43 (Max.)(5 points)
1931 Color Gamut
NTSC Ratio
51%
sRGB
71%
Adobe RGB
53%
DCI-P3
REC.2020
38%
REmarks
