TCG104SVLBKANN-AN20

White LED backlight, lifespan over 70,000 hours, includes LED driver, matte surface.

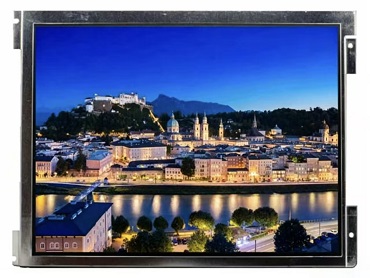

Longlife Industrial TFT LCD Display Kyocera TCG104SVLBKANN-AN20

TCG104SVLBKANN-AN20 from Kyocera is a 10.4-inch LCD panel module that applies a-Si TFT-LCD technology. It is equipped with WLED backlight and integrated LED backlight driver, but without touch function. The operating temperature ranges from -20°C to 70°C, and the storage temperature ranges from -30°C to 80°C. In terms of backlight, TCG104SVLBKANN-AN20 adopts a side WLED backlight with a service life of 70K hours. Kyocera TCG104SVLBKANN-AN20 features an LVDS (1 channel, 8-bit) signal interface with a total of 30 pins, connected via connectors. The typical display driving voltage is 3.3V (Typ.).

TCG104SVLBKANN-AN20 is applied in a variety of scenarios. In industrial control, it is used for industrial HMI display panels and CNC machine display screens. In medical equipment, it applies to medical monitoring device displays and detection analyzer displays. For vehicle-mounted equipment, it is suitable for automotive instrument displays and central control displays. It can adapt to harsh operating environments. The basic parameters of Kyocera TCG104SVLBKANN-AN20 are in the following table.

Panel Brand	Kyocera	Panel Model	TCG104SVLBKANN-AN20
Panel Size	10.4 inches	Panel Type	a-Si TFT-LCD, LCD module
Resolution	800(RGB)x600, SVGA, 96PPI	Pixel Layout	RGB vertical stripe
Active Area	211.2(W)x158.4(H)mm	Outline Dimension	240.7(W)x181.4(H)x9.94(D)mm
Viewable Area	215.4(W)x162.2(H)mm	Surface Treatment	Matte
Brightness	350 cd/m²(Typ.)	Contrast Ratio	900:1(Typ.)(Transmission)
Viewing Direction	-	Response Time	5/15(Typ.)(Tr/Td) ms
Viewing Angle	80/80/60/80(Typ.)(CR≥10)	Optical Mode	TN, Normally White Display, Transmission Type
Display Colors	16.7M, 53% NTSC	Backlight Type	WLED, 70K hours, including LED driver
Weight	390g(Typ.)	Application Product	Industrial
Operating Rate	60Hz	Touch Function	No
Interface	30 pins LVDS(1ch,8-bit), connector
Operating Voltage	3.3V(Typ.)
Operating Environment	Operating temperature: -20~70℃; Storage temperature: -30~80℃

✅️In stock & ready to ship. Best price available. Request a quote now!

Your Reliable Partner for Industrial TFT LCD Display

Zhengzhou hengxinda Technology Co., Ltd mainly provides industrial LCD screen for 15 years, and our products are industrial LCD panel from top LCD panel manufacturer including AUO/Innolux Chimei/BOE/Sharp/IVO/Kyocera etc., wide temperature LCD panel, high brightness display panel, long-life LCD panel, and automotive display panel. We also offer matching accessories including capacitive touch screen, resistive touch panel, infrared touch panel and custom LVDS/eDP/MIPI cable. We provide custom industrial display solutions for you according to the application of your devices. Welcome to contact us for any industrial LCD panel, give you detailed quotation, datasheet and specifications!

Give you best Price, enjoy custom touch panel screen and buy LCD panel screen Now! ️ Welcome to contact us for more information you need! Click it →↓

FAQs

Q1: Are the industrial TFT LCD display modules you provide reliable?

A: We only supply brand-new original LCD panels. All products undergo strict testing before shipment. The touch screens we adopt are sourced from well-known manufacturers, and all selected products are fully validated with proven reliability. Our bonding factory maintains strict standards for craftsmanship, production environment and raw materials.

Q2: Does TCG104SVLBKANN-AN20 support touch functionality?

A: TCG104SVLBKANN-AN20 is a non-touch LCD display module. If touch functionality is required, please contact us to select and integrate an external resistive, capacitive, or infrared touch screen solution.

Q3: Can you provide technical solution support?

A: Certainly. We offer full-process technical support, including LCD display selection, interface matching, custom driver board development and initial debugging guidance, helping you shorten your development cycle.

Q4: How long is your lead time?

A: Gernally, products in stock can be delivered within one week. For mass production orders, delivery takes two to three weeks after order confirmation. For customized products, the lead time will be re-evaluated accordingly.

Q5: Does Kyocera TCG104SVLBKANN-AN20 come with a warranty?

A: Yes. We offer a 12-month quality warranty for all standard products, effective from the date of delivery. The warranty covers manufacturing defects caused by non-human damage.
