TCG084SVLQAPNN-AN20-S

White LED backlight, lifespan over 50,000 hours, with LED driver, 6/8-bit grayscale optional, matte surface.

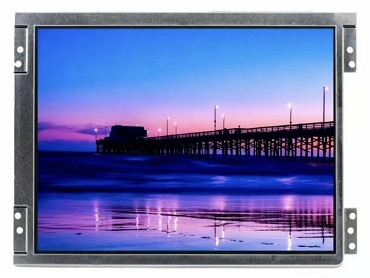

Industrial Control Device TFT LCD Display Kyocera TCG084SVLQAPNN-AN20-S

Kyocera TCG084SVLQAPNN-AN20-S is an 8.4-inch LCD display module adopting a-Si TFT-LCD technology. It is equipped with WLED backlight and integrated LED backlight driver, but without touch function. It features an operating temperature range of -20°C to 70°C and a storage temperature range of -30°C to 80°C. Kyocera TCG084SVLQAPNN-AN20-S adopts a side WLED light source with a lifespan of 50K hours. TCG084SVLQAPNN-AN20-S uses an LVDS (1 ch, 6/8-bit) signal interface with a total of 30 pins, connected via connectors. The typical panel driving voltage is 3.3V (Typ.). Its typical vertical refresh rate is 70Hz. TCG084SVLQAPNN-AN20-S is widely applied in industrial equipment, vehicle-mounted displays, instruments and meters, and other scenarios. Typical applications include industrial HMI displays, CNC machine display panels, vehicle-mounted terminal displays, and industrial testing instrument displays. It is capable of long-term stable operation. The basic specifications of TCG084SVLQAPNN-AN20-S are listed in the table below.

Panel Brand	Kyocera	Panel Model	TCG084SVLQAPNN-AN20-S
Panel Size	8.4 inches	Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)x600, SVGA, 119PPI	Pixel Layout	RGB vertical stripe
Active Area	170.4(W)x127.8(H)mm	Outline Dimension	199.5(W)x147.4(H)x9.5(D)mm
Viewable Area	174.4(W)x131.8(H)mm	Surface Treatment	Matte
Brightness	400 cd/m²(Typ.)	Contrast Ratio	500:1(Typ.)(Transmissive)
Viewing Direction	Full View	Response Time	18/12(Typ.)(Tr/Td) ms
Viewing Angle	85/85/85/85(Typ.)(CR≥10)	Optical Mode	AWV, Normally Black Display, Transmissive
Display Colors	262K/16.7M, 50% NTSC	Backlight Type	WLED, 50K hours, including LED driver
Weight	315g	Application	Industrial
Operating Rate	70Hz	Touch Function	No
Interface	30 pins LVDS(1ch,6/8-bit), connector
Operating Voltage	3.3V(Typ.)
Operating Environment	Operating temperature: -20~70℃; Storage temperature: -30~80℃

Why Partner with Hengxinda ?

As a leading China supplier of industrial TFT LCD display module solutions, Zhengzhou Hengxinda Technology Co., Ltd specializes in the R&D and production of LCD TFT panel products with high performance, outstanding cost-effectiveness and reliable quality. And we can also offer tailor-made LCD TFT display solutions according to your personalized needs. Whether you are exploring new LCD TFT display solutions or looking to establish a long-term and stable supply partnership, our team is ready to provide you with free professional consulting, the latest product information, and free quotation support with strong market competitiveness.

Why Choose HXD LCD?

• One-stop Shopping: In addition to fully custom LCD display modules, we also provide supporting control boards, digital cables and touch screen solutions — all products can be purchased together.

• Customization Flexibility: Product dimensions, touch screen types and control board options can all be customized to meet the specific needs of your projects.

• Secure After-Sales Service: We offer a 1-year official warranty. For screens with non-human damage within the warranty period, free replacement or repair is provided.

Provide full-process customization service. Contact us for your requirements right now!

FAQs

Q1: Is Kyocera TCG084SVLQAPNN-AN20-S in stock?

A: All our currently listed products have a certain amount in stock. However, the quantity is limited. You can send an inquiry to contact us to inquire about the panel quantity.

Q2: What is the price of Kyocera TCG084SVLQAPNN-AN20-S?

A: We source directly from the original factory, offering the same quality at a better price. The same price also comes with better service. However, the price of the LCD panel will fluctuate depending on its production status. If you would like a free quote, please contact us to request a detailed price list.

Q3: Do you provide accessories that match Kyocera TCG084SVLQAPNN-AN20-S?

A: Of course. We provide touch screens and related cables that match the Kyocera TCG084SVLQAPNN-AN20-S. If you want to purchase an 8.4-inch industrial touch display all-in-one machine, we can assemble and provide it for you.

Q4: How can I buy Kyocera TCG084SVLQAPNN-AN20-S?

A: Fill out the form below and send it, or click the contact information in the right navigation bar. We will contact you within 8 hours after receiving your message and provide you with a free specification sheet and quotation.

Q5. How long is your delivery cycle?

A: Generally, for products in stock, delivery can be made within one week. If reproduction is required, delivery can be made within two to three weeks after order confirmation. If customization is involved, the delivery time will need to be reassessed.
