800 nits high-brightness, wide temperature range, white LED backlight, lifespan greater than 100,000 hours, , mirror surface.

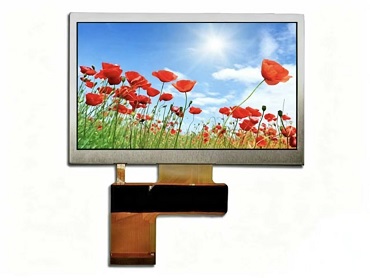

Kyocera TCG043WQLBAANN-GN50 is a 4.3-inch 800 nits high-brightness longlife LCD panel module that applys a-Si TFT-LCD technology. It is equipped with WLED backlight but without backlight driver and touch function. It features an operating temperature range of -20 ~ 70°C and a storage temperature range of -30 ~ 80°C. For backlighting, Kyocera TCG043WQLBAANN-GN50 uses a side WLED light source with a service life of 100,000 hours. Kyocera TCG043WQLBAANN-GN50 adopts a Parallel RGB (1 ch, 8-bit) signal interface with a total of 40 pins, connected via FPC. The typical driving voltage is 3.3V (Typ.).Kyocera TCG043WQLBAANN-GN50 is widely utilized in industrial control equipment, in-vehicle display systems, medical devices, rail transit equipment, and similar applications. The basic parameters of Kyocera TCG043WQLBAANN-GN50 are in the following table.
As a leading China supplier of industrial TFT LCD display module solutions, Zhengzhou Hengxinda Technology Co,. Ltd specializes in the R&D and production of LCD TFT panel products with high performance, outstanding cost-effectiveness and reliable quality. And we can also offer tailor-made LCD TFT display solutions according to your personalized needs. Whether you are exploring new LCD TFT display solutions or looking to establish a long-term and stable supply partnership, our team is ready to provide you with free professional consulting, the latest product information, and free quotation support with strong market competitiveness.
• Reliable Supplier: We provide original Grade A LCD screens from top brands such as AUO, Sharp, Tianma, BOE and Innolux, with stable supply and guaranteed quality.
Q1: What are the core differences between the long-life features of Kyocera TCG043WQLBAANN-GN50 and ordinary LCD panels?
A: Kyocera long-life TFT LCD display adopts industrial-grade long-life backlight and optimized circuit design.Backlight lifespan up to 100,000 hours, much higher than ordinary civilian screens (30,000–50,000 hours), suitable for 24-hour long-term continuous operation.
Q2: Do you provide accessories that match Kyocera TCG043WQLBAANN-GN50?
A: Of course. We provide LCD driver boards, touch screens, and related cables that match Kyocera TCG043WQLBAANN-GN50. If you want to purchase a 4.3-inch industrial touch display all-in-one machine, we can assemble and provide it for you.
Q3: Do you have customized display solutions?
A: Of course. If you have special requirements, please contact us. We will recommend suitable TFT LCD panels and related customized display solutions based on your needs.
Q4: Do you have a minimum order quantity for your products?
A: Regarding samples, there is no MOQ requirement. For repeated purchases of the same product (second or third order), we apply a minimum order quantity, normally 50 pieces per order.
Q5: Does Kyocera TCG043WQLBAANN-GN50 come with a warranty?
A: Yes. We offer a 12-month quality warranty for all standard products, effective from the date of delivery. The warranty covers manufacturing defects caused by non-human damage.
