On-cell touch , WLED backlighting, with LED driver, matte surface, eDP1.2.

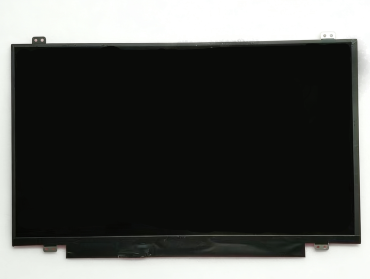

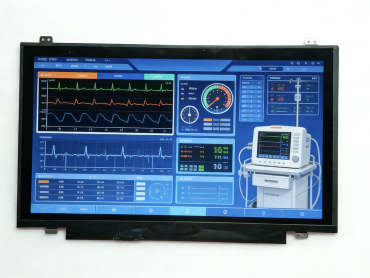

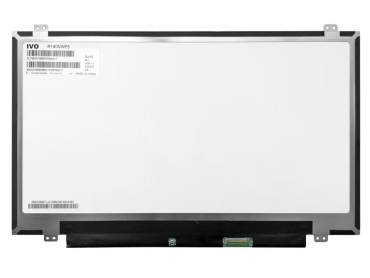

IVO R140NW5F R6 is a 14.0-inch a-Si TFT-LCD display panel: On-cell touch technology integrates the screen and the touch layer, helping you save the installation cost and failure risk of additional touch screens; combined with IPS optical mode+full-angle display, whether for side operation of industrial equipment or multi-directional data viewing in medical scenarios, the picture will be clear; and the 3.2mm thin screen+matte hard coating treatment can resist daily scratches and glare interference, allowing the device to maintain clear display for a long time. These designs help you reduce costs and improve the experience.
Signal Electrical
Current Input
0.31A (Max.)
Voltage Input
3.3V (Typ.)
Consumption
0.92W (Max.)
Signal System
eDP (2 Lanes), eDP1.2
Interface Features
Position
Back
Type
Connector
Connector Detail
Brand
Model
Amount
Pin Pitch
Pins
I-PEX
20525-040E-02
1pcs
0.4 mm
40 pins
Electrocardiogram monitor display, blood analyzer display module, operating screen of the operating room anesthesia machine, control terminal of rehabilitation equipment etc. Full-angle display enables healthcare professionals to view patient data from multiple perspectives, avoiding missing critical signs; On-Cell touch operation is precise, reducing the risk of accidental touch on medical equipment, and facilitating a smoother diagnosis and treatment process.
Bank self-service card issuance machine screen, government comprehensive service terminal, airport self-check-in screen, university self-payment terminal etc. On-Cell touch operation is smooth, shortening the time for users to handle business; matte anti-glare + full viewing angle, allowing multiple people to view information clearly, enhancing the experience and efficiency in public service scenarios.
Urban bus dispatch screens, freight vehicle monitoring terminals, subway carriage information screens, taxi intelligent metering terminals etc. Stable temperature performance ranging from 0 to 50℃ is suitable for the complex environment of vehicles, ensuring uninterrupted display during driving; On-Cell touch control makes it easier for drivers/schedulers to operate, improving the efficiency of information processing in transportation operations.
♦ Custom-Matched Driver Boards
We provide industrial-grade driver boards fully compatible with the GV104XM-N10, supporting plug-and-play functionality via LVDS interface. Built-in with industrial-grade chips, these driver boards are suitable for operation within a temperature range of -30°C to 85°C.
♦ Customized Touch Screens
Capacitive touch screens or resistive touch screens in corresponding sizes can be configured according to your device requirements. The resolution and touch accuracy of the touch screens are perfectly matched to the display performance of the LCD TFT display panels.
♦ High-Precision Bonding Technology
We offer Air bonding and Frame bonding services for integrating touch screens with LCD TFT display panels, adopting industrial-grade bonding processes. The bonding tolerance is controlled within ±0.2mm, with additional dust-proof and anti-fog treatment applied.
If you need a customized integrated solution combining LCD display panel, driver board, touch screen and bonding, feel free to contact us. We will provide a tailor-made compatibility plan based on your device parameters and application scenarios!
FAQs: Q: Does R140NWF5 R6 On-Cell touch control support multi-touch?
A: It supports 10-point touch, fully meeting the daily operation needs of industrial operations, medical parameter adjustment, and commercial interactions.
Q: Can matte Hard coating prevent oil stains and chemical reagents? A: Matte surface+3H hard coating can resist daily oil stains and dust, and can withstand mild chemical reagent erosion in industrial/medical scenarios.
Q: Can samples with customized interfaces be provided?
A: Of course. Customization of special interfaces requires confirmation of requirements, and then a small batch sample will be provided. For detailed information, please contact us.
Q: Is the packaging for overseas orders shockproof?
A: All orders are packed with anti-static and shockproof materials. Overseas orders will have an additional reinforcement layer to ensure that the screen is not damaged during transportation.
Q: How is payment for bulk purchases handled?
A: Clients who pay less than $500 for the order need to pay the full amount. Clients who pay more than $1000 can apply for a 50% advance payment + 50% balance payment (to be received before shipment).
