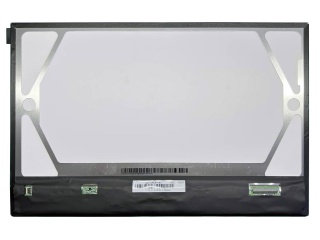

QV101WUM-N80

QV101WUM-N80

Download PDF Send Message

Basic Parameters

Panel Brand	BOE (BOE)	panel model	QV101WUM-N80
Panel size	10.1-inch	panel type	a-Si TFT-LCD, LCD Module
resolution	1920(RGB)x1200,WUXGA, 224PPI	pixel layout	RGB vertical stripes
display area	216.806(W)x135.504(H) mm	Appearance size	229.45(W)x149.22(H) mm
open area		surface treatment	Hard coating
display brightness	300 cd/m² (Typ.)	contrast	900:1(Typ.) (transmission)
Recommended view	full-view	response time	30(Typ.) (Tr+Td) ms
visual Angle	80/80/80/80 (Typ.) (CR≥10)	display mode	ADS, normally black display, transmissive
support color	16.7M,72% NTSC	light source type	WLED [3S14P], no drive
weight		application products	Industrial Healthcare
frame frequency	60Hz	touch technology	touchless
interface type	LVDS(2 ch,8-bit), Terminals
voltage supply	3.3V (Typ.)
application environment	Operating temperature:-20~70 °C; Storage temperature:-30~80 °C

Related Products

Brand	Model Name	Size	Resolution	Brightness	Contrast Ratio	Backlight Type	Interface	pins	Operation Temperature	Download PDF	Add Inquiry
AUO	G101STN01.4	10.1"	1024×600	350 nits	500:1	WLED	LVDS	40	-20 ~70 °C
BOE	BP101WX1-300-3941	10.1"	1280×800	450 nits	900:1	WLED	LVDS	45	-20~65 ℃
BOE	AV101HDT-A10	10.1"	1280×720	950 nits	1000:1	WLED	LVDS	60	-30~85 °C
BOE	AV101HDM-N10-28PC	10.1"	1280×720	1000 nits	1000:1	WLED	LVDS	50	-30~85 ° C
BOE	AV101HDT-L80-28P1	10.1"	1280×720	700 nits	1000:1	WLED	LVDS	60	-30~85 °C
BOE	AV101HDT-A10-28PE	10.1"	1280×720	700 nits	1000:1	WLED	LVDS	60	-30~85°℃
BOE	AV101HDM-N10-28P2	10.1"	1280×720	1000 nits	1000:1	WLED	LVDS	60	-30~85 ° C
BOE	TV101WXM-NP1	10.1"	1280×800	250 nits	800:1	WLED	eDP	30	0~50℃
BOE	TV101WUM-NM0	10.1"	1200×1920	410 nits	900:1	WLED	MIPI	51	-10~60 ° C
AUO	G101UAN01.0	10.1"	1200×1920	380 nits	800:1	WLED	eDP	30	-10 ~60 °C
