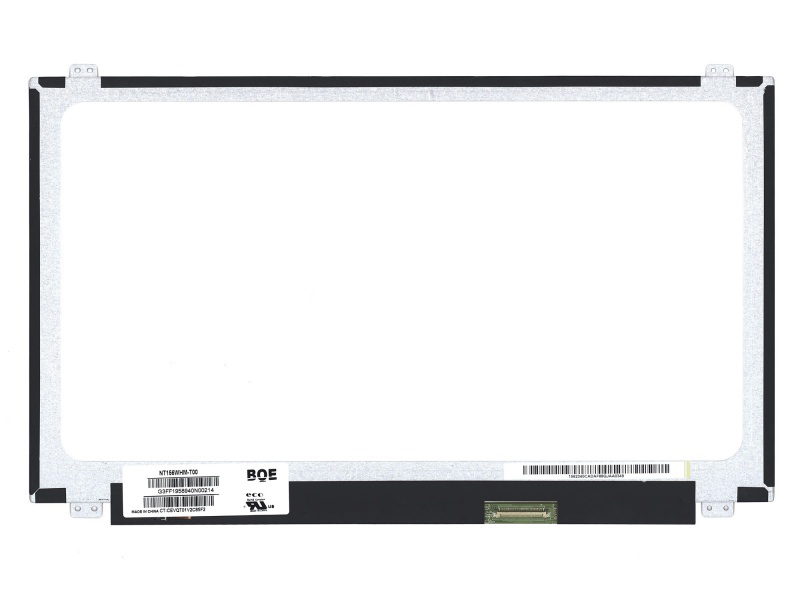

NT156WHM-T00

NT156WHM-T00

Download PDF Send Message

Basic Parameters

Panel Brand	BOE (BOE)	panel model	NT156WHM-T00
Panel size	15.6-inch	panel type	a-Si TFT-LCD,LCD Module
resolution ratio	1366(RGB)×768, WXGA, 100PPI	pixel layout	RGB vertical stripes
display area	344.232(W)×193.536(H) mm	Appearance size	359.5(W)×223.8(H)×3.8(D) mm
Brightness(cd/m²)	200 cd/m² (Typ.)	the contrast	500:1 (Typ.) (TM)
visual Angle	45/45/20/40 (Typ.) (CR≥10)	surface treatment	Hard coating (3H)
number of colors	262K , 45% NTSC	light source type	9S4P WLED , 15K hours, with LED driver
appearance style	Medium thickness (PCBA straight, thickness 3.4~4.0mm)	response time	12 (Typ.) (Tr+Td) ms
viewing direction	6 o'clock	light source type	9S4P WLED , 15K hours, with LED driver
frame frequency	60Hz	used for	laptop
signal interface	eDP (1 Lane) , eDP1.2 , HBR1 (2.7G/lane) , 40 pins , Terminals	touch panel	touchless
driving voltage	3.3V (Typ.)
application environment	Operating temperature: -20 ~70 °C ;Storage temperature: -30 ~80 °C
