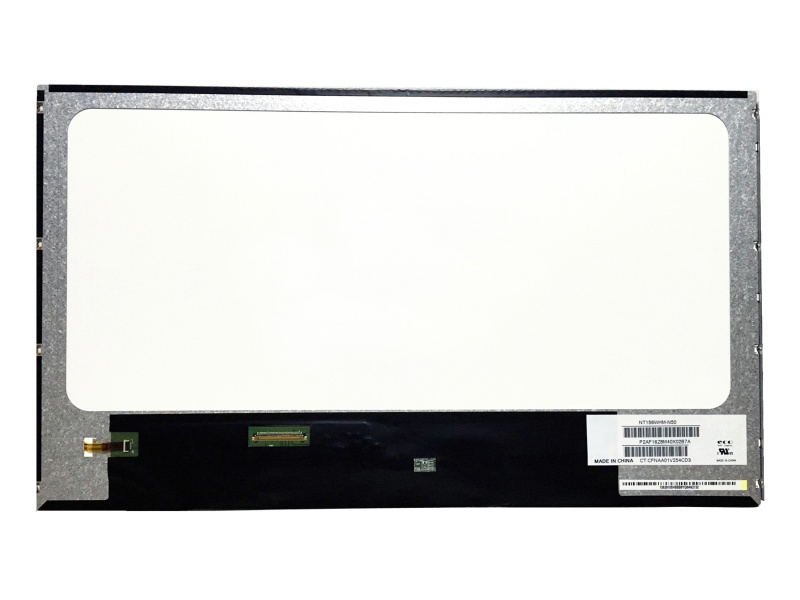

NT156WHM-N50

NT156WHM-N50

Download PDF Send Message

Basic Parameters

Panel Brand	BOE (BOE)	panel model	NT156WHM-N50
Panel size	15.6inch	panel type	a-Si TFT-LCD,LCD Module
resolution ratio	1366(RGB)×768, WXGA, 100PPI	pixel layout	RGB vertical stripes
display area	344.232(W)×193.536(H) mm	Appearance size	359.5(W)×209.54(H)×5.5(D) mm
Brightness(cd/m²)	220 cd/m² (Typ.)	the contrast	500:1 (Typ.) (transmission)
visual Angle	45/45/20/40 (Typ.) (CR≥10)	surface treatment	Mirror (Haze 0%)
number of colors	262K , 45% NTSC	light source type	WLED [9S3P] , 15K hours, with LED driver
recommended angle of view	6 o'clock	response time	12 (Typ.) (Tr+Td) ms
frame frequency	60Hz	display mode	TN, normally white display, transmissive
signal interface	40 pins LVDS (1 ch, 6-bit) , Terminals	be the same with	laptop
driving voltage	3.3V (Typ.)	touch panel	touchless
application environment	Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~60 °C
