Built-in optical bonding PCAP touch screen with 0.7mm cover glass, wide temperature range, 750 nits high brightness, replaceable backlight, white LED backlight, lifespan exceeding 70,000 hours, 180-degree flip display, 6- or 8-level grayscale options (ColorXcell)
NLT NL8060BC21-11KG is an 8.4-inch high-brightness industrial-grade touch display module featuring 800×600 SVGA resolution and 750 cd/m² brightness, combined with a 2H anti-reflective surface treatment for outdoor visibility. It integrates a 16-point projected capacitive touch screen with 0.7mm optical- bonding protective glass, ensuring sensitive touch interaction while providing impact protection and scratch resistance, significantly enhancing the device’s dustproof, waterproof, and shock-resistant capabilities. Its backlight uses a WLED edge-lit design with a typical lifespan of 70K hours and supports easy replacement, effectively extending the device’s overall service life and reducing long-term maintenance costs. The 8.4-inch touch display module NLT NL8060BC21-11KG is widely used in industrial HMI, specialized vehicle-mounted terminals, maritime display equipment, outdoor power measurement and control terminals, portable medical testing instruments, smart warehouse touch screen terminals, and other industrial scenarios with high demands for reliability, outdoor visibility, and touch interaction, it is the ideal industrial LCD display solution for highly reliable outdoor sunlight readable displays.
| Reference Picture | Size | 8.4-inch | Visual Angle | 80/80/80/80 |
| Brand | NLT | Backlight | 4 strings WLED, 70K hours |
| Model | NL8060BC21-11KG | Interface | LVDS (1 ch, 6/8-bit) | |
| Resolution | 800(RGB)×600, SVGA | Operating Temperature | -30 ~ 80 °C | |
| Brightness | 750 cd/m² | Production State | In Production |
Detailed specifications of NLT NL8060BC21-11KG 8.4-inch touch display module are in the following table.
| Parameter | Specification |
| Brand | NLT |
| Model | NL8060BC21-11KG |
| Size | 8.4-inch |
| Resolution | 800(RGB)×600, SVGA |
| Pixel Density | 119 PPI |
| Aspect Ratio | 4:3 |
| Display Technology | TN, Normally White, a-Si TFT LCD |
| Brightness | 750 cd/m² |
| Contrast Ratio | 800:1 |
| Viewing Angle | 80/80/80/80 |
| Response Time | 3/15 (Typ.)(Tr/Td) ms |
| Display Colors | 262K/16.7M, 40% NTSC |
| Color Temperature | 6485K |
| Interface | LVDS (1 ch, 6/8-bit) |
| Connector Type | JST-Purple, SM08B-SRSS-TB |
| Backlight Type | 4 strings WLED |
| Backlight Life | 70K |
| Built-in LED Driver Board | No |
| Touch Function | Yes, Optical Bonding PCAP touch screen |
| Operating Temperature | -30 ~ 80 °C |
| Storage Temperature | -30 ~ 80 °C |
| Active Area | 170.4×127.8 mm |
| Visual Area | 174.0×131.4 mm |
| Outline Dimension | 200×152×10.1mm (H×V×D) |
| Surface Treatment | Hard Coating (3H), Anti-reflection treatment with 0.7mm cover glass |
| Weight | 370/410g (Typ./Max.) |
| Vibration Resistance | 2.0G (19.6 m/s²) |
| Input Voltage (Logic) | 3.3 V (Typ.) |
| Input Current (Logic) | 230/340mA (Typ./Max.) |
| Input Voltage (Backlight) | 18.6/21.0/23.8V (Min./Typ./Max.) |
| Input Current (Backlight) | 50/55mA (Typ./Max.) |
| Replaceable Backlight | Yes |
| Sunlight Readability | Yes |
| RoHS | Yes |
♦ Outdoor Environment Adaptability: 750 nits high brightness + 0.7 mm cover glass with anti-reflective coating address the issue of poor visibility in bright outdoor light, enhancing the device’s usability outdoors.
♦ High Protection and 70K hours Long Life: Featuring protective glass and wide-temperature, vibration-resistant capabilities, it reduces device failure rates and maintenance costs while extending the overall service life of the unit.
♦ Convenient Touch Interaction: 16-point capacitive touch combined with optical bonding ensures smooth operation and a clear display, enhancing human-machine interaction efficiency.
♦ Flexible Installation and Deployment: Supports 180° screen rotation and is compatible with upside-down and side-mounted installations, adapting to a wide range of industrial equipment configurations.
This 8.4-inch industrial-grade touchscreen display module is widely used in scenarios with extremely high requirements for indoor and outdoor visibility, touch interaction, and reliability. Specific devices include:
• Outdoor Industrial Equipment: Outdoor power measurement and control terminals, mining machinery control panels, oil extraction control panels, etc.

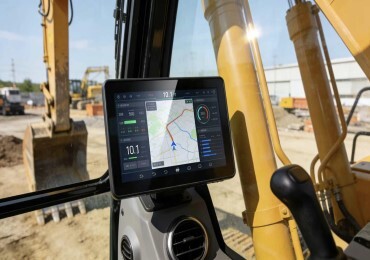

• Automotive and Maritime: Specialized in-vehicle navigation touchscreens, maritime display terminals for ships, human-machine interfaces for forklifts and construction vehicles, etc.
• Portable Testing Equipment: Portable medical testing instruments, outdoor environmental monitoring terminals, geological exploration data acquisition screens, etc.

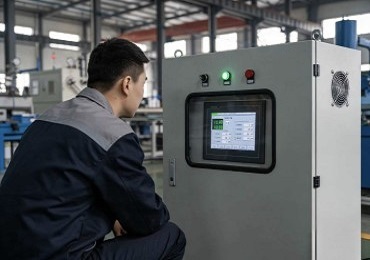

• Industrial automation: Industrial HMIs, smart warehouse touchscreen terminals, automated production line monitoring screens, etc.
• Public display applications: Outdoor self-service terminals (e.g., charging stations, water vending machine, facial recognition systems), touch control panels for electrical cabinets, etc.
As a supplier and manufacturer with 15 years of experience in the TFT LCD display industry, Hengxinda has always adhered to the original principle of quality. With stable product performance and professional technical strength, we had become a long-term LCD display supplier specializing in brands such as AUO, BOE, IVO, Innolux, CHEMEI, and Sharp. We can provide one-stop solutions for LCD Display Kits, and professionally offer bonding services for LCD screens and touch screens; relying on our own R&D production capabilities, we create supporting products such as LCD driver boards, touch screens, LED driver boards, and cables, meeting the diverse application needs of customers.
√ offering free quotation services to enable customers to clearly understand the cost budget.
√ supporting OEM/ODM customization services tailored to specific customer requirements.
√ providing free product technical materials to help customers quickly familiarize themselves with product applications.
Quick response, meticulous protection! Welcome to contact us!
