Wide temperature, replaceable backlight, white LED backlight. lifespan≥70K hours, 180° flip display, matte surface.

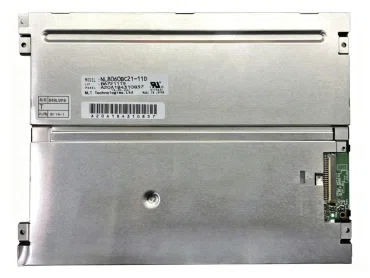

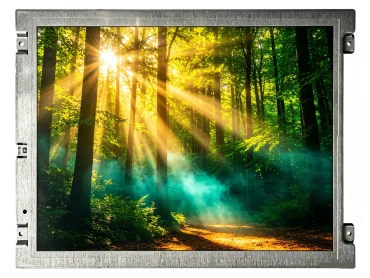

NEC NL8060BC21-11D is an 8.4-inch industrial-grade TFT-LCD display module engineered for reliable performance in demanding environments. With a -30°C to 80°C wide temperature range, 70,000-hour long-life WLED backlight, and 2.0G vibration resistance, it delivers stable visual output for industrial automation, medical equipment, transportation systems, and outdoor terminals.
Key Features:
• 800×600 SVGA resolution with 400 cd/m² brightness and 800:1 contrast ratio.
• Anti-glare matte surface with 3H hard coating for clear visibility in complex lighting conditions.
• 20-pin LVDS interface (1 channel, 6/8-bit gray scale optional) with 3.3V low-power supply.
• 180° flip display support and no-touch design for flexible integration with custom touch solutions.
• Mass production status with sufficient stock to meet long-term project demands.
| Reference Picture | Size | 8.4-inch | Visual Angle | 80/80/80/80 |
 | Brand | NEC | Backlight | 3 strings WLED, 70K hours |
| Model | NL8060BC21-11D | Interface | LVDS (1 ch, 6/8-bit) | |
| Resolution | 800(RGB)×600, SVGA | Operating Temperature | -30 ~ 80 °C | |
| Brightness | 400 cd/m² | Production State | In Production |
Detailed specifications of NEC NL8060BC21-11D are in the below table.
| Parameter | Specification |
| Brand | NEC |
| Model | NL8060BC21-11D |
| Size | 8.4-inch |
| Resolution | 800(RGB)×600, SVGA |
| Pixel Density | 119 PPI |
| Aspect Ratio | 4:3 |
| Display Technology | TN, Normally White, a-Si TFT LCD |
| Brightness | 400 cd/m² |
| Contrast Ratio | 800:1 |
| Viewing Angle | 80/80/80/80 |
| Response Time | 3/15 (Typ.)(Tr/Td) ms |
| Display Colors | 262K/16.7M, 40% NTSC |
| Color Temperature | 6485K |
| Interface | LVDS (1 ch, 6/8-bit) |
| Connector Type | JST-Purple, SM08B-SRSS-TB |
| Backlight Type | 3 strings WLED |
| Backlight Life | 70K |
| Built-in LED Driver Board | No |
| Touch Function | No (Custom touch screen can be matched based on your needs) |
| Operating Temperature | -30 ~ 80 °C |
| Storage Temperature | -30 ~ 80 °C |
| Active Area | 170.4(H) × 127.8(V) |
| Visual Area | 174.0(H) × 131.4(V) |
| Outline Dimension | 200×152×8.2 mm (H×V×D) |
| Surface Treatment | Matte, Hard Coating (3H) |
| Weight | 260/280g (Typ./Max.) |
| Vibration Resistance | 2.0G (19.6 m/s²) |
| Input Voltage (Logic) | 3.3 V (Typ.) |
| Input Current (Logic) | 230/340mA (Typ./Max.) |
| Input Voltage (Backlight) | 13.3/15.0/17.0V (Min./Typ./Max.) |
| Input Current (Backlight) | 50/55mA (Typ./Max.) |
| Replaceable Backlight | Replaceable (84LHS16) |
| Power Consumption | 3.0W (Max.) |
| Sunlight Readability | Yes |
| RoHS | Yes |
