Easy-to-replace backlight; white LED backlight; lifespan of over 70,000 hours; 180-degree flip display; selectable 6- or 8-level grayscale; matte finish.

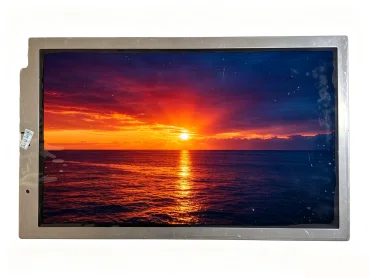

NEC NL8048BC24-09D is a 9.0-inch industrial LCD display designed specifically for applications such as industrial control, in-vehicle displays, and medical equipment. It features a white LED backlight with a lifespan exceeding 70,000 hours; the backlight can be replaced, significantly reducing long-term maintenance costs. It supports 180° rotation, accommodating various mounting orientations. SFT wide-viewing-angle technology provides viewing angles of 88/88/88/88°, ensuring no color distortion when viewed from any angle. The matte surface with 3H hardening treatment effectively reduces glare from strong light and offers scratch and wear resistance. Now NEC NL8048BC24-09D is in mass production with ample stock available, ensuring a stable supply for your needs.
| Reference Picture | Size | 9-inch | Visual Angle | 88/88/88/88 |
| Brand | NEC | Backlight | 7S3P WLED, 70K hours |
| Model | NL8048BC24-09D | Interface | LVDS (1 ch, 6/8-bit) | |
| Resolution | 800(RGB)×480, WVGA | Operating Temperature | -20 ~ 70 °C | |
| Brightness | 400 cd/m² | Production State | In Production |
Detailed specifications of NEC NL8048BC24-09D are in the below table.
| Parameter | Specification |
| Brand | NEC |
| Model | NL8048BC24-09D |
| Size | 9-inch |
| Resolution | 800(RGB)×480, WVGA |
| Pixel Density | 103 PPI |
| Aspect Ratio | 15:9 |
| Display Technology | SFT, Normally Black, a-Si TFT LCD |
| Brightness | 400 cd/m² |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 88/88/88/88 |
| Response Time | 10/15 (Typ.)(Tr/Td) ms |
| Display Colors | 262K/16.7M, 60% NTSC |
| Color Temperature | 6485K |
| Interface | LVDS (1 ch, 6/8-bit) |
| Connector Type | JAE, FI-SE20P-HFE |
| Backlight Type | 7S3P WLED |
| Backlight Life | 70K |
| Built-in LED Driver Board | No |
| Touch Function | No (Custom touch screen can be matched based on your needs) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Active Area | 196.8(W)×118.08(H) mm |
| Visual Area | 200.2(W)×120.4(H) mm |
| Outline Dimension | 220.5×136.5×8.2 mm (H×V×D) |
| Surface Treatment | Matte, Hard Coating (3H) |
| Weight | 260/280g (Typ./Max.) |
| Vibration Resistance | 2.0G (19.6 m/s²) |
| Input Voltage (Logic) | 3.3 V (Typ.) |
| Input Current (Logic) | 360/540mA (Typ./Max.) |
| Input Voltage (Backlight) | 18.5/21.0/23.8V (Min./Typ./Max.) |
| Input Current (Backlight) | 50/55mA (Typ./Max.) |
| Replaceable Backlight | Replaceable (90LHS05) |
| Power Consumption | 4.4W (Typ.) |
| Sunlight Readability | No |
| RoHS | Yes |
Hengxinda Factory specializes in manufacturing complete supporting accessories for LCD panels, covering four major product categories: touch screens, controller boards, backlight driver boards, and dedicated cables. All accessories are independently developed and manufactured in-house and are compatible with a wide range of industrial LCD panels. We provide both standard stock products and customized solutions, offering a one-stop service for LCD integration, debugging, and wiring requirements. Our products feature strong compatibility, stable quality ensured through strict factory testing, and dedicated technical support services. We support both small and large volume orders.

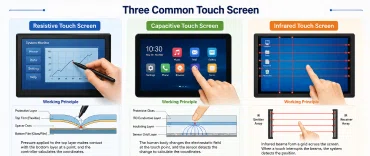

We supply three types of touch screens: Resistive Touch Screens, Capacitive Touch Screens, and Infrared Touch Screens, suitable for different operating environments and application requirements. All touch screens can be matched with both standard and customized LCD panels, ensuring excellent bonding performance and stable touch signal transmission. We support customization of screen size, interface, and bezel design to meet special equipment integration requirements.

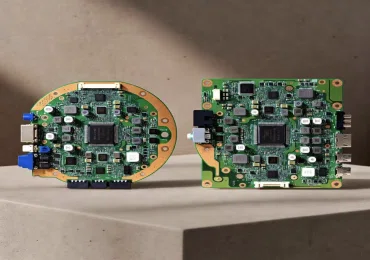

Our LCD controller boards are equipped with common input interfaces such as HDMI, VGA, AV, and Type-C, while also supporting customization of special interfaces including DP and MIPI. They support both LVDS and eDP signal outputs and are compatible with LCD panels up to 4K resolution. Extensive customization options are available, including display parameters, power-on sequence settings, boot logos, and other panel configurations. The controller boards can be integrated directly with our touch screens to create an all-in-one touch display solution. We provide free compatibility testing and configuration based on the customer's LCD panel model, ensuring plug-and-play operation.
We manufacture a complete range of LCD panel-related connection cables. All cables are fully compatible with our controller boards, touch screens, and backlight driver boards, ensuring maximum system integration. We support customization of cable length, connector type, and pin assignments to accommodate various equipment structures.
We understand that every end product has its unique application scenarios and technical challenges. Hengxinda not only provides high-quality industrial LCD displays but also strives to be your trusted LCD display kits supplier throughout the product development process, offering a one-stop solution from selection to implementation.
Our Core Service Value:
♦ Flexible Customization to Meet Diverse Needs
We support personalized adjustments to core parameters such as size, shape, brightness, interface, and resolution, ensuring that every screen perfectly aligns with the unique design of your end product.
♦ Precise Matching for Optimal Solutions
We are more than just suppliers—we are solution providers. Based on your product application scenarios, size constraints, and performance indicators, our technical team will accurately recommend or customize the most suitable standardized or customized screen model, avoiding under-specification or unnecessary over-engineering.
♦ One-Stop Integration to Simplify Your Supply Chain
We provide more than just LCD panels. From LCD driver boards, touch screens, light sensors, to various cables, we supply a complete set of display-related accessories. Additionally, we offer professional Touch Screen Bonding ServiceandGlass Bonding Service, delivering an integrated display module from core to periphery, significantly shortening your development cycle.
♦ Strict Quality Control for Reliable Performance
Every batch of screens undergoes rigorous aging tests, lifespan tests, and environmental adaptability tests (such as high/low temperature and humidity resistance) before delivery. We insist on letting data speak, ensuring that the products delivered to you are reliable enough to withstand harsh environments.
♦ Worry-Free After-Sales Service for Your Peace of Mind
a. Warranty Commitment: We offer an official one-year warranty for our products. For performance failures caused by non-human factors during the warranty period, we promise free repair or replacement.
b. Rapid Response: Upon receiving feedback about defective products, we commit to completing professional testing within 36hours and providing a clear solution promptly, minimizing the impact on your project timeline.
Zhengzhou Hengxinda Technology Co., Ltd. looks forward to collaborating with you. Feel free to contact us anytime to take the first step in our collaboration and find the perfect TFT LCD display solution for your next project.
| Brand | Model Name | Size | Resolution | Brightness | Contrast Ratio | Backlight Type | Interface | pins | Operation Temperature | Download PDF | Add Inquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Sharp | LQ091B1LW01 | 9.1" | 822×260 | 380 nits | 800:1 | WLED | LVDS | 30 | -10 ~70 °C | ||
| IVO | M090AWT3 R2 | 9" | 1024×600 | 600 nits | 800:1 | WLED | LVDS | 40 | -20~70℃ | ||
| IVO | M090AWP4 R1 | 9" | 800×480 | 750 nits | 700:1 | WLED | Parallel RGB | 60 | -30~85℃ | ||
| IVO | M090AWA7 R0 | 9" | 720×1280 | 900 nits | 1200:1 | WLED | LVDS | 40 | -30~85℃ | ||
| IVO | M090AWA6 R1 | 9" | 720×1280 | 1000 nits | 1000:1 | WLED | LVDS | 40 | -30~85℃ | ||
| IVO | M090AWP4 R0 | 9" | 800×480 | 750 nits | 700:1 | WLED | Parallel RGB | 60 | -30~85℃ | ||
| IVO | M090AWA5 R0 | 9" | 720×1280 | 880 nits | 1000:1 | WLED | LVDS | 40 | -30~85℃ | ||
| IVO | M090AWA6 R0 | 9" | 720×1280 | 1000 nits | 1000:1 | WLED | LVDS | 40 | -30~85℃ |
