Wide temperature range, white LED backlight, lifespan greater than 100,000 hours, includes LED backlight driver board, 180-degree flip display (TM070RDSG04-00-BLU1-01)

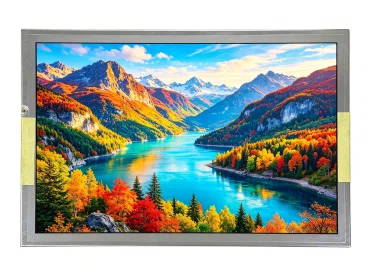

NLT NL8048AC19-13 is a 7.0-inch industrial LCD panel designed for industrial and embedded applications. Its high brightness of 500 cd/m² and 800:1 contrast ratio ensure clear readability even in bright indoor environments, preventing operational errors caused by poor visibility. The built-in LED backlight driver board boasts an ultra-long lifespan of 100,000 hours, significantly reducing maintenance frequency and costs while ensuring stable, long-term operation. With a wide operating temperature range of -30°C to 80°C and 2.0G vibration resistance, it is capable of continuous performance in extreme environments, making it suitable for demanding applications such as indoor industrial controls and automotive displays. Additionally, the 3H hard-coated, scratch-resistant surface withstands the daily wear and tear of industrial settings, further extending the device's service life. Currently in mass production with a stable supply, NLT NL8048AC19-13 serves as a direct replacement for Tianma LCD display P0700WVF1MA10, offering you flexible supply chain options; it is an ideal display solution for industrial HMIs, portable medical devices, marine instruments, and more.
| Reference Picture | Size | 7-inch | Visual Angle | 80/80/80/80 |
 | Brand | NLT | Backlight | WLED, 100K hours |
| Model | NL8048AC19-13 | Interface | LVDS (1 ch, 6-bit) | |
| Resolution | 800(RGB)×480 | Operating Temperature | -30 ~ 80 °C | |
| Brightness | 500 cd/m² | Production State | In Production |
Detailed Specifications of NLT NL8048AC19-13 are in the following table.
| Parameter | Specification |
| Brand | NLT |
| Model | NL8048AC19-13 |
| Size | 7-inch |
| Resolution | 800(RGB)×480, WVGA |
| Pixel Density | 133 PPI |
| Aspect Ratio | 15:9 |
| Display Technology | TN, Normally White, a-Si TFT LCD |
| Brightness | 500 cd/m² |
| Contrast Ratio | 800:1 |
| Viewing Angle | 80/80/80/80 |
| Response Time | 8 (Typ.)(Tr+Td) ms |
| Display Colors | 262K, 60% NTSC |
| Color Temperature | 6485K |
| Interface | LVDS (1 ch, 6-bit) |
| Connector Type | JAE, FI-S6P-HFE |
| Backlight Type | WLED |
| Backlight Life | 100K |
| Built-in LED Driver Board | Yes |
| Touch Function | No (Custom touch screen can be matched based on your needs) |
| Operating Temperature | -30 ~ 80 °C |
| Storage Temperature | -30 ~ 80 °C |
| Active Area | 152.4(W)×91.44(H) mm |
| Visual Area | 154.4(H) × 93.5(V) mm |
| Outline Dimension | 170×111×8.5 mm (H×V×D) |
| Surface Treatment | Clear, Hard Coating (3H) |
| Weight | 185/200g (Typ./Max.) |
| Vibration Resistance | 2.0G (19.6 m/s²) |
| Input Voltage (Logic) | 3.3 V (Typ.) |
| Input Current (Logic) | 190/290mA (Typ./Max.) |
| Power Consumption (Logic) | 0.63W (Typ.) |
| Input Voltage (Backlight) | 12.0V |
| Input Current (Backlight) | 200/220mA (Typ./Max.) |
| Power consumption (Backlight) | 2.4W (Typ.) |
| Power Consumption | 3.0W (Typ.) |
| Sunlight Readability | No, Indoor Use |
| RoHS | Yes |
| Category | Parameter | NL8048AC19-13 | P0700WVF1MA10 |
|---|---|---|---|
| General Information | Brand | NLT | Tianma |
| Reference Picture | |  | |
| Panel Type | a-Si TFT-LCD, LCD Module | a-Si TFT-LCD, LCD Module | |
| Diagonal Size | 7.0 inches | 7.0 inches | |
| Resolution | 800(RGB)×480 (WVGA), 15:9 Aspect Ratio | 800(RGB)×480 (WVGA), 15:9 Aspect Ratio | |
| Pixel Arrangement | RGB Vertical Stripes | RGB Vertical Stripes | |
| RoHS Compliance | Yes | Yes | |
| Optical Specifications | Typical Brightness | 500 cd/m² | 1000 cd/m² |
| Typical Contrast Ratio | 800:1 (Transmissive) | 1000:1 (Transmissive) | |
| Viewing Angle (Typ., CR≥10) | 80/80/80/80 (L/R/U/D) | 85/85/85/85 (L/R/U/D) | |
| Response Time (Typ., Tr+Td) | 8 ms | 25 ms | |
| Display Mode | TN, Normally White, Transmissive | SFT, Normally Black, Transmissive | |
| Surface Treatment | Clear, Hard Coating (3H) | Matte | |
| Color Temperature | 6485K | 6854K | |
| NTSC Ratio | 63% | 72% | |
| sRGB Coverage | 86% | 96% | |
| Sunlight Readable | Indoor Srtong light is okay | Yes | |
| Mechanical Dimensions | Active Area (W×H) | 152.4×91.44 mm | 152.4×91.44 mm |
| Viewing Area (W×H) | 154.4×93.5 mm | 155.4×94.94 mm | |
| Outline Dimensions (W×H×D) | 170×111×8.5 mm | 169.8×109.7×7.3/9.2 mm (Typ./Max.) | |
| Weight | 185/200g (Typ./Max.) | 183g (Typ.) | |
| Mounting | Side mounting holes (4-M2) on left/right bezels | Side mounting holes (4-M2) on left/right bezels | |
| Physical Shape | Landscape, Rectangular | Landscape, Rectangular | |
| Electrical & Interface Specifications | Refresh Rate | 60Hz | 60Hz |
| Flip Scan | 180° Flip Supported | 180° Flip Supported | |
| Signal Interface | LVDS (1 ch, 6-bit), 20 pins, Connector | LVDS (1 ch, 6/8-bit), 20 pins, Connector | |
| Typical Input Voltage (Signal) | 3.3V | 3.3V | |
| Typical Power Consumption (Signal) | 0.63W | 330mW | |
| Backlight Driver | with LED Driver Board | with LED Driver Board | |
| Typical Input Voltage (Backlight) | 12.0V | 12.0±1.0V | |
| Brightness Adjustment | PWM 0.1~100% | PWM 0.2~100% | |
| Environmental & Reliability | Operating Temperature | -30 ~ 80°C | -30 ~ 80°C |
| Storage Temperature | -30 ~ 80°C | -40 ~ 90°C | |
| Vibration Resistance | 2.0G (19.6 m/s²) | 1.0G (9.8 m/s²) | |
| Backlight System | Light Source Type | WLED, Edge-lit (Bottom) | WLED, Edge-lit |
| Typical Backlight Lifetime | 100,000 Hours | 70,000 Hours |
Comparison Summary & Purchase Recommendations
♦ Key Performance Differences
♦ Purchase Recommendations
Q1: What are the operating temperature range and vibration resistance of NLT NL8048AC19-13 wide-temperature TFT display, and for which industrial display applications is it suitable?
A1: This wide-temperature TFT LCD display operates within a range of -30 to 80°C and withstands vibrations of 2.0G. Equipped with a long-life WLED backlight rated for 100,000 hours, it is suitable for demanding environments such as industrial HMIs, in-vehicle industrial control terminals, portable medical devices, and marine instruments.
Q2: Does the 7-inch LVDS industrial LCD screen NL8048AC19-13 come with a built-in backlight driver board, and what is the dimming method?
A2: This 7-inch LVDS industrial LCD screen features a built-in original LED backlight driver board. It operates on a standard 12V backlight input and supports wide-range PWM dimming from 0.1% to 100%, with a dimming frequency range of 100 Hz to 10 kHz. It is compatible with the vast majority of industrial driver boards, simplifying the overall circuit design and reducing project material costs.
Q3: Does the 7-inch 800×480 industrial LCD panel NL8048AC19-13 have high power consumption?
A3: This industrial LCD panel has a typical total power consumption of only 3.0W, with signal-side power consumption as low as 0.63W. Its low-power design makes it suitable for battery-powered portable medical and handheld testing devices.
Q4: NLT NL8048AC19-13 industrial TFT screen does not have touch functionality. How should I configure it if I want to add a touch screen?
A4: This 7-inch industrial TFT LCD display does not have built-in touch functionality. We can pair it with a 7-inch projected capacitive touch screen or resistive touch screen of the same size. When combined with a 20-pin LVDS driver board, this creates an all-in-one touch display solution widely used in industrial control devices and HMI terminals for smart devices. You can choose to bonding methods for bonding touch screen and LCD panel.
Q5: NLT NL8048AC19-13 has a backlight lifespan of 100,000 hours. What long-term advantages does this offer compared to standard 7-inch LCD panels?
A5: Standard 7-inch LCD panels typically have a backlight lifespan of 70,000 hours. This model’s 100,000-hour WLED backlight reduces the frequency of backlight replacement and maintenance, significantly lowering after-sales costs for industrial equipment; It is the preferred WVGA LCD display module for industrial projects with long lifecycles.
