Wide temperature range, easy-to-replace backlight, white LED backlight, lifespan exceeding 70,000 hours, up/down and left/right display rotation, selectable 6- or 8-level grayscale, matte finish.
NEC NL6448BC26-27D is an 8.4-inch industrial LCD display panel featuring wide temperature range, easy backlight replacement, and vibration resistance, making it an ideal LCD display solution for industrial automation, medical displays, rail transportation, and other fields. With a typical brightness of 500 cd/m² and a 3-string WLED backlight offering a lifespan exceeding 70,000 hours, NL6448BC26-27D can minimize equipment downtime for maintenance and enhances overall system stability. It supports selectable 6- or 8-bit grayscale and features a 20-pin LVDS interface, facilitating integration into various devices. With a 640×480 VGA resolution and a 1000:1 contrast ratio, the industrial LCD panel features a matte finish that is anti-glare and scratch-resistant, making it suitable for complex lighting environments. Now NEC NL6448BC26-27D is currently in mass production with ample stock on hand, ensuring your needs for volume production and long-term inventory are met. And NEC NL6448BC26-27D is widely used in industrial HMIs, PLC control panels, CNC display panels, small diagnostic instruments, automotive displays, outdoor measuring instruments, and small self-service terminals.

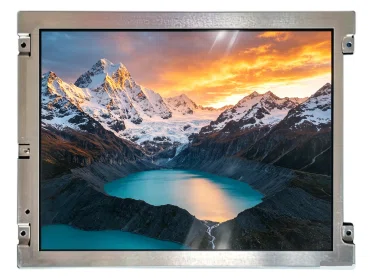

| Reference Picture | Size | 8.4-inch | Backlight | 3 strings WLED, 70K hours |
| Brand | NEC | Interface | LVDS (1 ch, 6/8-bit) |
| Model | NL6448BC26-27D | Brightness | 500 cd/m² | |
| Resolution | 640(RGB)×480, VGA | Operating Temperature | -30 ~ 80 °C | |
| Visual Angle | 80/80/80/80 | Production State | In Production |
Detailed Specifications of NEC NL6448BC26-27D LCD Panel are in the following table.
| Parameter | Specification |
| Brand | NEC |
| Model | NL6448BC26-27D |
| Size | 8.4-inch |
| Resolution | 640(RGB)×480, VGA |
| Pixel Density | 95 PPI |
| Aspect Ratio | 4:3 |
| Display Technology | TN, Normally White, a-Si TFT LCD |
| Brightness | 500 cd/m² |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 80/80/80/80 |
| Response Time | 3/15 (Typ.)(Tr/Td) ms |
| Display Colors | 262K/16.7M, 40% NTSC |
| Color Temperature | 6485K |
| Interface | LVDS (1 ch, 6/8-bit) |
| Connector Type | JAE, FI-SE20P-HFE |
| Backlight Type | 3 strings WLED |
| Backlight Life | 70K |
| Built-in LED Driver Board | No |
| Touch Function | No (Custom touch screen can be matched based on your needs) |
| Operating Temperature | -30 ~ 80 °C |
| Storage Temperature | -30 ~ 80 °C |
| Active Area | 170.88(H) × 128.16(V) |
| Visual Area | 174.0(H) × 131.4(V) |
| Outline Dimension | 200×152×8.2 mm (H×V×D) |
| Surface Treatment | Matte, Hard Coating (3H) |
| Weight | 260/280g (Typ./Max.) |
| Vibration Resistance | 2.0G (19.6 m/s²) |
| Input Voltage (Logic) | 3.3 V (Typ.) |
| Input Current (Logic) | 250/370mA (Typ./Max.) |
| Input Voltage (Backlight) | 13.3/15.0/17.0V (Min./Typ./Max.) |
| Input Current (Backlight) | 50/55mA (Typ./Max.) |
| Replaceable Backlight | Replaceable (84LHS16) |
| Power Consumption | 3.1W (Typ.) |
| Sunlight Readability | No, Indoor Use |
| RoHS | Yes |
Q1. Does NEC NL6448BC26-27D support touch functionality?
A: NEC NL6448BC26-27D does not have built-in touch functionality, but its pure display design allows customers to easily integrate resistive touch screens or capacitive touch screens to flexibly accommodate different interaction needs. We offer a selection of compatible resistive, capacitive, and infrared touch screens for your choice. For more details, please contact our sales team; we will respond within 6 hours.
Q2: Does NEC NL6448BC26-27D not come with an LED backlight driver board?
A: Yes, the NEC display panel does not have an internally integrated LED backlight driver board, so it must be purchased separately. We offer LED backlight driver boards with a MOQ of 2 pieces; the products will be configured according to your panel’s backlight specifications before shipment.
Q3: What is the price of NEC NL6448BC26-27D?
A: All industrial LCD panels we supply are sourced directly from the original manufacturer, offering competitive prices and guaranteed quality.
Q4: Is the supply of NEC NL6448BC26-27D stable?
A: NEC NL6448BC26-27D is currently in mass production with ample stock on hand, ensuring we can meet your project’s bulk production and long-term inventory needs.
Q5: What types of equipment is NEC NL6448BC26-27D primarily suitable for?
A: Our customers use it in industrial HMIs, CNC systems, robot teach pendants, portable medical monitors, power monitoring devices, measuring instruments, and other industrial and specialized applications.
