Wide operating temperature range, 6.8G shock resistance, white LED backlight, lifespan exceeding 70,000 hours, built-in LED driver board, up/down and left/right display flip, matte finish.
Panel Overview

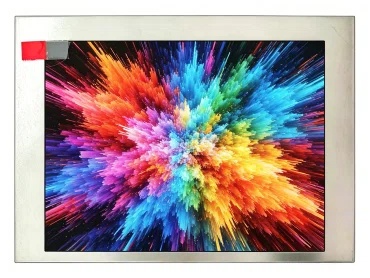

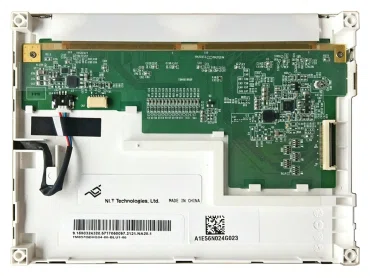

NLT NL6448AC18-08D is a rugged 5.7-inch industrial-grade a-Si TFT-LCD display module engineered for stable performance in harsh, high-vibration control environments. This non-touch LCD display features a standard VGA resolution with a 4:3 aspect ratio, delivering 550 nits brightness and a sharp 900:1 contrast ratio. NL6448AC18-08D operates on a standard 33-pin CMOS interface with an integrated LED driver, fully supporting an ultra-wide temperature range from -30℃ to +80℃ and 6.8G vibration resistance. It is widely applied across demanding sectors, including factory automation HMIs, heavy construction machinery dashboards, marine navigation systems, and rugged medical monitoring equipment. As a high-demand active model with hundreds of pieces in stock, we offer reliable long-term supply, competitive wholesale pricing, and full technical support for seamlessshipments,project development, or direct replacements for discontinued LCD displays.
Detailed Specifications are in the following table.
Parameter
Specification
Brand
NLT
Model
NL6448AC18-08D
Size
5.7-inch
Resolution
640(RGB)×480, VGA, 4:3
Pixel Density
141 PPI
Aspect Ratio
4:3
Display Technology
TN, Normally White, a-Si TFT LCD
Brightness
550 cd/m²
Contrast Ratio
900:1
Viewing Angle
80/80/80/80
Response Time
3/15 (Typ.)(Tr/Td) ms
Display Colors
262K, 50% NTSC
Color Temperature
6485K
Interface
CMOS (1 ch, 6-bit)
Connector Type
JST-purple SM06B-SRSS-TB
Backlight Type
WLED
Backlight Life
70K hours
LED Driver Board
Yes
Touch Function
No(Custom touch upgrades upon your request)
Operating Temperature
-30 ~ 80 °C
Storage Temperature
Active Area
115.2(W)×86.4(H) mm
Visual Area
118.2(W)×89.4(H) mm
Outline Dimension
144× 104.6 × 12.3 mm (H×V×D)
Surface Treatment
Matte surface, Hard Coating (3H)
Weight
150/165g (Typ./Max.)
Vibration Resistance
6.8G (66.64 m/s²)
Input Voltage (Logic)
3.3V (Typ.)
Input Voltage (Backlight)
12.0V (Typ.)
Power Consumption
2.3W (Typ.)
Sunlight Readability
No, Indoor Use
RoHS
Key Features
♦ 6.8G Vibration Resistant
Built to withstand continuous mechanical shocks (66.64m/s2). Perfect for heavy machinery, mining tools, and CNC control equipment where standard screens fail.
♦ Ultra-Wide Operating Temp (-30°C to +80°C):
Guarantees instant start-up and flawless liquid crystal response in freezing outdoor winters or high-heat sealed industrial enclosures.
♦ 70,000-Hour Backlight Life:
Equipped with a long-life WLED light source and an integrated LED driver board. Cuts down maintenance overhead and ensures continuous 24/7 operations.
♦ High Brightness & Contrast:
Delivers 550 nits brightness and a crisp 900:1 contrast ratio, combined with a 3H anti-glare matte coating. Maintains sharp data readability and reduces eye strain under factory floor lighting.
♦ Streamlined Integration:
Features a standard 33-pin CMOS (1 ch, 6-bit) interface with a low 3.3V typical drive voltage. Simplifies your hardware team’s mainboard design and accelerates your product's time-to-market.
As a professional industrial LCD display supplier, Hengxinda not only provides original NLT NL6448AC18-08D panel but also offers complete display integration services to help customers reduce development time and sourcing costs. We can provide capacitive touch screens, resistive touch screens, LCD controller boards, custom cables, optical bonding services, and custom display solutions according to specific project requirements. Whether customers are developing new equipment, maintaining existing systems, or searching for a compatible replacement display, Hengxinda can provide professional technical support and long-term supply solutions. With years of experience serving industrial automation, medical equipment, transportation, marine electronics, energy, and mining industries, we are committed to delivering reliable display products, stable supply channels, and responsive engineering support for customers worldwide.
Get a Quick Quote for NLT NL6448AC18-08D Today! Are you looking for a reliable supply of NL6448AC18-08D for an upcoming project, or trying to secure stock for an existing product line? As an authorized supplier with active inventory, we offer competitive wholesale pricing, global fast shipping, and comprehensive technical support.
👉 [Send an Inquiry] (Get a response from our display engineers within 6 hours!)
Q1: Is NLT NL6448AC18-08D suitable for semi-outdoor applications? A1: Yes. With a high brightness of 550 cd/m² and an anti-glare matte surface treatment, it provides great readability in semi-outdoor environments.
Q2: Our project involves heavy vibration (mining/construction equipment). Will NLT NL6448AC18-08D be used? A2: Absolutely. The NL6448AC18-08D is explicitly designed for rugged industrial settings, boasting a vibration resistance of up to 6.8G (66.64 m/s²). It far exceeds standard commercial or automotive displays in durability under constant mechanical shock.
Q3: What is the long-term availability of NLT NL6448AC18-08D? A3: We understand that industrial projects require a stable supply chain for 3 to 10 years. The NL6448AC18-08D is currently in active mass production. We provide full technical support for seamless drop-in replacements models P0570VGF1ME00 to ensure your production line never stops.
Q4: Does this LCD module include a touch panel? A4: The standard NL6448AC18-08D model is a non-touch (without touch) display module. However, if your project requires user interaction, we offer customization services to integrate matching 4-wire/5-wire resistive touch screens or projected capacitive (PCAP) touch screens. Please contact our engineering sales team for touch customization details.
Q5: Can we request a sample for testing and prototyping? A5: Yes, we support sample orders for engineering verification. We have a steady stock available and can provide the full manufacturer's datasheet, reference schematics, and pin-assignment documentation to assist your R&D team.
