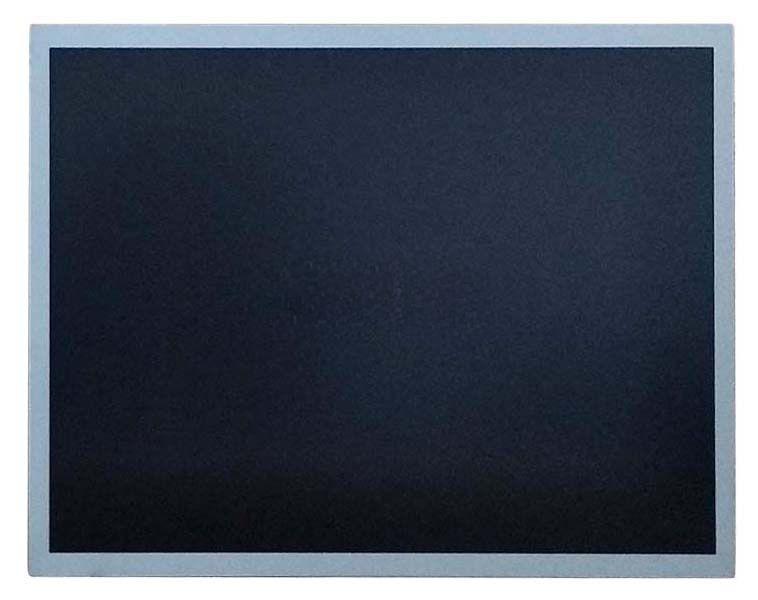

LQ150X1LG92

LQ150X1LG92

Download PDF Send Message

Basic Parameters

Panel Brand Sharp panel model LQ150X1LG92
Panel size 15.0 panel type a-Si TFT-LCD,LCD Module
resolution ratio 1024(RGB)×768, XGA, 85PPI pixel layout RGB vertical stripes
display area 304.128(W)×228.096(H) mm Appearance size 326.5(W)×253.5(H)×10.1(D) mm
Brightness(cd/m²) 400 cd/m² (Typ.) the contrast 800:1 (Typ.) (TM)
visual Angle 80/80/65/80 (Typ.) (CR≥10)  surface treatment Hard coating (3H)
number of colors 16.2M , 70% NTSC light source type WLED , 50K hours with LED driver
Panel Weight 950g (Max.) response time 30 (Typ.) (Tr+Td)
viewing direction work pattern TN, normally white display, transmissive
frame frequency 60Hz   used for game
signal interface LVDS (1 ch, 8-bit) , 20 pins , Terminals touchscreen without
driving voltage 3.3V (Typ.)
application environment Operating temperature: -20 ~70 °C ;Storage temperature: -30 ~80 °C

Drive board matching scheme







12

Model: HXD-H58, HDMI+DC12V input, LVDS output, operating temperature-20 to 70, support maximum resolution of 1920*1080,





Model YT-VDH58 V1.1 HDMI +DC12V input, LVDS output, operating temperature-40 to 70, supports maximum resolution of 1920*1200





Model HXD-VDH 58L V1.1 HDMI +DC12V input, LVDS output, operating temperature-20 to 65, support maximum resolution 1920*1200





Model HXD-V1680 HDMI+DC12V input, LVDS output, operating temperature-20 to 65, support maximum resolution 1920*1200





Model HXD-HP58UWV V1.1   HDMI+DC12V input, LVDS output, support audio amplifier: 2 x 10W, support maximum resolution 1920*1200





Model HXD-VD68 V1.1    HDMI+DC12V input, LVDS output, operating temperature-20 to 65, support maximum resolution 1920*1200



The supporting driver board adopts stable industrial scheme. All devices meet industrial standards. The board has been strictly tested and demonstrated. The recommended driver board is matched according to the parameters of the LCD screen.
It expands the application of LCD screen. Detailed parameters of the driver board are described in detail on other pages.
