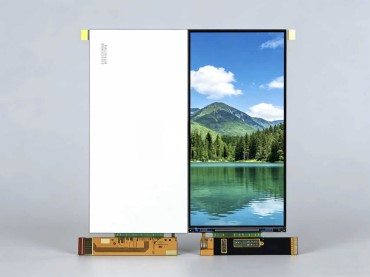

LQ055T3SX02

sRGB, Portrait Mode, White LED Backlight

Product Description

Sharp LQ055T3SX02 is a practical model featuring a 5.5-inch Oxide TFT-LCD display. Although it has a FHD (1080×1920) resolution, it achieves a display precision of 403 PPI, balancing visual experience and cost. With a thickness of only 1.65mm and a weight of 23.0g, this design still incorporates a high brightness of 450cd/m² and a 70% NTSC color gamut. It also supports a wide temperature range of -20 to 60℃, meeting the portability requirements of consumer devices while being suitable for some complex usage scenarios.

Basic Parameter

Brand	Sharp	Type	Oxide TFT-LCD
Model	LQ055T3SX02	Surface Finish	---
Size (inch)	5.5	Pixel Layout	RGB Vertical Strip
Outline Dimension (WxHxD mm)	70.84(W)×128.56(H)×1.65(D)	Optical Mode	New Mode2
Active Area (WxH mm)	68.04(W)x120.96(H)	Backlight Type	6S2P WLED
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)	Interface	MIPI (4 data lanes), 39 pins
Resolution	1080(RGB)×1920,FHD,403PPI	Response Time	35 (Max.) (Tr+Td) ms
Brightness (cd/m²)	450	Display Colors	16.7M, 70%NTSC
Contrast Ratio	1000:1	Operating Temperature (°C )	-20~ 60
Operating Voltage	1.8/5.8/5.6V (Typ.)(VDDI/VSP/VSN)	Storage Temperature (°C )	-30~70
Operating Frequency	60Hz	Weight	23.0g
Application	Smart Phone

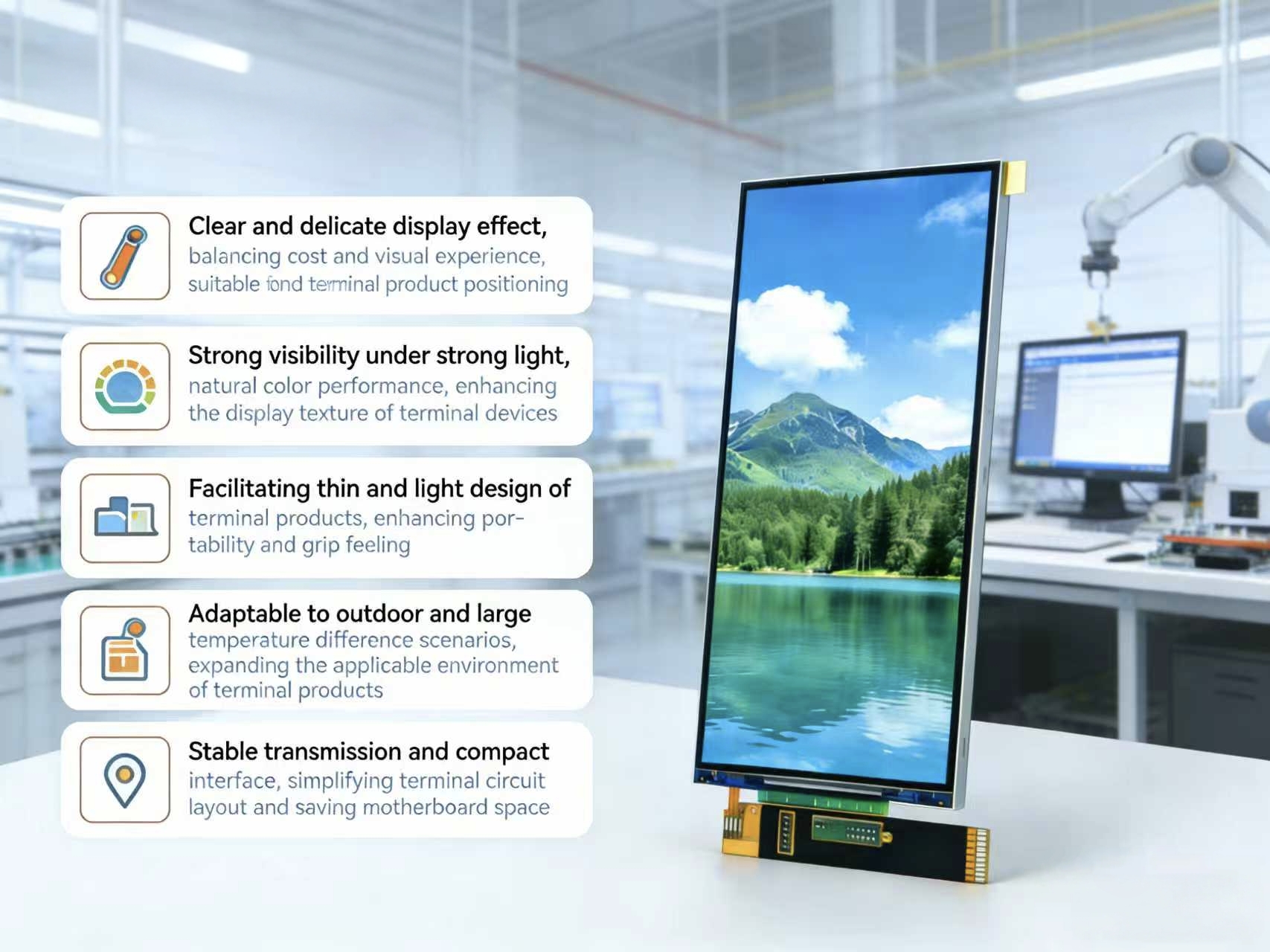

Sharp LS055T3SX02 TFT LCD Panel Key Features

Sharp LS055T3SX02 TFT LCD Panel Application Scenarios

Sharp LS055T3SX02 is designed for smartphone, especially suitable for mid-range smartphone models: With balanced lcd tft display effects, lightweight form factor and controllable costs, it can serve as the main display for mid-range devices, meeting the core demands of the general public for screen clarity and portability.

HXD Service

FAQ

1. How compatible is the 39-pin interface with the common mobile screen interfaces?
A: MIPI 4 lanes is the mainstream interface type for mobile screens. The compact design of the 39-pin interface is suitable for the motherboard layout of most mid-range mobile phones. We can provide interface definition documents to assist in adaptation.

2. Can customized packaging solutions be provided during bulk purchasing?
A: Based on the transportation and storage requirements of the customers, customized packaging solutions with anti-static and shock-proof features can be provided to ensure the integrity of the products during transportation.

3. What is the lifespan of the screen backlight type 6S2P WLED?
A: The typical backlight lifespan can reach 50,000 hours (with brightness attenuation to 50% of the initial value), covering the regular usage period of smartphones.

4. How long is the delivery cycle approximately?
A: The delivery cycle for regular orders is 3-7 working days.

5. Is it possible to adjust parameters such as screen brightness and color gamut?
A: If the customer has a bulk demand, the factory can be coordinated for partial customized adjustments of parameters. Specific requirements need to be communicated in advance.
