Wide-screen color gamut, DCI-P3, sRGB, Portrait mode, White LED backlighting

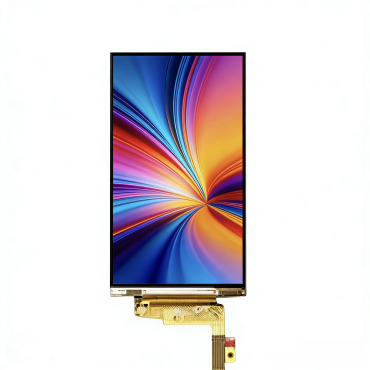

Sharp LQ050T1SX02 is a 5-inch Oxide TFT-LCD display. It achieves fine color display with 1080P high definition and 95% NTSC wide color gamut. It is equipped with a 13.1g ultra-lightweight and 1.13mm ultra-thin thickness, which is suitable for portable devices. It is also paired with 7S2P WLED backlight and -20℃ to 60℃ wide temperature range capabilities. This makes it a high-quality display solution that meets the high-definition display requirements of smartphones and can also be adapted for compact installation scenarios of small devices such as 3D printers.
Brand
Sharp
Type
Oxide TFT-LCD
Model
LQ050T1SX02
Surface Finish
---
Size (inch)
5
Pixel Layout
RGB Vertical Strip
Outline Dimension (WxHxD mm)
64.041(W)×116.224(H)×1.13(D)
Optical Mode
New Mode2
Active Area (WxH mm)
61.641(W)x109.584(H)
Backlight Type
7S2P WLED
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Interface
MIPI, 30 pins
Resolution
1080(RGB)×1920,FHD,445PPI
Response Time
35 (Max.) (Tr+Td) ms
Brightness (cd/m²)
460
Display Colors
16.7M,95% NTSC
Contrast Ratio
1300:1
Operating Temperature (°C )
-20~ 60
Operating Voltage
1.8/5.5/-5.5V (Typ.)(IOVDD/VSP/VSN)
Storage Temperature (°C )
-30~70
Operating Frequency
60Hz
Weight
13.1g
Application
Smartphone/3D Printer
1. Q: Can this LCD TFT Display be used for outdoor devices? A: Its brightness is 460cd/㎡, which is more suitable for indoor / semi-outdoor scenarios. If it needs to be used in strong outdoor light, the brightness can be customized for fine-tuning. 2. Q: Does it support touch functionality? A: The basic model is a pure display screen. A capacitive touch module can be integrated for customization (suitable for smartphone touch requirements), and the sample production cycle is approximately 7 days. 3. Q: Does the MIPI interface support the driver solutions for mainstream devices? A: Yes, MIPI is the mainstream interface for smartphones and small smart devices, and it can match the driver circuits of most devices. 4. Q: What is the minimum order quantity for bulk purchases? A: The minimum order quantity for regular orders is 500 pieces. Mixed batches of the same series with different models are supported. 5. Q: What is the product warranty period? A: A 12-month warranty is provided. During the warranty period, non-human damage can be replaced or repaired for free.
