LQ035NC111 Is a very cost-effective Chi Mei 3.5 inch LCD products, suitable for reversing systems, monitoring industry, visual doorbell and so on. Resolution 320*240, viewing angle 60/60/50/55, TTL signal interface, can work normally in minus 20 degrees environment
| Panel Brand | Innolux | Panel model | LQ035NC111 | |||
| Panel size | 3.5-inch | Panel type | a-Si TFT-LCD | |||
| Resolution ratio | 320(RGB)×240, QVGA, 115PPI | Pixel layout | RGB vertical stripes | |||
| Display area | 70.08(W)×52.56(H) mm | Appearance size | 76.9(W)×63.9(H)×3.46(D) mm | |||
| Brightness(cd/m²) | 300 cd/m² (Typ.) | The contrast | 400 : 1 (Typ.) (transmission) | |||
| Best angle | 6 o'clock | Surface treatment | Haze (20%) | |||
| Visual Angle | 60/60/50/55 (Typ.) (CR≥10) | Optical mode | TN, normally white display, transmissive | |||
| Number of colors | 16.7M , 60% NTSC | Response time | 10/15 (Typ.) (Tr/Td) ms | |||
| Screen Weight | 30.0g (Typ.) | Backlight system | 6S1P WLED , 10K hours, without driver | |||
| Frame frequency | 60Hz | Be the same with | Handheld Terminal Digital Camera Digital Camera Portable Navigator | |||
| Interface type | 54 pins Digital RGB (8/24-bit) + SPI, CCIR601/656 , FPC | Touch panel | touchless | |||
| Voltage supply | 3.3V (Typ.) | |||||
| Application environment | Operating temperature: -20 ~70 °C ; Storage temperature: -30 ~80 °C | |||||
| ST-03501 | ||
| attention | ||
| On-line material | 0.188mm fog surface anti-cow | |
| lower line material | 0.7mm | 350-500 Ω |
| light transmittance | ≧78% | |
| linear value | ≦1.5% | |
| interface mode | FPC | |
| resistance value | around | 400-1000Ω |
| up and down | 220±120Ω | |
| operating temperature | :-20℃-+70℃ | |
| storage temperature | ：-30℃-+80℃ | |
| surface hardness | 3H | |
| operating pressure | Maximum 80g | |
| reaction time | ≤10ms | |
| Unmarked tolerance±0.2 | ||

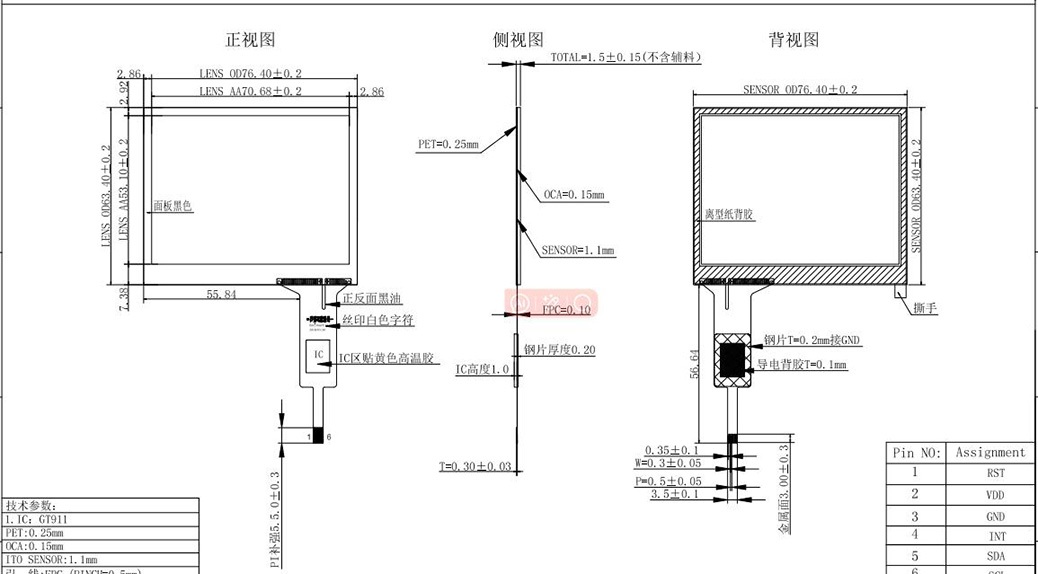

| technical parameters |
| IC:GT911 |
| PET:0.25mm |
| OCA 0.15mm |
| ITO SENSOR:1.1mm |
| FPC(PINCH=0.5mm) |
| Total thickness 1.5±0.15mm(excluding excipients) |
| Operating voltage 3.3V |
| Transmittance≥85% |
| Surface hardness 3H |
| Working environment-20℃-+70℃,≤90%RH |
| Storage environment-30℃-+80℃,-30℃-+80℃ |
| Unmarked size tolerance ±0.2mm |

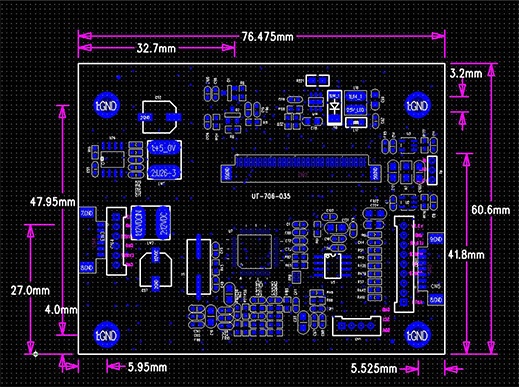

| Drive Board Parameters |
| Operating temperature: -20℃~+70℃ |
| Working humidity: 90%RH (no condensation) |
| Storage temperature: -20℃~+70℃ |
| Storage humidity: 90%RH (no condensation) |
| Product function description |
| 1 Two CVBS video signal inputs (one channel can be preferred) |
| 2 Power Input: DC +6 - +16V |
| 3 can add keypad brightness contrast and remote control operation (optional) |
| Mainly used in vehicle rear view/security monitoring/fishing machine/ star finder/video doorbell/video phone/and other equipment |
