LCD panel spot damages are not caused by a single failure mechanism. Instead, they refer to a wide range of display abnormalities, including optical defects, backlight irregularities, bonding issues, mechanical stress marks, and environmental-related failures that appear as spots, stains, bright areas, dark areas, bubbles, or uneven display patterns on LCD screens.
These LCD display defects are commonly found in industrial display applications such as industrial HMI systems, medical displays, automotive terminals, outdoor digital signage, self-service kiosks, marine displays, and specialized military-grade display equipment.
Although some spot defects may appear as minor visual imperfections, they can significantly affect display performance, user experience, and long-term product reliability. If not properly analyzed and controlled, these LCD defects may accelerate panel aging, increase after-sales maintenance costs, reduce product lifespan, and negatively impact brand reputation.

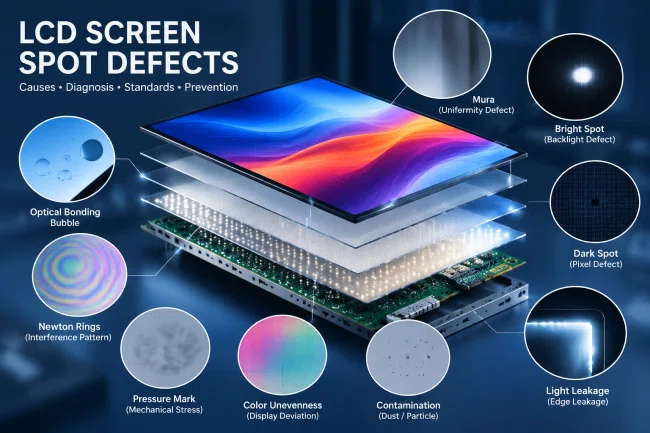

This article provides a comprehensive analysis of LCD screen spot defects based on international LCD inspection practices, including ISO and IEC testing guidelines. It covers LCD defect classification, root cause analysis, standardized diagnosis procedures, industry acceptance criteria, quality control methods, and full-process prevention strategies.
Localized areas on the surface of an LCD panel may exhibit a visual appearance that is noticeably inconsistent with the surrounding display. This phenomenon is generally referred to in the industry as “LCD spot damage.” In practical engineering applications, these damages can manifest visually as LCD bright spots, LCD dark spots, LCD white spots, pressure marks, uneven brightness, color abnormalities, localized yellowing, Mura, light leakage, or even optical bonding defects, among other forms. LCD spot damage are essentially localized imbalances in optical performance. These anomalies may stem from various factors, including mechanical stress, changes in optical structure, aging of the backlight module, material degradation, or manufacturing process deviations. For industrial LCD display equipment, understanding both the visual appearance and the underlying causes provides a crucial basis for subsequent fault diagnosis, reliability analysis, and preventive measures.
In industry discussions, it is common to refer to nearly all localized display anomalies as “Spot Damage.” Strictly speaking, however, this is not standard. From the perspective of LCD manufacturing processes, bright spots and dark spots are classified as Pixel Defects; Mura is classified as a Display Uniformity Defect; Light Leakage is classified as a Backlight Optical Defect; and Bubbles and Newton Rings are classified as Optical Bonding Defects. Since these issues ultimately manifest as display abnormalities in localized areas of LCD panels, they are typically grouped together as “Spot Damages” in after-sales communications. Below, we will analyze common LCD spot damage within the industry.
Type
Characteristics
Causes
Diagnosis
Solution
Bright Spots
On a completely black screen, the brightness of a specific area is noticeably higher than that of the surrounding areas; even when the displayed content is changed, the brightness of that area remains abnormally high.
1. TFT pixel malfunction
2. Abnormal luminous efficiency or optical distance of the backlight LED beads
3. Scratches on the light guide plate surface or deformation caused by pressure
1. Change the displayed content. If the bright spot remains in the same location and is present on all screens, it may be a hardware defect.
2. Observe the screen when it is black. If the bright spot is clearly visible on a black screen, the primary suspicion should be damaged TFT pixels or a backlight defect.
3. Perform a light pressure test. If the location of the bright spot changes, the issue may be related to the liquid crystal layer or the optical structure.
Screen incoming panels to reject those with pixel defects; assemble backlight modules in a dust-free environment; add an electrostatic discharge station to the production line; perform optical lamination entirely in a Class 100 cleanroom.
Dark Spots
Areas of the LCD display with brightness significantly lower than the surrounding areas. Typically manifested as: black areas; gray shadows; areas of uneven display.
1. Backlight LED defects. If the brightness of a specific LED bead decreases, or if it is open-circuited or aged, this results in insufficient light in the corresponding area.
2. Diffuser film contamination. If foreign objects enter the backlight assembly, they can obstruct light transmission, creating localized dark spots.
3. Damage to the light guide plate. If the light guide plate is subjected to impact, the light fibers cannot diffuse light normally, resulting in dark areas.
4. Damaged polarizing film. If the polarizing film is scratched, contaminated, or aged, it will alter light transmittance, resulting in dark spots.
The display cycles between a full-screen pure white image and a 128-level grayscale image. A brightness uniformity tester collects brightness readings from multiple points on the screen and determines the defect severity based on the differences between these readings.
Strictly control cleanliness during panel cutting and encapsulation processes; manage backlight LEDs by BIN grade; optimize the overall device structure to prevent localized compression.
Pressure Marks
Display abnormalities occur when the LCD is subjected to localized mechanical pressure. Typical manifestations include: colored ripples; white areas; rainbow-like patterns; noticeable changes after pressure is applied.
1. Excessive torque on the unit’s fastening screws causes localized compression of the panel by the bezel;
2. Insufficient clearance between the housing sheet metal and mounting brackets, resulting in uneven stress distribution;
3. Insufficient cushioning during transportation and packaging, resulting in heavy stacking pressure;
4. Hard contact between assembly jigs and the screen surface during assembly.
After assembly and fastening, let the unit rest for 24 hours, then observe a pure white screen from a distance of 50 cm; Retest after high-low temperature cycling to distinguish between reversible and permanent indentations.
Incorporate elastic cushioning foam into the structural design; standardize screw torque control and establish a torque operation SOP; add a full-enveloping EVA cushioning layer to the shipping carton.
Mura (Mura is the most difficult display uniformity defect to control and analyze in the industry; we will explain a separate article dedicated to explaining this issue in detail.)
Brightness or color unevenness in the LCD display area. This includes: cloud-like shadows; localized dark spots; rippled areas; and color inconsistencies.
1. Uneven dot printing on the backlight light guide plate and thickness variations in the diffuser;
2. uneven coating on the LCD cell;
3. Inconsistent thickness of the optical bonding adhesive layer;
4. Thermal deformation of the backlight film caused by prolonged exposure to high temperatures.
Full-scale grayscale image testing, combined with an imaging-type luminance and chromaticity analyzer, quantifies differences in screen brightness uniformity and classifies them by grade.
100% incoming inspection of backlight films; closed-loop control of coating process parameters for LCD cells; use of fully automated vacuum lamination equipment for optical lamination to control adhesive thickness tolerances.
Light Leakage
Unexpected light leakage from the backlight system occurs at the screen edges, corners, or in localized areas.
1. Excessive assembly gaps in the backlight adhesive frame, causing light to escape through the gaps;
2. Offset in the cutting of the panel’s polarizing film;
3. The bezel compresses the panel during final assembly, causing deformation of the light-blocking structure;
4. Light leakage caused by compression, drops, or severe vibrations during transportation.
With a completely black screen, ambient illuminance of 400 lux, and a viewing distance of 70 cm, observe the width and area of edge light leakage from multiple angles.
Optimize the backlight light-blocking structure; perform 100% inspection of the light-blocking adhesive on the panel bezel; standardize assembly jigs for the complete unit to prevent bezel misalignment and compression.
Newton Rings
Concentric rings of light and dark interference patterns, clearly visible under strong light, commonly found in air gaps where the cover glass, touchscreen, and LCD panel are not fully laminated.
1. An air layer exists between the cover glass and the LCD panel, causing slight deformation of the two optical planes;
2. Deviations in the flatness of the cover glass;
3. Deformation of the laminated optical layers when the screen is subjected to pressure.
Observe pure white or light gray images at a 45° viewing angle to distinguish the diameter and number of rings.
Fill the air layer with full-lamination optical adhesive; Select ultra-white cover glass with high flatness; Eliminate localized stress in the cover glass through structural design.
Optical Bonding Bubbles
Visible bubble defects formed during optical bonding between the LCD panel, protective cover glass, and touch screen due to residual air within the adhesive layer or abnormalities in the bonding process.
1. Insufficient vacuum pressure in the vacuum bonding equipment causes air to be trapped within the adhesive layer.
2. Abnormal viscosity and degassing parameters of the optical adhesive.
3. Surface contamination. If dust, oil, or other particulate matter is present on the protective glass, LCD panel, or touch panel prior to lamination, it can interfere with the bonding process, causing air bubbles or foreign particle defects.
4. Bubbles caused by adhesive delamination following high-temperature and high-low temperature cycling.
After bonding, let the assembly stand at room temperature for 2 hours, then perform a full inspection of black, white, and grayscale images; re-inspect for bubble propagation after high- and low-temperature shock testing.
Class 100 cleanroom for lamination; pre-lamination adhesive degassing process; fully automatic vacuum lamination machine with segmented pressure and vacuum control; high-pressure degassing process after lamination.
Since TFT LCD display modules consist of multiple precision components—including glass substrates, liquid crystal materials, polarizing films, backlight systems, optical films, and structural parts—an anomaly in any single component may ultimately manifest as localized brightness abnormalities, color shifts, or uneven display. The following are the most common primary causes of LCD spot damage.
Damage to transistors in the backlight system causes pixels or subpixels to become stuck in the on or off state.
When an LCD panel is subjected to pressure such as due to improper installation design or excessive screw tightening torque—the glass substrate undergoes microscopic deformation. This causes a shift in the alignment of liquid crystal molecules, ultimately resulting in abnormal light transmittance. These changes typically manifest as: white pressure spots; colored ripples; localized brightness variations; or temporary abnormalities that appear when pressure is applied.
Outdoor equipment or enclosed units with inadequate heat dissipation design can lead to sustained high ambient temperatures: the rise in backlight LED temperature accelerates thermal deformation of the film; polarizing films age and discolor due to high temperatures; and optical adhesives delaminate at high temperatures, causing bubbles and discoloration.
Outdoor high-brightness displays exposed to prolonged direct sunlight exhibit overall yellowing and localized yellowish-brown spots; screens without UV-blocking cover plates age 3 to 5 times faster.
Individual LED chip degradation, wear on the light guide plate’s dot pattern, deformation of the diffuser or light-enhancing sheet, and wrinkling of the reflective film can cause fixed bright spots, dark spots, and blocky Mura on the screen.
Bubbles, delamination, and uneven adhesive thickness may occur due to inadequate process control during full-lamination; if the selected adhesive lacks sufficient heat and moisture resistance, localized areas of delamination may appear after prolonged exposure to temperature and humidity fluctuations.
Lack of electrostatic protection in the production workshop and failure to wear ESD wrist straps during assembly can cause instantaneous electrostatic discharge to damage TFT driver ICs and subpixel electrodes, resulting in permanent bright spots or dark spots. This type of damage is irreversible and cannot be repaired.
In high-humidity environments, moisture penetrates the panel and corrodes the electrodes; when cleanliness standards in production and assembly environments are not met, dust adheres to the backlight and lamination interfaces, forming permanent dot-like spots.
Since an LCD display is a precision display device composed of multiple layers of optical structures, some minor irregularities may be inherent characteristics of the liquid crystal manufacturing process. Therefore, a comprehensive evaluation must be conducted, taking into account display test conditions, the inspection environment, defect size, defect count, defect location, and usage scenario requirements.
Observe the screen by cyclically switching between standard test patterns: pure white (to detect dark spots, pressure marks, and yellowing); pure black (to detect bright spots, pixel defects, light leakage, and bubbles); multi-level grayscale (to detect mura and color aberrations); and red, green, and blue monochrome (to detect color pixel anomalies, color shifts, and subpixel defects). The ambient illumination in the testing environment is maintained at a uniform 300–500 lux using a neutral white light source, with no reflections and no direct strong light shining on the screen.
An imaging luminance and colorimeter is used to collect brightness values at matrix points on the screen, calculate the screen’s brightness variation rate, and quantify the severity levels of Mura and bright/dark spots, thereby avoiding subjective errors caused by human vision.
Observe the screen from multiple angles—direct view, 30° to the left and right, and 20° up and down—to distinguish between inherent optical defects in the panel and surface reflections or Newton’s rings. Minor patterns visible only at oblique angles that do not affect normal viewing are deemed acceptable.
Cycle through -40°C to 70°C in a temperature chamber for 48 hours, then re-examine spot changes: if spots disappear after standing still, they are reversible indentations; if spots expand with temperature changes and remain permanently, they indicate irreversible damage to the panel or backlight.
A static image is displayed continuously for 240 hours to investigate issues such as the accumulation of spots and afterimages after long-term use; this test is commonly used for industrial LCD displays with fixed interfaces.
For dot-like spots, disassemble and analyze the panel under a microscope to distinguish between dust objects, liquid crystal damage, electrode breakdown, and underlying causes of bonding bubbles. This is used for process failure analysis.
• ISO 9241 Series: A classification standard for pixel defects in electronic visual displays, clearly defining acceptable thresholds for the size, quantity, and location of bright spots, dark spots, and composite defects; it distinguishes between Grade A and Grade B acceptance levels for industrial panels.
• IEC 61966: General testing specifications for LCD display devices, supplementing detailed criteria for evaluating mura, light leakage, and poor optical bonding; commonly used for high-demand equipment such as medical and military devices.
• Pixel Defects: Grade A industrial LCD displays must have no bright spots or dark spots in the central area, with only a very small number of minute single spots permitted at the edges; Grade B relaxes the limit on the number of defects at the edges;
• Mura: A display is considered as qualified if the brightness difference in a grayscale image is ≤15% and there are no distinct block-like areas of color difference;
• Light Leakage: Slight whitening at the four corners with a width < 2 mm is acceptable, provided there is no patchy light leakage extending into the display area;
• Pressure marks: Temporary stress marks that completely disappear after 24 hours of standing at room temperature are not considered defects; permanent marks are considered defects;
• Bonding Bubbles: No visible bubbles in the active display area; minute bubbles in the non-display border area are acceptable.
The occurrence of LCD spot damage is typically the result of multiple factors acting together; therefore, only relying on post-production inspection and sorting cannot fundamentally solve the problem.
• LCD Panels: Perform 100% inspection of pixels, native mura, and edge light leakage; classify panels into Grade A and Grade B for use;
• Backlight Components: Light guides, diffusers, and LED chips are inspected individually for particles, deformation, and brightness variations;
• Optical adhesives and cover glass: Inspect for flatness, impurities, and UV weather resistance;
• Structural Accessories: Verify the dimensions and compression of cushioning foam and light-blocking adhesive.
After LCD cell cutting and polarizer lamination, perform a full-screen illumination test to reject defective units with inherent dark spots, bright spots, or uneven alignment clouding; such units must not proceed to the backlight assembly process.
Backlight assembly is performed in a Class 100 cleanroom with strict control of dust and foreign particles; LEDs are sorted by BIN for brightness matching, and light guide plate positioning is standardized to eliminate film wrinkles and misalignment.
A dual-process system combining fully automated vacuum lamination and high-pressure degassing; adhesive undergoes pre-application degassing at a constant temperature; workshop temperature and humidity are maintained at constant levels to control adhesive layer thickness tolerances, thereby eliminating bubbles and delamination.
Finished units undergo 72 hours of powered high-temperature aging to proactively identify high-temperature-induced Mura, bubbles, and backlight spots; units are retested after aging to screen out defective units.
Standardized black, white, and gray screen inspections are performed, along with spot checks for brightness uniformity, strictly adhering to ISO-specified viewing distances and environmental standards for evaluation.
Bare screens are fully covered with anti-static protective film; finished units are packed in custom-made, one-piece EVA cushioning liners with dividers to prevent screen stacking and compression; outer cartons are reinforced with shock-absorbing honeycomb panels and labeled with “Handle with Care” instructions.
• Supplier Qualification Review: Verify the manufacturer’s optical bonding technology and in-house backlight production capabilities, as well as the accreditation of their ISO testing laboratory;
• Establish Acceptance Criteria in Advance: Sign a technical agreement specifying quantification standards for ISO 9241-307 grades, light leakage, Mura, and air bubbles to avoid acceptance disputes later on;
• Clarify warranty terms: Agree on the warranty period for irreversible damage such as LCD spot damages, as well as return and replacement standards.
• Thermal Management Optimization: Design independent cooling air ducts for outdoor and enclosed equipment to reduce the screen’s operating temperature during prolonged use;
• Installation Structure Optimization: Provide cushioning gaps, incorporate elastic foam, and standardize screw torque specifications;
• Environmental Protection: Use UV-resistant cover plates and moisture-proof sealing structures for outdoor equipment.
• Installation Procedures: Standardize the use of torque wrenches; prohibit forceful tightening and direct contact between hard objects and the screen;
• Transportation Controls: Customized cushioning packaging for each unit; stacking without protection is prohibited;
• Warehouse Storage: Avoid warehouses with high temperatures or direct sunlight; store units vertically; do not lay them flat or place heavy objects on top of the screens

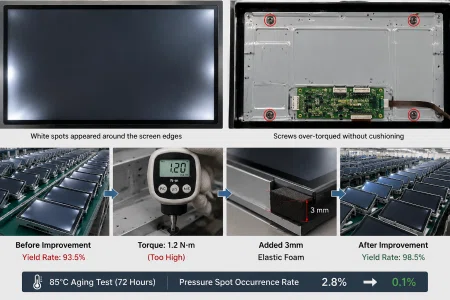

A certain automation equipment manufacturer uniformly set the screw tightening torque to 1.2 N·m, exceeding the screen’s tolerance threshold. After the units were stored in the warehouse for 3 days, patchy white spots appeared around the edges of the screens in large numbers. The yield rate prior to inspection was 93.5%. Root Cause: The bezel-less design lacked cushioning foam, causing the screws to compress the LCD layer of the panel and form permanent indentations; Corrective Action: Screw torque was reduced to 0.4–0.6 N·m, and 3 mm of elastic foam was added to the bezel. After testing, the yield rate improved to 98.5%. Following a 72-hour aging test at 85°C, the incidence of pressure spots decreased from 2.8% to 0.1%.

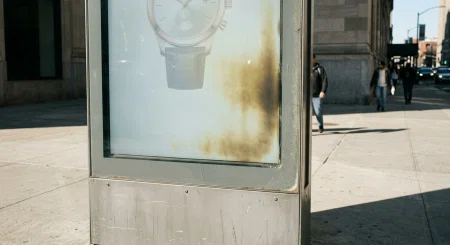

After 6 months of use, yellowish-brown spots appeared on the right side of the outdoor digital signage screen, accompanied by significant brightness decay; Root Cause: The cover glass lacked a UV-blocking coating, allowing UV rays to continuously degrade the polarizing film; Remedial Measures: Replaced the cover glass with UV-resistant tempered glass, optimized the unit’s heat dissipation airflow, and added a sunshade structure.

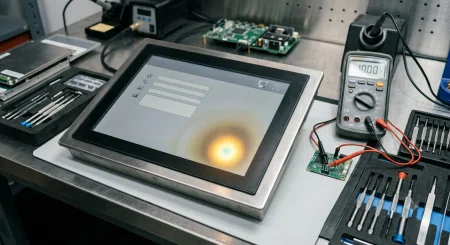

After one year of use in an industrial HMI, circular bright spots appeared at the bottom of the screen; Upon disassembly, a single LED chip was found to have abnormally high brightness, causing the diffuser to burn out; Corrective Action: Pair LEDs by bin, add an overcurrent protection circuit for the backlight, and extend aging tests to 96 hours to pre-screen for degraded LEDs.
Q: What causes white spots on LCD displays?
A: There are four types: reversible indentation-caused white spots, backlight particle-caused white spots, lamination bubble-caused white spots, and UV-aging-caused yellow spots. These correspond to structural compression, foreign objects in the backlight, optical bonding process defects, and prolonged exposure to sunlight, respectively.
Q: Can pressure marks on the screen of LCD displays be repaired or removed?
A: Temporary indentations may fade over time with rest; however, severe, permanent pressure marks in the LCD layer cannot be repaired and require panel replacement.
Q: How can I distinguish between Mura and edge light leakage?
A: Mura refers to large-area, gradient-like haze that can appear in the center or across the entire screen; light leakage is concentrated only at the four edges and corners of the screen, causing a white cast on pure black screens, while grayscale images show no significant color discrepancies.
Q: Can high-temperature environments permanently damage an LCD panel?
A: Prolonged exposure to temperatures above 70°C can cause the polarizing film to age, the backlight film to warp, and the adhesive to delaminate, resulting in irreversible spot damage.
Q: Can full bonding of optical bonding prevent LCD damages?
A: It only eliminates Newton’s rings and trapped air bubbles caused by air layers; spots resulting from mechanical pressure, static electricity, backlight failure, or UV aging cannot be resolved through bonding.
Q: Does UV exposure cause permanent discoloration?
A: Yes. Prolonged UV exposure continuously damages the polarization layer of the polarizing film, forming permanent yellowish-brown spots that cannot be reversed.
Q: How can LCD spot damages be quickly detected before shipment?
A: Perform a black, white, and gray screen-on test, along with spot checks for brightness uniformity, combined with short-cycle high- and low-temperature testing to accelerate the exposure of latent defects.
Q: Can various types of LCD spot damage be repaired?
A: Only minor air bubbles during optical bonding can be reworked by rebonding; bright spots, dark spots, pressure marks, UV-induced yellow spots, and backlight damage cannot be repaired locally and require replacement of the entire screen.
Q: How can LCD spot damages be prevented in outdoor devices?
A: ① Hardware: UV-blocking tempered glass cover + OCA optical full bonding + high-temperature-resistant industrial backlight; ② Structure: Device-wide heat dissipation channels + sun-shielding bezel + elastic cushioning foam around the edges; ③ Manufacturing: Standardized clamping torque, shock- and moisture-resistant packaging; ④ Usage: Avoid prolonged direct sunlight at midday and ensure regular ventilation for heat dissipation.
Hengxinda believes that LCD spot damage cannot be resolved solely through outgoing inspection; rather, they require full-lifecycle quality management spanning product selection, structural design, optical bonding, manufacturing, reliability verification, and on-site application. We possess end-to-end industrial LCD dispaly support capabilities, offering standardized industrial LCD panels, custom optival bonding services, capacitive and resistive touch panel solutions, and custom LCD driver boards. We also offer comprehensive spot damage detection and factory quality control technical support, delivering complete, highly stable, and low-defect-rate display solutions for customers in automation, medical, automotive, and outdoor specialty display applications.
