In-depth Analysis of On-Cell Touch Technology: Key Parameters for TFT-LCD Display Module Selection

2026-01-08

In the process of purchasing LCD TFT panels, the choice of touch technology directly affects the end-user experience, cost control, and application adaptability. When selecting industrial-grade or commercial-grade LCD TFT panels, you may often hear about "On-cell Touch". It seems more advanced than traditional touch screens, but what exactly are its advantages? Is it suitable for your project? Today, we will comprehensively introduce this technology from five perspectives, helping you make a more informed decision.

Download PDF Send Message

What is On-Cell Touch Technology?

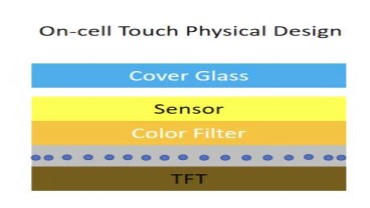

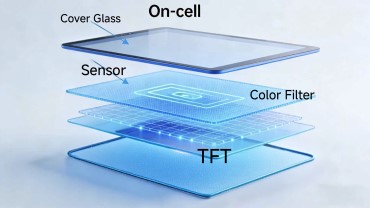

On-cell is an integrated technology where the touch sensor is built directly into the LCD display panel itself. Unlike traditional add-on touch screens, On-cell embeds the touch-sensing layer inside the color filter glass substrate of the LCD TFT panel. This creates a streamlined, two-layer structure: protective cover glass + a LCD TFT display panel with integrated touch. In short, it enables the LCD TFT display panel itself to have touch capability without the need for an additional independent touch layer.

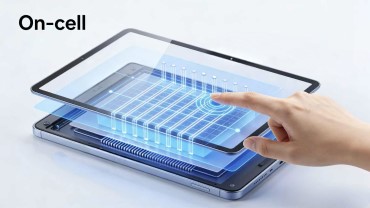

Modern On-cell touch technology is all based on the projected capacitive touch principle. Its core lies in forming a sensing matrix through transparent electrodes (usually ITO material) to detect capacitance changes caused by human touch, thereby locating the touch position. In other words, when you touch the screen, what your finger directly contacts is the cover glass on the outermost layer of the LCD TFT panel. The touch electrodes inside the LCD TFT panel will detect the capacitance change brought by your finger. In this way, the touch layer becomes part of the internal structure of the liquid crystal cell, rather than an external additional layer.

On-Cell Touch Technology: Advantages & Disadvantages

Comparison Dimension	Advantages of On-Cell Touch	Limitations of On-Cell Touch
Appearance Design	✅Thinner Profile: Eliminates separate touch layer, reduces thickness by 25-30%, ideal for ultra-slim devices ✅Cleaner Design: Integrated structure with no additional bonding layers
Display Quality	✅Better Clarity: Light transmittance increased by 8-10%, reduced light loss ✅More Vibrant Colors: Enhanced color saturation and contrast ratio
Reliability & Durability	✅Enhanced Protection: Improved dust and water resistance ✅Better Impact Resistance: Integrated structure with good shock absorption ✅More Stable: Reduced risk of delamination over long-term use
Anti-Interference Capability		⚠️Potential for Interference: Touch electrodes close to display circuits, vulnerable to EMI; requires careful circuit design
Cost & Supply Chain	✅Better Total Cost: Reduced materials and processes, lower mass production costs ✅Higher Yield: Mature process technology ensures stable production	⚠️Lower Customization Flexibility: Touch and display are deeply integrated; difficult to replace touch solution separately later
Surface Requirements		⚠️Higher Demand for Cover Glass: Requires thinner, higher-strength glass to ensure touch sensitivity and durability.
Ideal Applications	Industrial HMI, self-service terminals, portable devices, medical equipment, automotive displays—scenarios prioritizing slimness, reliability, and display quality

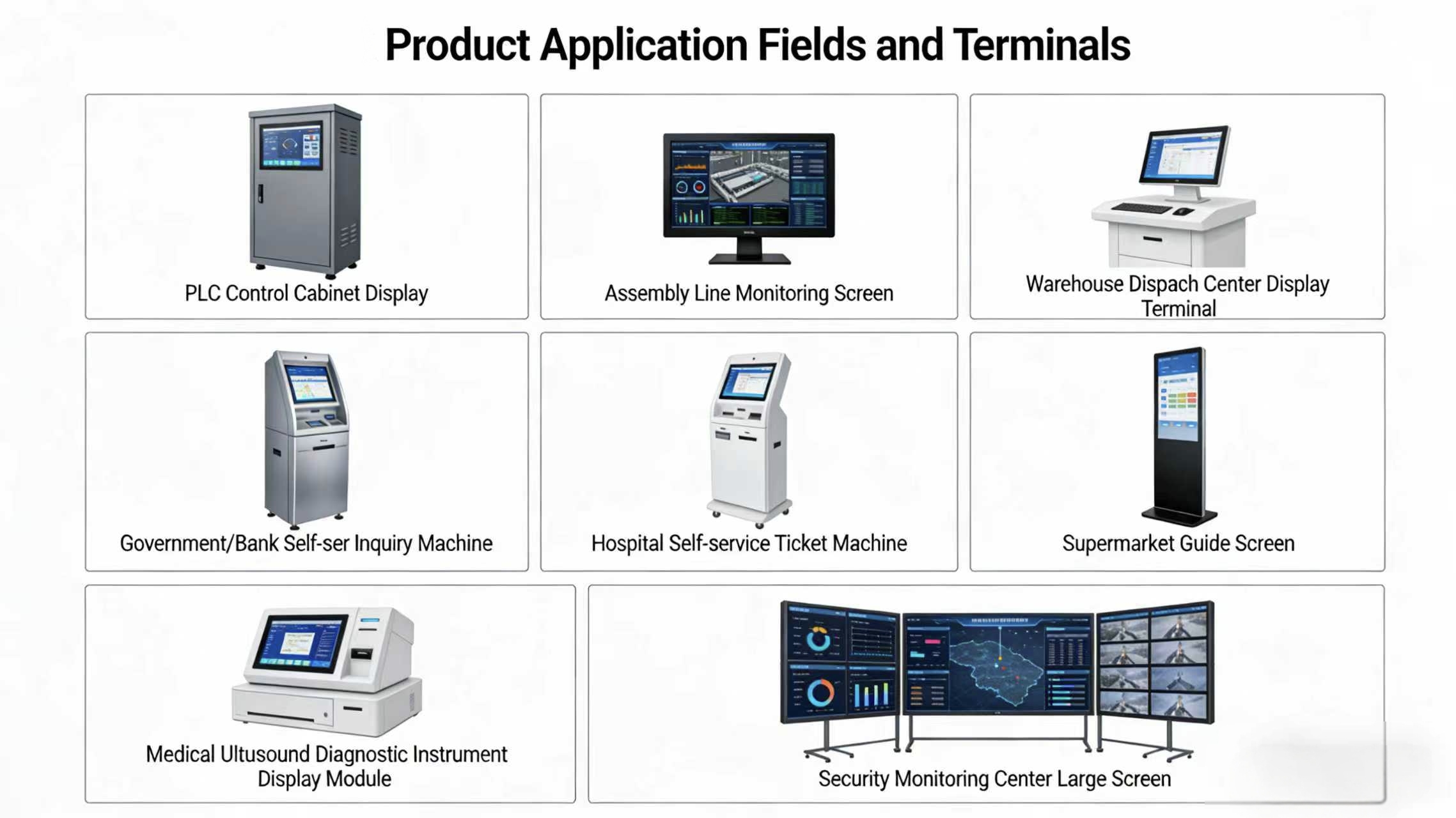

On-Cell Touch LCD TFT Panels Application Scenarios

1.Consumer Electronics Field: Mid-to-low-end smartphones, tablets, smart watches, portable players, etc. On-Cell technology balances thinness, lightness and touch experience.

2. Automotive Electronics Field: In-vehicle central control screens, instrument panels, in-vehicle navigation screens, etc. On-Cell technology enhances impact resistance and anti-interference capability.

3. Industrial Control Field: Industrial tablets, industrial all-in-one machines, equipment operation panels, and production line operation screensetc.. The fast response and high stability of On-Cell technology make it an ideal choice.

4. Medical Equipment Field: Display screens of medical monitoring equipment (such as blood pressure monitors, blood glucose meters, portable ultrasound machines). The thin and light design and stable touch of On-Cell technology make it stand out.

5. Retail and Self-Service Terminals: POS machines, self-ordering machinescreens, information inquiry machinescreens etc., which require bright and clear display and smooth touch experience.

6. Smart Home and IoT: High-end smart central control panels, video doorbells, home appliance control screens etc., pursuing aesthetic ultra-thin design.

How to Determine if On-Cell Touch LCD TFT Panel is Suitable for Your Project?

Consider the following key factors:

1.Product Positioning: Is it targeted at the mid-to-high-end market?

2. Design Requirements: Do you pursue ultra-thin and lightweight design?

3. Display Requirements: Do you need excellent visual effects?

4. Touch Experience: Do you value sensitive and accurate touch control?

5. Cost Budget: Can you accept an appropriate technology premium?

If the answer to most of the above questions is "Yes", then On-cell Touch technology may be an ideal choice for your product.

HXD's On-Cell Touch LCD TFT Panel Product Portfolio

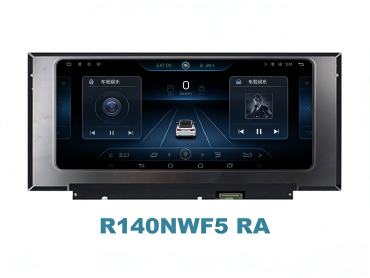

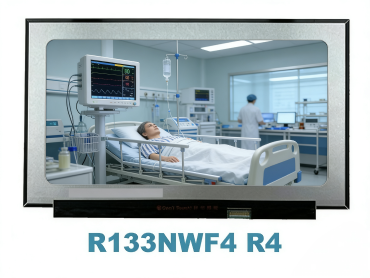

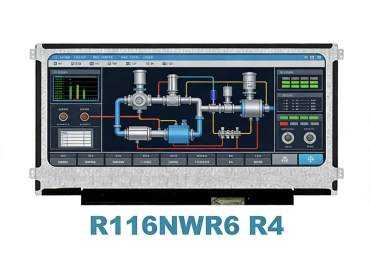

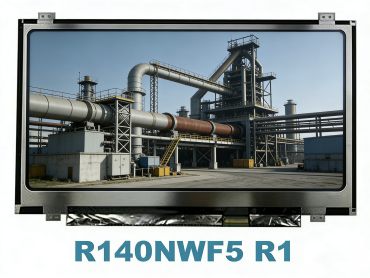

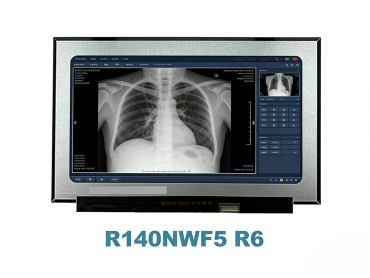

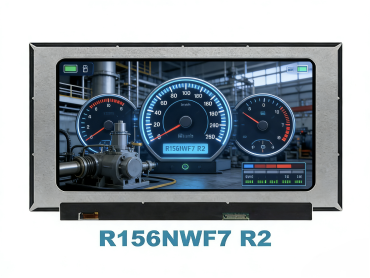

Panel Model	R116NWR6 R4	R133NWF4 R4	R140NWF5 R1	R140NWF5 R6	R140NWF5 RA	R156NWF7 R2
Panel Brand	IVO
Panel Size (inch)	11.6	13.3	14.0	14.0	14.0	15.6
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA, 135 PPI	1920(RGB)×1080, FHD, 166 PPI	1920(RGB)×1080, FHD, 157 PPI	1920(RGB)×1080, FHD, 157 PPI	1920(RGB)×1080, FHD, 157 PPI	1920(RGB)×1080, FHD, 141 PPI
Pixel Layout	RGB Vertical Stripe
Active Area （W×H）mm	256.125(W)×144(H)	293.76(W)×165.24(H)	309.31(W)×173.99(H)	309.31(W)×173.99(H)	309.31(W)×173.99(H)	344.16(W)×193.59(H)
Outline Dimensions (W×H×D）mm	278×168×3.2	305.26×177.55×4.5	320.4×205.1×3.2	320.4×205.1×3.2	315.81×197.55×3	350.66×214.74×3.2
Surface Treatment	Clear	Matte	Matte, Hard Coating (3H)	Matte, Hard Coating (3H)	Matte, Hard Coating (3H)	Matte, Hard Coating (3H)
Luminance (Typ.)	220 cd/m²	300 cd/m²	250 cd/m²	250 cd/m²	300 cd/m²	300 cd/m²
Contrast Ratio (Typ.)	600:1 (TM)	700:1 (Transmissive)	800:1 (Transmissive)	800:1 (Transmissive)	800:1 (TM)	1200:1 (TM)
Viewing Angle (Typ.) (CR≥10)	45/45/15/35	85/85/85/85	85/85/85/85	85/85/85/85	85/85/85/85	89/89/89/89
Display Mode	TN, Normally White, Transmissive	IPS, Normally Black, Transmissive	IPS, Normally Black, Transmissive	IPS, Normally Black, Transmissive	IPS, Normally Black, Transmissive	IPS, Normally Black, Transmissive
Optimum View Direction	6 o'clock	All Directions	All Directions	All Directions	All Directions	All Directions
Response Time (Typ.)	25 ms (Tr/+Td)	25 ms (Tr+Td)	30 ms (Tr+Td)	30 ms (Tr+Td)	30 ms (Tr+Td)	30 ms (Tr+Td)
Display Colors	262K, 45% NTSC	16.7M, 72% NTSC	262K, 45% NTSC	262K, 45% NTSC	262K, 45% NTSC	16.7M, 45% NTSC
Backlight	WLED, 15K hours, with LED Driver
Frame Rate	60 Hz
Touch Technology	On-Cell Touch, I²C	On-Cell Touch, I²C	On-Cell Touch, USB	On-Cell Touch, USB	On-Cell Touch, USB	On-Cell Touch, I²C
Form Factor	Slim Panel (PCBA Flat, Thickness ≤3.2mm)	Slim Panel (PCBA Bent, Thickness ≤3.0mm)	Slim Panel (PCBA Flat, Thickness ≤3.2mm)	Slim Panel (PCBA Flat, Thickness ≤3.2mm)	Slim Panel (PCBA Flat, Thickness ≤3.2mm)	Slim Panel (PCBA Flat, Thickness ≤3.2mm)
Signal Interface	eDP (1 Lane),eDP 1.2, 40 pins, Connector	eDP (2 Lanes), eDP 1.3, 40 pins, Connector	eDP (2 Lanes), eDP 1.2, HBR1 (2.7G/lane), 40 pins, Connector,	eDP (2 Lanes), eDP 1.2, 40 pins, Connector,	eDP (2 Lanes), eDP 1.2, 40 pins, Connector	eDP (2 Lanes), eDP 1.2, 40 pins, Connector
Supply Voltage (Typ.)	3.3 V
Environment Temperature	Operating: 0~50 °C; Storage: -20~60 °C

Why Partner with HXD for On-Cell Touch LCD TFT Displays?

As a leading domestic manufacturer of LCD TFT panels and a supplier of LCD TFT display module solutions, HXD specializes in the R&D and production of LCD TFT display products with high performance, outstanding cost-effectiveness and reliable quality. And we can also offer tailor-made LCD TFT display solutions according to your personalized needs. Our goal is to help you reduce potential risks of equipment maintenance, and improve your process efficiency and revenue. Whether you are exploring new LCD TFT display solutions or looking to establish a long-term and stable supply partnership, our team is ready to provide you with free professional consulting, the latest product information, and free quotation support with strong market competitiveness.

Why Choose HXDLCD?

One-stop Solution: In addition to fully customized liquid crystal display modules, we also provide supporting control boards, digital cables and touch solutions — all products can be purchased together to achieve seamless integration.
Customization Flexibility: Product dimensions, touch screen types and control board options can all be customized to meet the specific needs of your projects.
Secure After-Sales Service: Warranty Coverage: We offer a 1-year official warranty. For screens with non-human damage within the warranty period, free replacement or repair is provided.

Technology defines experience, and choices shape products. Welcome to contact us 📮&☎️ to learn more about how On-Cell technology can empower the success of your products.
