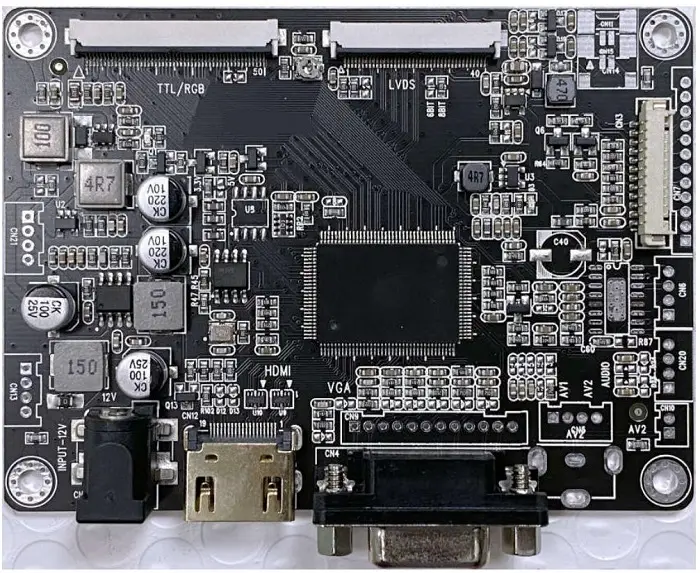

HXD62HV-V1 LCD display driver board is a multi-interface industrial LCD driver board that supports HDMI and VGA signal inputs, as well as LVDS and TTL signal outputs. It supports wide-range power supply and industrial-grade wide temperature operation. Featuring built-in backlight driver and T-CON circuits, HXD62HV-V1 LCD control board offers comprehensive functionality, convenient debugging and stable operation, providing a one-stop solution for LCD driver requirements in industrial control equipment.
• Wide voltage input
HXD62HV-V1 LCD control board supports wide voltage input ranging from 8V to 20V, with 12V as the typical voltage. When the LCD panel is powered by 12V, the board must also be supplied with 12V.
• Wide temperature range
HXD62HV-V1 LCD panel driver board ranges from -20℃ to +70℃. It maintains steady and reliable performance even in complex and harsh industrial working conditions, adapting to various application scenarios.
• On-board LED backlight driver circuit
Onboard LED backlight driver circuit, supports 9~25V driving voltage for small & medium-size LED backlight. Backlight brightness adjustable via PWM duty cycle control.
• Built-in T-CON circuit
Built-in T-CON circuit, directly drives small & medium-size LVDS/TTL LCD panels without onboard T-CON chip.
• Optional output interfaces
HXD62HV-V1 LCD control board is equipped with two types of display output ports: LVDS and TTL. As a professional LVDS board controller, it provides LVDS 0.5mm-40pin single 6/8bit interface, as well as TTL 18bit/24bit interface to match different LCD display panels flexibly.
Model
HXD62HV-V1
Outline Dimension
96mm×70 mm×16.5mm (L×W×H)
Display Color
24-bit (3×8, 16.7M Colors)
Panel Interface
LVDS、TTL
Resolution Coverage
LCD panels from 480×272 up to 1366×768
Signal Input
Input Signal Type
VGA, HDMI, AV (NC by default)
Input Signal Range
HDMI Input Range
PC (VGA/HDMI) up to 1920×1200
VGA Input Range
Supply Voltage
Min:10.8V / Typical:12V / Max:13.2V
Operating Current
Min:0.05A / Typical:0.1A / Max:0.3A
Standby Power
＜0.8W
Panel Supply Voltage
3.3V/5V/12V selectable via jumper
Max Panel Load (Ambient Temp.)
1.8A@3 .3V、2.5A@5V、3.5A@12V (12V displays are limited by the power supply's capacity)
Operation Interface
Visual OSD menu
Communication Interface
Digital buttons, infrared(IR)，I²C
Operating Temperature
-20℃～70℃,－30℃～70℃ (excluding the main chip)
MTBF
＞100,000 Hours

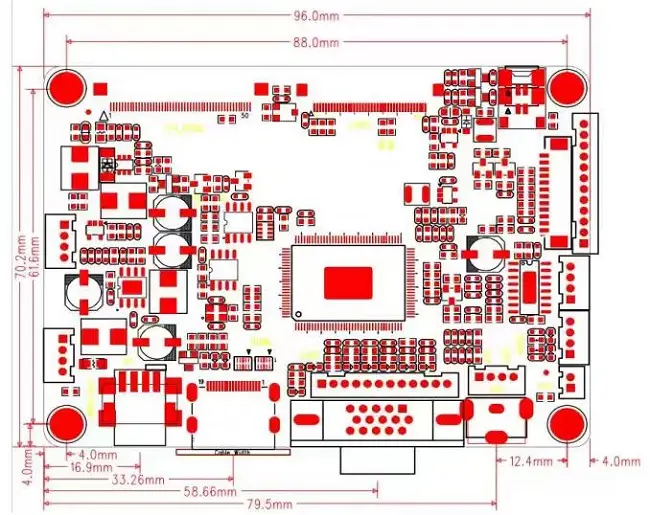

Below is the dimension drawing of HXD62HV-V1 universal small & medium-size LCD controller board, please refer to the datasheet for complete detailed information:
HXD62HV-V1 LCD controller board utilises a standard 0.5mm 50-pin top contact FPC connector commonly found in industrial applications. The design allows for easy installation and removal of the FFC cable, ensuring high assembly efficiency. It offers the advantages of an integrated cable assembly, ultra-slim design to save space, and quick installation and removal. Modifying the cable later is inconvenient, as individual wires cannot be replaced separately. When selecting a compatible LCD panel for the LCD driver board, you need to verify whether the pin definition of the LCD panel interface matches that of the screen motherboard. The detailed pin definitions for the 50-pin TTL output interface are listed in the table below. Please refer to the product datasheet for further information.
Q1: Which LCD screens are compatible with the HXD62HV-V1 LCD panel driver board?
A: HXD62HV-V1 LCD control board is compatible with TFT LCD displays that operate on 3.3V or 5V and feature LVDS or TTL interfaces. The LVDS interface adopts 0.5mm-40pin single 6/8bit, while the TTL interface works with 18bit/24bit. With onboard integrated T-CON circuit, HXD62HV-V1 LCD driver board can directly drive small & medium-sized TFT panels without T-CON. Equipped with LED backlight driver circuit, HXD62HV-V1 LCD control board supports LED backlight with driving voltage ranging from 9V to 25V.
Q2: Is this driver board's FFC 0.5 mm pitch, 50-pin TTL interface compatible with every 50-pin TTL LCD screen universally?
A: Not all 50-pin TTL LCD screens are directly compatible. Only LCD panels with identical pin definitions, signal sequencing and voltage standards can be plugged in directly. For most screens with the same pitch and pin count, the pin definitions must still be checked. They cannot be assumed to be compatible by default.
Q3: Does the HXD62HV-V1 driver board support customization?
A: Features such as the OSD menu, over-temperature protection, dedicated backlighting and special interfaces can be customized, our technical team will develop these as required. Reserved NC interfaces can be enabled upon request. If you have any needs, please provide your detailed specifications and application requirements, and we will create a tailored solution for you.
Q4: Do your LCD display driver boards have a warranty period?
A: Yes, all LCD control boards come with a one-year warranty. Within the warranty period, we provide after-sales maintenance and replacement services for any product quality issues arising under normal operating conditions. We offer free technical support service during this period.
Q5: Can I get a sample before mass production?
A: Yes. Sample testing is available for evaluation and compatibility verification.
HXD285DTC-V1 LCD control board offers stable performance and a wide range of features, enabling the conversion of HDMI, VGA, DP and Type-C signals for output as LVDS or eDP signals. This driver board supports resolutions up to 2560×1600(2K) and operates on a DC input voltage range of 8V to 24V, making it ideal for industrial displays, embedded devices and custom monitor solutions.
Product Manager:Mark Si
HXD2690H-V1 LCD panel driver board is designed for small and medium-sized LCD display panels and supports multiple resolutions ranging from 480×272 up to 1920×1200. HXD2690H-V1 LCD control board provides flexible signal conversion from HDMI interface to output options including LVDS and TTL. HXD2690H-V1 is a compact small-size LCD driver board with dimensions of 78mm×50mm×13.5mm, requiring minimal installation space for easy embedded integration.
HXD2680HV-V9.1 LCD control board comes with versatile interfaces. It is a TTL and LVDS controller board with VGA, HDMI and AV signals inputs. This LCD panel driver board integrates LED backlight driver circuit and T-CON circuit, and supports backlight brightness adjustment via PWM duty cycle. Supporting resolutions up to 1920×1200. It is ideal for industrial control panels, transportation display systems, and self-service kiosks displays.
