HXD53HV-V1 LCD control board comes with versatile interfaces. It is a LVDS controller board with HDMI and VGA signals inputs. This LCD display driver board integrates LED backlight driver circuit, and supports backlight brightness adjustment via PWM duty cycle. Supporting resolutions up to 1920×1200. Supports self-test mode and burn-in mode. Easy operation and reliable performance.
| Model | HXD53HV-V1 |
| Maximum resolution | 1920×1200 |
| Mechanical Dimension | 96mm×70 mm×16.5mm |
| Operating Temperature | -20~80℃ |
| Input Interface | HDMI, VGA |
| Output Interface | LVDS |
• Wide temperature range
With a wide operating temperature of -20℃ ~ +80℃, HXD53HV-V1 LCD control board maintains stable continuous operation in extreme cold and heat. Suitable for long-term uninterrupted service in outdoor units, vehicle-mounted systems, industrial cabinets and cold storage equipment, complying with industrial 24/7 operation standards.
• Wide voltage input
HXD53HV-V1 LCD panel driver board supports wide DC input voltage ranging from 8V to 25V, with 12V as the typical operating supply voltage. Note: If the matched LCD panel is designed for 12V power supply, the LCD control board must also be powered by 12V accordingly.
• Built-in LED backlight driver, supports direct high-brightness panel use
Onboard integrated LED backlight driving circuit, supporting 9~29V LED backlight for small & medium-size screens and directly compatible with high-brightness display panels without extra driver modules.
• PWM brightness adjustment
Backlight powered by 12V, PWM duty cycle brightness adjustment supported, built-in burn-in mode for mass production aging test.
• Equipped with self-test mode and burn-in mode
Supports both self-test mode and burn-in mode. A shortcut key combination (Menu + Left) allows one-tap access to self-test mode for quick troubleshooting of wiring errors, dead pixels, color shifts and other issues. The burn-in mode helps uncover potential component defects for easier debugging and mass production quality inspection.
✅️ Need more functions?
Contact us for custom solutions! Apart from the standard functions, our LCD control board comes with plenty of reserved functions and unused interfaces, which are set to NC by factory default. If you have extra demands for additional functions, signal ports or hardware configurations, please feel free to contact us. Our team can conduct personalized development and customization to fully fit your project.
| Model | HXD53HV-V1 | ||
| Outline Dimension | 96mm×70 mm×16.5mm (L×W×H) | ||
| Display Color | 24-bit (16.7M Colors) | ||
| Panel Interface | LVDS | ||
| Resolution Coverage | LCD panels from 480×272 up to 1920×1200 | ||
| Signal Input | Input Signal Type | VGA, HDMI | |
| Input Signal Range | HDMI Input Range | PC (VGA/HDMI) up to 1920×1200 | |
| VGA Input Range | PC (VGA/HDMI) up to 1920×1200 | ||
| Supply Voltage | Min:8V / Typical:12V / Max:24V | ||
| Operating Current | Min:0.1A / Typical:0.15A / Max:0.2A | ||
| Standby Power | ＜0.5W | ||
| Panel Supply Voltage | 3.3V/5V selectable via jumper | ||
| Max Panel Load (Ambient Temp.) | 1.8A@3 .3V、2.5A@5V、3.5A@12V (12V displays are limited by the power supply's capacity) | ||
| Operation Interface | Visual OSD menu | ||
| Communication Interface | Digital buttons, infrared(IR) | ||
| Operating Temperature | -20℃～80℃ | ||
| MTBF | ＞100,000 Hours | ||

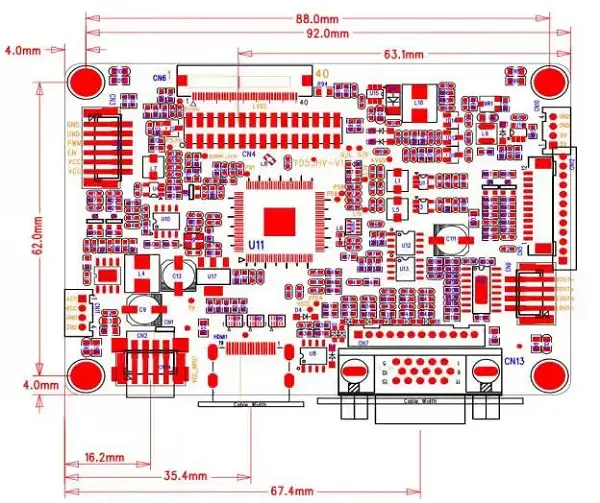

The dimension layout drawing of HXD53HV-V1 screen motherboard is shown below:

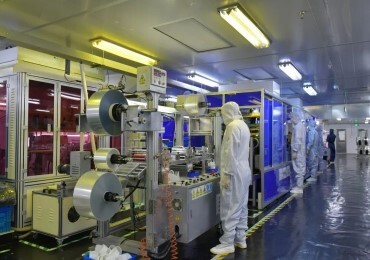

Hengxinda is a Chinese supplier and manufacturer specializing in industrial LCD screens and core LCD display components. With 15 years of deep expertise in the industrial display, we provide competitive LCD display solutions to customers worldwide through our unique dual-engine model of direct supply from original equipment manufacturers and customization at our own factories.

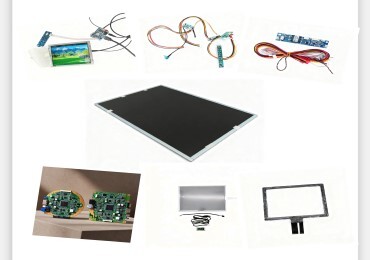

We have established long-term, stable strategic partnerships with the world’s leading panel manufacturers and maintain a consistent supply of original Grade A industrial LCD screens ranging from 3.5 to 32 inches from the following brands: AUO, BOE, IVO, Sharp, Chimei Innolux, Kyocera, and others. In addition to LCD panel distribution, we specialize in the R&D and production of related accessories. Our product lines include: capacitive touch screens, resistive touch screens, infrared touch screens, LCD driver boards, LCD backlight LED driver boards, knob dimming modules, button dimming modules (for brightness adjustment in special environments such as medical, marine, and aviation applications), and cable : LVDS cables, eDP cables, and custom industrial display cables across various categories.
