HXD285DTC-V1 LCD control board offers stable performance and a wide range of features, enabling the conversion of HDMI, VGA, DP and Type-C signals for output as LVDS or eDP signals. This driver board supports resolutions up to 2560×1600(2K) and operates on a DC input voltage range of 8V to 24V, making it ideal for industrial displays, embedded devices and custom monitor solutions.
| Model | HXD285DTC-V1 |
| Maximum resolution | 2560×1600 (2K) |
| Mechanical Dimension | 125.4mm×70.7mm×16.5 mm |
| Operating Temperature | -20~70℃ |
| Input Interface | HDMI, VGA, DP, Type-C |
| Output Interface | LVDS, eDP |
♦ Wide voltage input
DC 8V~24V wide voltage input with 12V as typical rated voltage. Important note: if the matched LCD display panel is powered by 12V, the controller board must adopt 12V input.
♦ Wide operating temperature
Working temperature ranges from -20℃ to +70℃. It maintains steady and reliable performance even in complex and harsh industrial working conditions, adapting to various application scenarios.
♦ Built-in LED backlight driver circuit
The onboard LED drive unit is well-designed to stably power and drive LED backlights of small and medium-sized LCD display panels.
♦ Flexible backlight configuration
Backlight power supports 5V/12V selection with 12V set as factory default. It features smooth PWM brightness adjustment and is equipped with aging mode for production testing.
♦ Multiple output interfaces
HXD285DTC-V1 LCD controller board comes with multiple output interfaces, serving as a versatile EDP controller board and LVDS controller board. As a standard 30 pin edp controller board, it works perfectly with mainstream eDP LCD panels. The additional 40 pin eDP and 20 pin dual-row straight eDP ports extend its compatibility with more eDP displays. The 2×15-pin, 2.0 mm pitch, 180° straight-through, dual-row socket delivers LVDS signal output for traditional LVDS screens, this 30 pin lcd controller board is widely compatible with LCD panels of various cables and interfaces, ideal for diverse display integration projects.
♦ Reliable performance for long-term operation. Easy integration into embedded systems. Stable signal transmission for industrial use.
| Model | HXD285DTC-V1 | ||
| Outline Dimension | 125.4mm×70 .7 mm×16 .5mm (L×W×H) | ||
| Display Color | 24-bit (16.7M Colors) | ||
| Panel Interface | LVDS、eDP | ||
| Resolution Coverage | LCD panels from 480×272 up to 2560×1600 | ||
| Signal Input | Input Signal Type | VGA, HDMI, DP | |
| Input Signal Range | HDMI Input Range | PC (VGA/HDMI) up to 2560×1600 | |
| VGA Input Range | PC (VGA/HDMI) up to 2560×1600 | ||
| Supply Voltage | Min:8V / Typical:12V / Max:24V | ||
| Operating Current | Min:0.15A / Typical:0.17A / Max:0.25A | ||
| Standby Power | ＜0.5W | ||
| Panel Supply Voltage | 3.3V/5V/12V selectable via jumper | ||
| Max Panel Load (Ambient Temp.) | 1.2A@3 .3V、2.5A@5V、3.5A@12V (12V displays are limited by the power supply's capacity) | ||
| Operation Interface | Visual OSD menu | ||
| Communication Interface | Digital buttons, infrared(IR) | ||
| Operating Temperature | -20℃～70℃,－30℃～70℃ (excluding the main chip) | ||
| MTBF | ＞100,000 Hours | ||

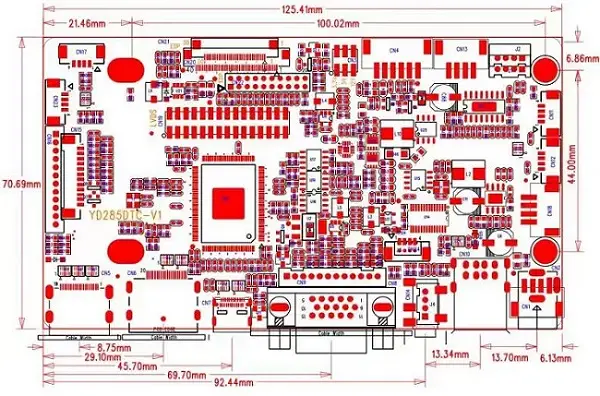

Layout & dimensional drawing of HXD285DTC-V1 universal LCD controller board shown below for your reference:
The following is a partial list of compatible LCD display models. If you have any other LCD display screens compatibility requirements, please feel free to contact us, we will provide you with suitable solutions for LCD panels with controller boards, along with matching cables.
| Inch | Brand | Panel Model | Resolution | Brightness(cd/㎡) | Interface | Operating Temperature |
| 6.5" | AUO | 640×480 | 500 | LVDS | -20 ~ 70°C | |
| AUO | G065VN01 V2 | 640×480 | 800 | LVDS | -30 ~ 80°C | |
| 7" | Innolux | G070ACE-LH1 | 800×480 | 1000 | LVDS | -30 ~ 80°C |
| AUO | 800×480 | 400 | LVDS | -30 ~ 85°C | ||
| 8.4" | AUO | G084SN05 V904 | 800×600 | 450 | LVDS | -20 ~ 70°C |
| AUO | G084SN03 V3 | 800×600 | 250 | LVDS | -20 ~ 70°C | |
| 10.1" | BOE | GV101WXM-N85 | 1280×800 | 430 | LVDS | -20 ~ 70°C |
| Innolux | G101ICE-LH2 | 1280×800 | 1200 | LVDS | -30 ~ 80°C | |
| AUO | G101EAN02.1 | 1280×800 | 400 | LVDS | -20 ~ 60°C | |
| BOE | GV101WXM-N81-D850 | 1280×800 | 250 | eDP | 0 ~ 50°C | |
| 10.4" | Innolux | G104ACE-LH1 | 800×600 | 400 | LVDS | -30 ~ 85°C |
| AUO | G104STN01.6 | 800×600 | 700 | LVDS | -30 ~ 80°C | |
| 12.1" | Innolux | G121ACE-LH1 | 800×600 | 450 | LVDS | -30 ~ 85°C |
| AUO | G121EAN01.6 | 1280×800 | 400 | eDP | -30 ~ 85°C | |
| AUO | G121EAN01.1 | 1280×800 | 400 | LVDS | -30 ~ 85°C | |
| 13.3" | AUO | G133HAN03.1 | 1920×1080 | 300 | eDP | 0 ~ 50°C |
| 15" | AUO | G150XAN02.0 | 1024×768 | 500 | LVDS | -30 ~ 85°C |
| AUO | G150XAB03.0 | 1024×768 | 400 | eDP | -20 ~ 70°C | |
| 15.6" | Innolux | G156HCE-L01 | 1920×1080 | 450 | LVDS | -30 ~ 85°C |
| AUO | G156XTN02.1 | 1366×768 | 280 | eDP | 0 ~ 50°C | |
| 17" | AUO | G170ETN03.1 | 1280×1024 | 400 | LVDS | 0 ~ 50°C |
| 19" | AUO | G190EAN01.0 | 1280×1024 | 300 | LVDS | 0 ~ 50°C |
| AUO | G190EG02 V104 | 1280×1024 | 350 | LVDS | -20 ~ 70°C | |
| 21.5" | Innolux | G215HCJ-L02 | 1920×1080 | 350 | LVDS | 0 ~ 60°C |
| AUO | G215HAN01.201 | 1920×1080 | 300 | LVDS | -10 ~ 60°C |
Q1: What kinds of LCD panels are compatible with HXD285DTC-V1 LCD control board?
A: The HXD285DTC-V1 LCD control board fits all TFT LCD panels with LVDS or eDP interface and panel supply options of 3.3V, 5V or 12V. It features great compatibility for industrial LCD screens, medical display modules, vehicle displays and refurbished display panels. The panel supply voltage can be easily switched via onboard jumpers to match various LVDS or eDP LCD display panels.
Q2: What are the main application scenarios of HXD285DTC-V1 driver board?
A: HXD285DTC-V1 driver board is widely used in industrial automation equipment (HMI human-machine interface), security monitoring display systems, vehicle display terminals, medical equipment display modules, embedded development projects and upgrading and retrofitting displays for existing equipment. It features wide-temperature operation and stable performance.
Q3: Does HXD285DTC-V1 screen motherboard support a complete solution?
A: Yes, we are able to provide one-stop complete matching solutions including TFT LCD panel, corresponding driver controller board and customized connecting cables such as LVDS / FPC wires. We can select suitable screen specifications and adjust board parameters according to your actual application requirements to save your procurement and debugging costs.
Q4: Does HXD285DTC-V1 LCD motherboard come with a warranty?
A: Yes. We offer a 12-month warranty for standard products, starting from the date of receipt. The warranty covers manufacturing defects excluding man-made damage.
Q5. Do you have a MOQ for your products?
A: We do not have a MOQ for samples. However, for subsequent purchases of the same product, we do have a MOQ requirement, please contact our sales manager for further details if needed.
