HXD2690H-V1 LCD panel driver board is designed for small and medium-sized LCD display panels and supports multiple resolutions ranging from 480×272 up to 1920×1200. HXD2690H-V1 LCD control board provides flexible signal conversion from HDMI interface to output options including LVDS and TTL. HXD2690H-V1 is a compact small-size LCD driver board with dimensions of 78mm×50mm×13.5mm, requiring minimal installation space for easy embedded integration.
♦ Small-size LCD display driver board: compact overall dimensions of 78mm×50mm×13.5mm, space-saving design for easy embedded integration.
♦ Power supply: supports USB Micro 5V input, the control board’s DC socket supports a wide input voltage range of 9V to 16V (typical 12V, NC by default)
♦ Built-in LED backlight driver circuit: supports 9~25V driving voltage for small & medium-sized LED backlight.
♦ Integrated T-CON circuit: can directly drive small to medium-sized LVDS/TTL LCD display panels without a T-CON.
♦ Backlight brightness adjustable: via PWM duty cycle control
♦Optional output interfaces: HXD2690H-V1 LCD controller board comes with multiple output interfaces, serving as a versatile LVDS controller board and TTL controller board. TTL/RGB-FPC 0.5mm 50pin, TTL/RGB-FPC 0.5mm 40pin, LVDS FPC 0.5mm 40pin.
Model
HXD2690H-V1
Outline Dimension
78mm×50 mm×13 .5mm (L×W×H)
Display Color
24-bit (16.7M Colors)
Panel Interface
LVDS、TTL
Resolution Coverage
LCD panels from 480×272 up to 1920×1200
Signal Input
Input Signal Type
HDMI
Input Signal Range
HDMI Input Range
PC (VGA/HDMI) up to 1920×1200
Supply Voltage
Min:4.8V / Typical:5V / Max:5.5V
Operating Current
Min:0.1A / Typical:0.3A / Max:0.5A
Standby Power
＜0.8W
Panel Supply Voltage
3.3V/5V selectable via jumper
Max Panel Load (Ambient Temp.)
1.8A@3 .3V、2.5A@5V
Operation Interface
Visual OSD menu
Communication Interface
Digital buttons, infrared(IR)
Operating Temperature
-20℃～80℃,－30℃～80℃ (excluding the main chip)
MTBF
＞100,000 Hours

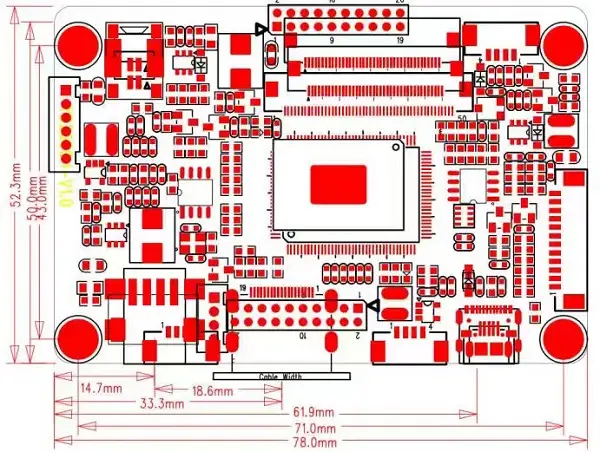

HXD2690H-V1 universal LCD screen motherboard layout and dimensional drawing for reference as follows:
✅️One-stop shopping, customized services, competitive prices. Please feel free to contact us to obtain the corresponding technical solutions.
HXD2690H-V1 screen control board features small size and simple operation without complicated configuration steps. HXD2690H-V1 LCD control board delivers stable signal output and strong panel compatibility, supporting a full range of mainstream resolutions and multiple screen interface types, which greatly expands its applicable scope. The LCD motherboard can be widely deployed in compact industrial HMI operation display panels, portable testing instruments, portable medical diagnostic equipment, handheld medical terminals, small self-service kiosks, vehicle secondary displays, smart home control panels, small digital signage and other devices, perfectly meeting the diversified display demands of space-limited equipment solutions.
As a leading China supplier of industrial TFT LCD display module solutions, Zhengzhou Hengxinda Technology Co,. Ltd specializes in the R&D and production of LCD TFT panel products with high performance, outstanding cost-effectiveness and reliable quality. And we can also offer tailor-made LCD TFT display solutions according to your personalized needs. Whether you are exploring new LCD TFT display solutions or looking to establish a long-term and stable supply partnership, our team is ready to provide you with free professional consulting, the latest product information, and free quotation support with strong market competitiveness.
We supply complete integrated solutions consisting of LCD panel with controller board. We offer compatible cables, driver boards, touch screens and other accessories. We offer customization services, including interface modifications, the addition or removal of features, and hardware parameter tuning. We can devise a comprehensive display solution tailored to your equipment’s installation space, signal requirements, operating environment, resolution and power supply conditions, providing a one-stop solution to all your display requirements.
• Reliable Supplier: We provide original Grade A LCD screens from top brands such as AUO, Sharp, Tianma, BOE and Innolux, with stable supply and guaranteed quality.
• Rich Industry Experience: With over 10 years of in-depth involvement in sectors including industrial control, medical equipment, automotive electronics, rail transit, and military applications, we deeply understand the unique requirements of each industry.
• Professional Technical Support: Our engineering team provides full pre-sales consultation (product selection/cost optimization) and after-sales service (1-year warranty, fast response).
HXD2680HV-V4 driver board is mainly used to support TFT LCD, with 1-channel VGA, 2-channel HDMI input interfaces (HDMI1 supports audio, HDMI2 supports DVI signal), supporting LVDS, TTL output interfaces. With stable performance and high compatibility, it is widely used in industrial control systems, digital signage displays, and custom monitor solutions.
Product Manager:Mark Si
HXD285DTC-V1 LCD control board offers stable performance and a wide range of features, enabling the conversion of HDMI, VGA, DP and Type-C signals for output as LVDS or eDP signals. This driver board supports resolutions up to 2560×1600(2K) and operates on a DC input voltage range of 8V to 24V, making it ideal for industrial displays, embedded devices and custom monitor solutions.
HXD2680HV-V6 driver board is a versatile industrial-grade 30 pin LCD controller board designed to convert HDMI and VGA signals to LVDS outputs. Supporting resolutions up to 1920×1200, it is ideal for a wide range of TFT LCD display applications. This board is widely used in industrial control systems, embedded devices, digital signage, and display upgrades.
