HXD2686DHV-V1 LCD control board is a reliable and versatile solution for converting HDMI, VGA, DP signals into LVDS and EDP outputs. Supporting resolutions up to 2K and a wide voltage range of DC 8V~24V input, HXD2686DHV-V1 screen motherboard is ideal for industrial displays, embedded systems, and custom LCD integration projects.
♦ Wide Voltage Input: DC 8V~24V wide voltage input with 12V as typical rated voltage. Important note: if the matched LCD display panel is powered by 12V, the controller board must adopt 12V input.
♦ Wide Operating Temperature: -20℃ ~ +70℃ for stable operation in harsh industrial environments.
♦ Built-in LED backlight driver circuit, it supports the driving of small to medium-sized LED backlights.
♦ 5V/12V optional backlight power (default 12V), PWM dimming adjustable.
♦ Stable signal transmission for industrial use
♦ Reliable performance for long-term operation. Easy integration into embedded systems.
✅️Need more functions?
Contact us for custom solutions! Apart from the standard functions, our LCD controller board comes with plenty of reserved functions and unused interfaces, which are set to NC by factory default. If you have extra demands for additional functions, signal ports or hardware configurations, please feel free to contact us. Our team can conduct personalized development and customization to fully fit your project.
Model
HXD2686DHV-V1
Outline Dimension
109.5mm×60 mm×16 .5mm (L×W×H)
Display Color
24-bit (16.7M Colors)
Panel Interface
LVDS、eDP
Resolution Coverage
LCD panels from 480×272 up to 2560×1600
Signal Input
Input Signal Type
VGA, HDMI, DP
Input Signal Range
HDMI Input Range
PC (VGA/HDMI) up to 2560×1600
VGA Input Range
Supply Voltage
Min:8V / Typical:12V / Max:24V
Operating Current
Min:0.15A / Typical:0.17A / Max:0.25A
Standby Power
＜0.5W
Panel Supply Voltage
3.3V/5V/12V selectable via jumper
Max Panel Load (Ambient Temp.)
1.2A@3 .3V、2.5A@5V、3.5A@12V (12V displays are limited by the power supply's capacity)
Operation Interface
Visual OSD menu
Communication Interface
Digital buttons, infrared(IR)
Operating Temperature
-20℃～70℃,－30℃～70℃ (excluding the main chip)
MTBF
＞100,000 Hours

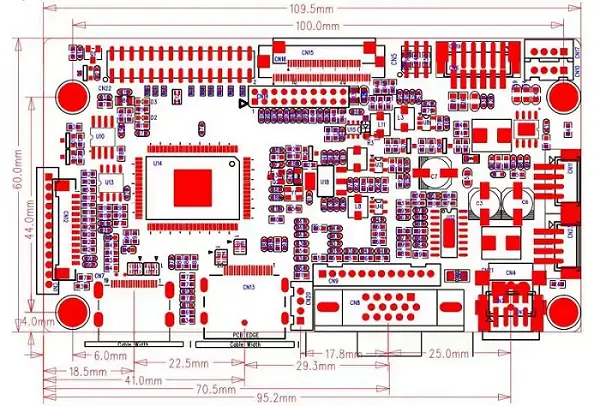

Layout & dimensional drawing of HXD2686DHV-V1 LCD screen control board shown below for your reference:
