HXD2680HV-V9.1 LCD control board comes with versatile interfaces. It is a TTL and LVDS controller board with VGA, HDMI and AV signals inputs. This LCD panel driver board integrates LED backlight driver circuit and T-CON circuit, and supports backlight brightness adjustment via PWM duty cycle. Supporting resolutions up to 1920×1200. It is ideal for industrial control panels, transportation display systems, and self-service kiosks displays.
♦ Wide Input Voltage:
The HXD2680HV-V9.1 control board for lcd screen supports ultra-wide DC input ranging from 5V to 25V with 12V as typical rated voltage. Important note: if the matched LCD display panel is powered by 12V, the controller board must adopt 12V input.
♦ Wide Operating Temperature Range:
The HXD2680HV-V9.1 LCD mother board is designed for industrial wide-temperature application, stably operates from -20℃ to +70℃, capable of long-term continuous running under harsh high/low-temperature.
♦ Resolution via Jumper Setting：
The HXD2680HV-V9.1 driver board supports screen resolutions ranging from 800×480 to 1920×1200 via jumper settings. This design allows the universal lcd controller board to quickly match a variety of LCD panel models with different resolutions.
♦ Onboard LED Backlight Driver:
Built-in LED backlight driving circuit, supports 9V~25V LED backlight for small & medium-size LCDs.
♦ Integrated T-CON Circuit:
Equipped with onboard T-CON, directly drives small/medium-size LVDS & TTL LCD panels without built-in T-CON chip.
♦ Automatic Brightness Control:
Supports I2C digital ambient light sensor. Connecting a digital ambient light sensor allows for automatic control of the backlight brightness. It can automatically adjust the LCD backlight brightness based on ambient light conditions.
♦ The backlight power supply supports 5V/12V and allows for PWM duty cycle adjustment to control backlight brightness
♦ Easy operation and stable reliable performance.
✅️Need more functions?
Contact us for custom solutions! Apart from the standard functions, our LCD panel driver board comes with plenty of reserved functions and unused interfaces, which are set to NC by factory default. If you have extra demands for additional functions, signal ports or hardware configurations, please feel free to contact us. Our team can conduct personalized development and customization to fully fit your project.
Model
HXD2680HV-V9.1
Outline Dimension
116.9mm×70 mm×16.5mm (L×W×H)
Display Color
24-bit (3×8, 16.7M Colors)
Panel Interface
LVDS、TTL
Resolution Coverage
LCD panels from 480×272 up to 1920×1200
Signal Input
Input Signal Type
VGA, HDMI, AV (NC by default)
Input Signal Range
HDMI Input Range
PC (VGA/HDMI) up to 1920×1080
VGA Input Range
Supply Voltage
Min:10.8V / Typical:12V / Max:13.2V
Operating Current
Min:0.05A / Typical:0.1A / Max:0.3A
Standby Power
＜0.8W
Panel Supply Voltage
3.3V/5V/12V selectable via jumper
Max Panel Load (Ambient Temp.)
1.8A@3.3V、2.5A@5V、3.5A@12V (12V displays are limited by the power supply's capacity)
Operation Interface
Visual OSD menu
Communication Interface
Digital buttons, infrared(IR), I²C
Operating Temperature
-20℃～70℃,－30℃～70℃ (excluding the main chip)
MTBF
＞100,000 Hours

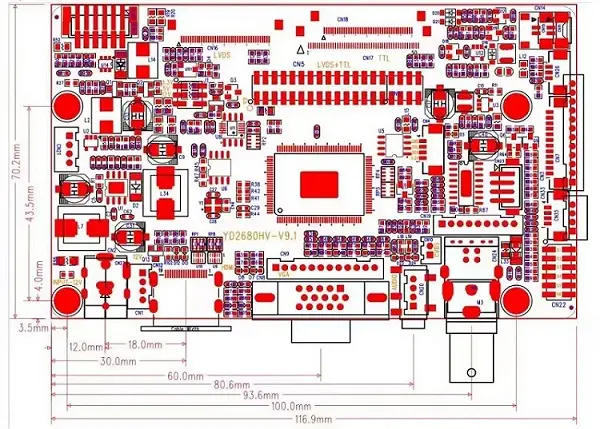

Layout & dimensional drawing of HXD2680HV-V9.1 LCD controller board shown below for your reference:
✅️️ Free spec sheet & quote | One-stop & customized service, contact us now!
The HXD2680HV-V9.1 LCD driver board is suitable for a wide range of applications. It offers the advantages of wide-temperature operation, wide-voltage input, multi-signal compatibility and integrated T-CON, making it suitable for TFT LCD display modules in various devices such as industrial HMI systems, industrial embedded systems, automation equipment, medical diagnostic display terminals, self-service devices and commercial digital signage. It is suitable for both the mass assembly of standard production equipment and small-batch customised system retrofit projects, and operates reliably in both harsh industrial conditions and standard commercial environments.

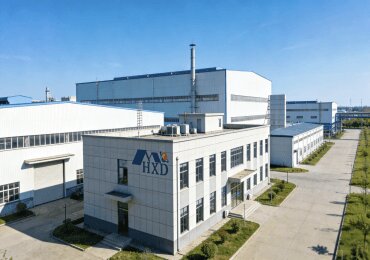

Zhengzhou Hengxinda Technology Co., Ltd. (HXD) is a supplier of industrial TFT LCD displays and touch screen panels, with over 15 years of professional experience in the industry. We mainly engage in the production, sales and after-sales service of LCD panels from well-known brands, including AUO, Innolux, BOE, ChiMei, IVO, etc. We support customization services, providing capacitive or resistive touch screen panels matched with LCD panels. In addition, we customize different bonding technologies according to various application scenarios. With 15 years of technical accumulation and market experience, we have completed numerous TFT LCD display and touch screen projects, serving thousands of customers across military, industrial control, transportation, medical and other industries. HXD is a reliable partner providing cost-effective touch screen displays.
We provide comprehensive driver solutions for industrial TFT LCD panels, covering adapter boards and driver boards for common interfaces such as LVDS, eDP, MIPI, VGA, and HDMI. Whether you are using a standard LCD display panel or a special specification LCD panel, we can help you quickly achieve signal conversion and screen brightness, significantly shortening your development cycle. In addition, if you have functional customization requirements for the driver board—such as OSD menu, wide voltage input, or temperature protection—please feel free to contact us. Our technical team will fully cooperate to develop the most suitable driver solution tailored to your needs.
Q1: What LCD panel models are compatible with HXD2680HV-V9.1 driver board?
A: This controller board supports LVDS or TTL interface TFT LCD display panels. It is compatible with panels powered by 3.3V, 5V or 12V supply. Covering the vast majority of small and medium-sized industrial LCD screens available on the market, it supports single or dual LVDS outputs. HXD2680HV-V9.1 driver board is compatible with a wide range of mainstream panel resolutions, from standard low-resolution displays up to 1920×1200. If your display has specific parameters, please provide the display specifications and we will assist in verifying compatibility.
Q2: Need firmware update for different resolutions?
A: No flashing is required, simply use the on-board jumper to manually switch the screen settings, allowing you to switch between all standard resolutions from 800×480 to 1920×1200.
Q3: Does the HXD2680HV-V9.1 screen motherboard support customization?
A: Features such as the OSD menu, wide voltage range, over-temperature protection, dedicated backlighting and special interfaces can be customized, our technical team will develop these as required.
Q4: How is the stability of the LCD control board guaranteed?
A: Our LCD motherboards have passed -40℃~85℃ high and low temperature tests and 72-hour continuous operation aging tests. They offer stable, reliable performance and are capable of long-term operation in harsh industrial environments.
Q5: Does the driver board come with a warranty?
A: Yes, we offer a 12-month quality warranty on standard products, effective from the date of receipt. The warranty covers manufacturing defects that are not caused by human error.
