HXD2680HV-V6 driver board is a versatile industrial-grade 30 pin LCD controller board designed to convert HDMI and VGA signals to LVDS outputs. Supporting resolutions up to 1920×1200, it is ideal for a wide range of TFT LCD display applications. This board is widely used in industrial control systems, embedded devices, digital signage, and display upgrades.
♦ Industrial EMC Design: Excellent anti-interference & ultra-low EMC radiation, suitable for LCD display screens and other flat panel displays.
♦ Wide Voltage Input: DC 8V~16V wide input, the power connector supports multiple types of terminals.
♦ Synchronization Types: Separate/Composite/SOG sync support
♦Automatic Brightness Control: Supports I2C digital ambient light sensor. Connecting a digital ambient light sensor allows for automatic control of the backlight brightness. It can automatically adjust the LCD backlight brightness based on ambient light conditions.
♦ Built-in 3W dual-channel stereo amplifier, HDMI earphone out & VGA audio in
♦ 5V/12V optional backlight power (default 12V), PWM dimming adjustable
♦ Automatic Temperature Control: OSD real-time temperature monitoring , over-temperature brightness reduction alert, automatic screen shutdown at high temperatures, and automatic recovery after cooling
✅️ Contact us for more custom functions!
In addition to its standard capabilities, HXD2680HV-V6 LCD motherboard comes with many reserved features and unassigned NC interfaces. Whether you need to add new functions, reconfigure signal interfaces or adjust hardware settings, we can provide tailor-made development and customization solutions for your projects.
Model
HXD2680HV-V6
Outline Dimension
136mm×60 mm×16.5mm (L×W×H)
Display Color
24-bit (3×8, 16.7M Colors)
Panel Interface
LVDS
Resolution Coverage
LCD panels from 640×480 up to 1920×1200
Signal Input
Input Signal Type
VGA, HDMI
Input Signal Range
HDMI Input Range
PC (VGA/HDMI) up to 1920×1080 @ 60Hz
VGA Input Range
Supply Voltage
Min:10.8V / Typical:12V / Max:13.2V
Operating Current
Min:0.06A / Typical:0.5A / Max:0.6A
Standby Power
＜0.72W
Panel Supply Voltage
3.3V/5V/12V selectable via jumper
Max Panel Load (Ambient Temp.)
1.2A@3.3V、2A@5V、3A@12V (12V displays are limited by the power supply's capacity)
Operation Interface
Visual OSD menu
Communication Interface
Digital buttons, infrared(IR), I²C master (reserved)
Operating Temperature
-10 to 70°C, -30 to 70°C (excluding the main chip)
MTBF
＞100,000 Hours

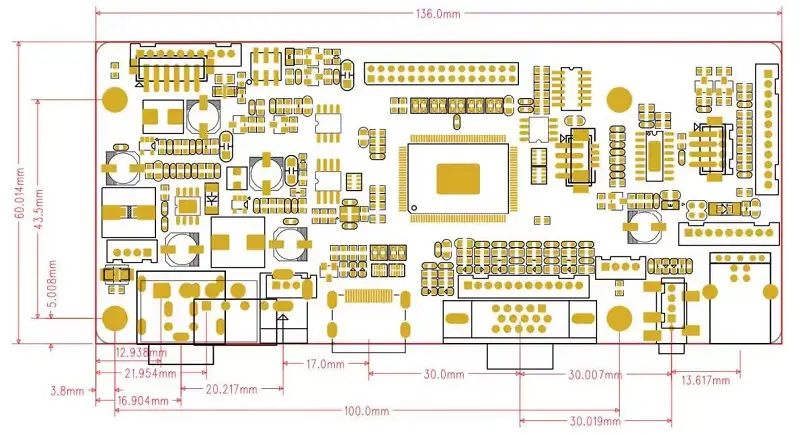

Layout & dimensional drawing of HXD2680HV-V6 universal LCD controller board shown below for your reference:
The following is a partial list of compatible LCD display models. If you have any other LCD display screens compatibility requirements, please feel free to contact us, we can provide you matched LCD panel with controller board solutions!
Inch
Brand
Panel Model
Resolution
Brightness(cd/㎡)
Interface
6.5"
AUO
G065VN01 V2
640×480
800
-30 ~ 80°C
7"
Innolux
G070ACE-L01
800×480
500
-30 ~ 85°C
G070VAN01.0
480
8.4"
G084XAN01.0
1024×768
-20 ~ 70°C
10.1"
BOE
GV101WXM-N80
1920×1080
G101ICE-LH1
1280×800
10.4"
GV104X0M-N10
450
G104X1-L03
350
G104VAN01.0
12.1"
G121ACE-LH2
800×600
600
G121EAN01.4
300
13.3"
G133HAN01.1
400
G133IGE-L03
-30 ~ 70°C
15"
G150XAN02.2
1800
G150XNE-L01
15.6"
G156HCE-LH1
1200
G156XW01 V312
1366×768
0 ~ 60°C
17"
G170ECE-LE3
1280×1024
19"
G190EAN01.5
700
0 ~ 50°C
G190EAN01.3
330
21.5"
G215HCJ-LH1
1400
G215HAN01.3
250
1. TFT LCD Display Panel: Available in multiple resolutions ranging from 640×480 up to 1920×1200, LVDS interface, optional 5V/12V panel power supply, industrial grade wide-temperature option is available.
2. Touch Screen: Capacitive or resistive touch optional. We customize touch solutions as required, supporting frame bonding or full bonding.
3. HXD2680HV-V6 LCD Controller Board: Core drive unit with HDMI/VGA input, LVDS output, supports auto brightness adjustment and multi sync signals.
4. Backlight Driver Board: Specially matched to screen backlight parameters for stable constant-current backlight drive.
5. OSD Keypad Board and Matching Cables: For on-screen menu adjustment of brightness, contrast, color temperature and source switching. Cable length, connector type, pin assignment, and other specifications can be freely tailored to your device structure. Good cable design helps optimize internal wiring, enhance anti-interference capability, reduce assembly difficulty, and improve production efficiency.
✅️️ With excellent quality, high cost-performance ratio and reliable after-sales service, contact us now for more details!
