HXD2680HV-V4 driver board is mainly used to support TFT LCD, with 1-channel VGA, 2-channel HDMI input interfaces (HDMI1 supports audio, HDMI2 supports DVI signal), supporting LVDS, TTL output interfaces. With stable performance and high compatibility, it is widely used in industrial control systems, digital signage displays, and custom monitor solutions.
♦ Wide Voltage Input: 8V~25V, typical 12V (must use 12V supply when the LCD display panel is powered at 12V)
♦ Wide operating temperature range: -20℃ ~ +70℃
♦ Resolution selectable via jumper: 800×480 ~ 1900×1200
♦ Onboard LED backlight driver circuit, supports 9~25V drive for small-to-medium size LED backlights
♦ Onboard T-CON circuit, directly drives small-to-medium size LVDS/TTL LCD panels without external T-CON
♦ Backlight power supply: 5V/12V (default 12V), with PWM duty cycle brightness control
♦ High compatibility with various LCD panels
♦ Easy to operate with stable and reliable performance
Model
HXD2680HV-V4
Outline Dimension
114mm×70mm×16.5mm (L×W×H)
Display Color
24-bit (3×8, 16.7M Colors)
Panel Interface
LVDS
Resolution Coverage
LCD panels from 480×272 up to 1920×1200
Signal Input
Input Signal Type
VGA, HDMI, AV (NC by default)
Input Signal Range
HDMI Input Range
Max.1920×1200 from PC (VGA/HDMI)
VGA Input Range
Supply Voltage
Min:10.8V / Typical:12V / Max:13.2V
Operating Current
Min:0.05A / Typical:0.06A / Max:0.09A
Standby Power
＜0.8W
Panel Supply Voltage
3.3V/5V/12V selectable via jumper
Max Panel Load (Ambient Temp.)
1.8A@3.3V, 2.5A@5V, 3.5A@12V (12V display is limited by the power supply's capacity)
Operation Interface
Visual OSD menu
Communication Interface
Digital buttons, infrared(IR), I²C
Operating Temperature
-20℃～70℃; -30℃～90℃ (Excluding main IC)
MTBF
＞100,000 Hours

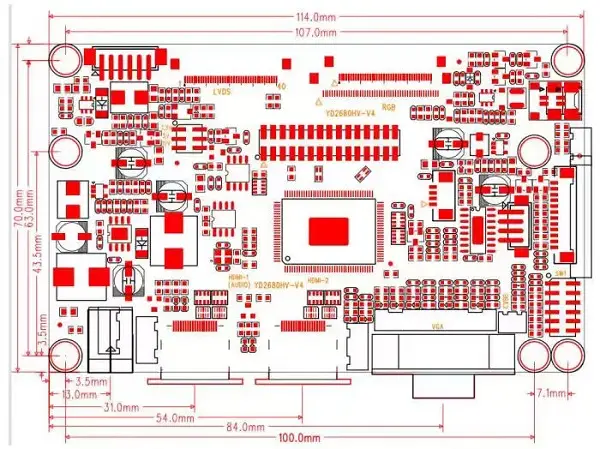

Layout & dimensional drawing of HXD2680HV-V4 screen control board shown below for your reference:

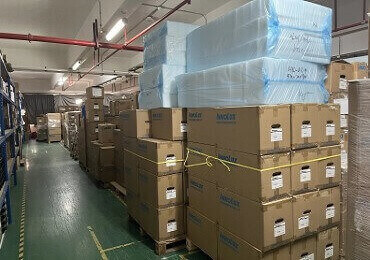

Zhengzhou Hengxinda Technology Co., Ltd. is a professional supplier dedicated to industrial LCD displays, various touch panels, LCD controller boards, and industrial TFT LCD display solutions. All TFT LCD panels we supply are well-established and reputable products from brands including Innolux, AUO, BOE and others, and have undergone strict testing before delivery. We provide resistive and capacitive touch screens, and can customize touch solutions according to your requirements. Our factory applies strict standards and standardized operations to bonding technology to ensure high bonding quality.We offer different bonding methods — full bonding or frame bonding — based on your actual application scenarios.
Why choose us?
• Reliable Supplier: We provide original Grade A LCD screens from top brands such as AUO, Sharp, Tianma, BOE and Innolux, with stable supply and guaranteed quality.
✅️With excellent quality, high cost-performance ratio and reliable after-sales service, contact us now for more details!
Q1: What kinds of LCD panels are compatible with HXD2680HV-V4 LCD control board?
A: HXD2680HV-V4 LCD control board fits all TFT LCD panels with LVDS interface and panel supply options of 3.3V, 5V or 12V. It features great compatibility for industrial LCD screens, medical display modules, vehicle displays and refurbished display panels. The panel supply voltage can be easily switched via onboard jumpers to match various LVDS LCD display panels.
Q2: What are the main application scenarios of HXD2680HV-V4 LCD driver board?
A: HXD2680HV-V4 LCD display driver board is widely used in industrial automation equipment (HMI human-machine interface), security monitoring display systems, vehicle display terminals, medical equipment display modules, embedded development projects and upgrading and retrofitting displays for existing equipment. It features wide-temperature operation and stable performance.
Q3: Does it support a complete solution?
A: Yes, we are able to provide one-stop complete matching solutions including LCD panel, corresponding LCD controller board and customized connecting cables such as LVDS / FPC wires. We can select suitable screen specifications and adjust board parameters according to your actual application requirements to save your procurement and debugging costs.
Q4: Does HXD2680HV-V4 LCD motherboard come with a warranty?
A: Yes. We offer a 12-month warranty for standard products, starting from the date of receipt. The warranty covers manufacturing defects excluding man-made damage.
Q5. Do you have a MOQ for your products?
A: We do not have a MOQ for samples. However, for subsequent purchases of the same product, we do have a MOQ requirement, please contact our sales manager for further details if needed.
