HXD256HU-V1 LCD screen control board adopts HDMI input and LVDS + eDP outputs for wide compatibility. Wide temperature operation. Integrated with LED backlight driver, HXD256HU-V1 LCD control board supports PWM duty cycle brightness control. With maximum resolution up to 2K, it presents sharp and clear images, perfectly suited for various high-definition display applications. HXD256HU-V1 is a small-size LCD driver board with dimensions of 74.2mm×53mm×11mm, it occupies little space and features flexible & convenient installation.
| Model | HXD256HU-V1 |
| Maximum resolution | 2560×1600(2K) |
| Mechanical Dimension | 74.2mm×53 mm×11mm |
| Operating Temperature | -20~70℃ |
| Input Interface | HDMI |
| Output Interface | LVDS, eDP |
♦ Small-size LCD display driver board: compact overall dimensions of 74.2mm×53mm×11mm, space-saving design for easy embedded integration.
♦ Power supply: supports wide DC voltage input from 8V to 25V, with a typical value of 12V. (Note: If the matched LCD panel uses 12V power supply, the controller board must also be powered by 12V.)
♦ Built-in LED backlight driver circuit: supports small & medium-sized LED backlight.
♦ Backlight brightness adjustable: via PWM duty cycle control
♦ Supports burn-in mode: expose hidden component faults in advance, easier debugging and factory QC.
♦ Display output interfaces: HXD256HU-V1 LCD controller board comes with LVDS/eDP dual-mode common interface, eDP (2-lane / 4-lane) and LVDS dual 8-bit.
| Model | HXD256HU-V1 | ||
| Outline Dimension | 74.2mm×53 mm×11mm (L×W×H) | ||
| Display Color | 24-bit (16.7M Colors) | ||
| Panel Interface | LVDS、eDP | ||
| Resolution Coverage | LCD panels from 480×272 up to 2560×1600 | ||
| Signal Input | Input Signal Type | HDMI | |
| Input Signal Range | HDMI Input Range | PC (VGA/HDMI) up to 2560×1600 | |
| Supply Voltage | Min:8V / Typical:12V / Max:24V | ||
| Operating Current | Min:0.15A / Typical:0.17A / Max:0.25A | ||
| Standby Power | ＜0.5W | ||
| Panel Supply Voltage | 3.3V/5V/12V selectable via jumper | ||
| Max Panel Load (Ambient Temp.) | 1.2A@3.3V、2.5A@5V、3.5A@12V (12V displays are limited by the power supply's capacity) | ||
| Operation Interface | Visual OSD menu | ||
| Communication Interface | Digital buttons, infrared(IR) | ||
| Operating Temperature | -20℃～70℃ | ||
| MTBF | ＞100,000 Hours | ||

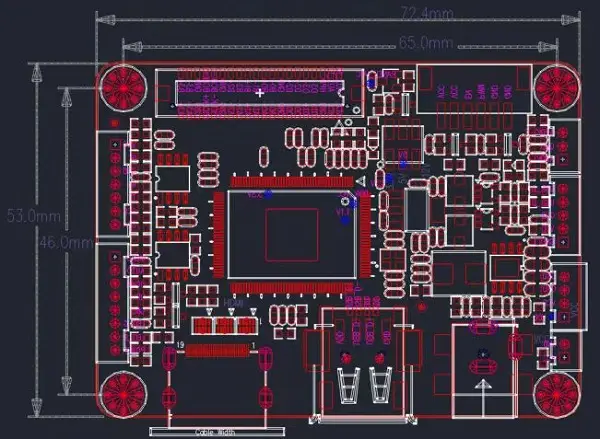

Layout & dimensional drawing of HXD256HU-V1 LCD display driver board shown below for your reference:
HXD256HU-V1 LCD screen control board adopts a shared LVDS/eDP dual-mode interface, supporting two mainstream industrial display output protocols. It is a composite panel interface that balances compatibility and versatility. The single interface supports both LVDS and eDP protocols, eliminating the need for additional reserved interface space on the driver board. One single board is compatible with the vast majority of industrial LCD display panels on the market, significantly reducing selection costs. The detailed pin definitions for the 40-pin LVDS/eDP output interface are listed in the table below. Please refer to the product datasheet for further information.
| Pin No. | Symbol | Description | Pin No. | Symbol | Description |
| 1 | PANEL_VCC | 3.3/5/12V Panel VCC | 2 | AUX-N | eDP_Aux-N |
| 3 | PANEL_VCC | 3.3/5/12V Panel VCC | 4 | AUX+P | eDP_Aux+P |
| 5 | GND | Ground | 6 | HPD | eDP_Hot Plug |
| 7 | eDP_D1- | eDP_Lane 1- | 8 | D3- | eDP_Lane 3- |
| 9 | eDP_D1+ | eDP_Lane 1+ | 10 | D3+ | eDP_Lane 3+ |
| 11 | eDP_D0- | eDP_Lane 0- | 12 | D2- | eDP_Lane 2- |
| 13 | eDP_D0+ | eDP_Lane 0+ | 14 | D2+ | eDP_Lane 2+ |
| 15 | GND | Ground | 16 | GND | Ground |
| 17 | LVDS_E0- | LVDS_Even 0- | 18 | LVDS_O0- | LVDS_Odd 0- |
| 19 | LVDS_E0+ | LVDS_Even 0+ | 20 | LVDS_O0+ | LVDS_Odd 0+ |
| 21 | LVDS_E1- | LVDS_Even 1- | 22 | LVDS_O1- | LVDS_Odd 1- |
| 23 | LVDS_E1+ | LVDS_Even 1+ | 24 | LVDS_O1+ | LVDS_Odd 1+ |
| 25 | LVDS_E2- | LVDS_Even 2- | 26 | LVDS_O2- | LVDS_Odd 2- |
| 27 | LVDS_E2+ | LVDS_Even 2+ | 28 | LVDS_O2+ | LVDS_Odd 2+ |
| 29 | GND | Ground | 30 | GND | Ground |
| 31 | LVDS_EC- | LVDS_Even Clock - | 32 | LVDS_OC- | LVDS_Odd Clock - |
| 33 | LVDS_EC+ | LVDS_Even Clock + | 34 | LVDS_OC+ | LVDS_Odd Clock + |
| 35 | GND | Ground | 36 | GND | Ground |
| 37 | LVDS_E3- | LVDS_Even 3- | 38 | LVDS_O3- | LVDS_Odd 3- |
| 39 | LVDS_E3+ | LVDS_Even 3+ | 40 | LVDS_O3+ | LVDS_Odd 3+ |
Q1: Is HXD256HU-V1 screen motherboard a small-size driver board, and for which applications is it suitable?
A: HXD256HU-V1 LCD control board is a typical small-size controller board, with dimensions of only 74.2mm×53mm×11mm. Featuring an ultra-small form factor, it occupies minimal space and allows for flexible and convenient installation, making it ideal for space-constrained device applications. It is widely used in scenarios such as small embedded industrial control terminals, portable medical devices, secondary displays for self-service terminals, vehicle-mounted and mobile display equipment, and more.
Q2: Does the HXD256HU-V1 driver board support customization?
A: Features such as the OSD menu, dimming method, dedicated backlighting and special interfaces can be customized, our technical team will develop these as required. Reserved NC interfaces can be enabled upon request. If you have any needs, please provide your detailed specifications and application requirements, and we will create a tailored solution for you.
Q3: Does LCD mother board support 4K resolution?
A: No. HXD256HU-V1 LCD controller board supports a maximum resolution of 2K. If you require higher resolution performance, please contact us. We will recommend suitable LCD panel with controller board solutions for your project.
Q4: Do you provide LCD screen control board samples?
A: Yes, we offer sample support. You can request samples for testing and evaluation. Welcome to contact us to arrange sample delivery.
Q5: Do your LCD display driver boards have a warranty period?
A: Yes, all LCD control boards come with a one-year warranty. Within the warranty period, we provide after-sales maintenance and replacement services for any product quality issues arising under normal operating conditions. We offer free technical support service during this period.
HXD858HV-V1 LCD panel driver board is a reliable and versatile solution for converting HDMI, VGA signals into LVDS outputs. This LVDS board controller supports resolutions up to 1920 x 1200 and a wide voltage range of DC 8V~18V input. HXD858HV-V1 LCD display driver board is widely applied to industrial displays, vehicle displays, and medical equipment displays.
| Model | HXD858HV-V1 |
| Maximum resolution | 1920 x 1200 |
| Mechanical Dimension | 107mm×56.4mm×16.5 mm |
| Operating Temperature | -10~70℃ |
| Input Interface | HDMI, VGA |
| Output Interface | LVDS (Dual 8-bit, Dual 6-bit, Single 8-bit, Single 6-bit) |
HXD2680HV-V6 driver board is a versatile industrial-grade 30 pin LCD controller board designed to convert HDMI and VGA signals to LVDS outputs. Supporting resolutions up to 1920×1200, it is ideal for a wide range of TFT LCD display applications. This board is widely used in industrial control systems, embedded devices, digital signage, and display upgrades.
| Model | HXD2680HV-V6 |
| Maximum resolution | 1920 x 1200 |
| Mechanical Dimension | 136mm x 60mm x 16.5mm |
| Operating Temperature | -10~70℃ |
| Input Interface | HDMI, VGA |
| Output Interface | LVDS: Dual 8-bit, Dual 6-bit, Single 8-bit, Single 6-bit (30-pin) |
HXD2680HV-V4 driver board is mainly used to support TFT LCD, with 1-channel VGA, 2-channel HDMI input interfaces (HDMI1 supports audio, HDMI2 supports DVI signal), supporting LVDS, TTL output interfaces. With stable performance and high compatibility, it is widely used in industrial control systems, digital signage displays, and custom monitor solutions.
| Model | HXD2680HV-V4 |
| Maximum resolution | 1920 x 1200 |
| Mechanical Dimension | 114mm x 70mm x 16.5mm |
| Operating Temperature | -20℃ to 70℃ |
| Input Interface | VGA, HDMI, AV (NC by default) |
| Output Interface | LVDS (Dual 8-bit), TTL (18-bit/24-bit) |
