HXD-YT58
HXD-YT58

HXD-YT58

Product model: HXD-YT58
Operating temperature range-40 to 70℃.
The driver board is equipped with 1 VGA port, 1 DVI port and 1 HDMI port, and supports LVDS output interface.
It supports resolutions up to 1920 x 1200.

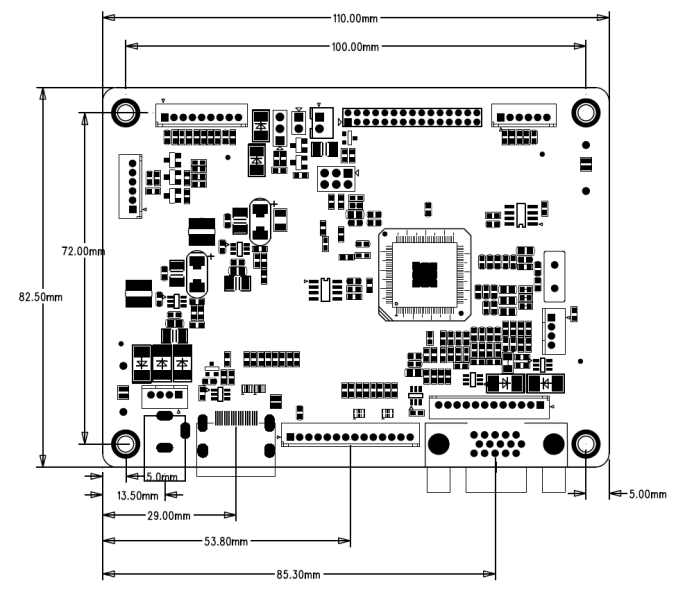

Size specifications: length x width x height 110mm x 82.5mm x 15mm
Download PDF Send Message

Product overview

Operating temperature range: -40 to 70℃
Optional addition of automatic light-sensing control
Supports maximum resolution up to 1920x1200
Can receive remote control function

Product feature

Display output Maximum resolution: Max:1920x1200
Output interface: Single/Dual LVDS
Support signal Simulated RGB: Horizontal Freq 30-120KHz
Vertical Freq 50-75Hz
0.7Vp-p@75ohm
Separate/ Composite/ SOG sync support
Digital HDMI/DVI: Horizontal Freq 30-120KHz
Vertical Freq 50-75Hz
Button Power,Menu,Exit,Plus,Minus
Menu Type Graphical menu
Language support Support for 8 languages including Chinese and English
Functional operations Picture Mode/Brightness/Contrast/Saturation/Sharpness/Hue
FUNCTION Language/Reset/Color Temp.
PC Clock Phase H position V position Auto configure
Power supply Stand-by <0.5W 12Vstb/200mA
Input 12V/dc Notel:
