HXD-VDH58L

Product model: HXD-VDH58L

Operating temperature range-20 to 65℃.

The driver board has 1 VGA interface, 1 DVI interface and 1 HDMI interface, and supports LVDS output interface.

It supports resolutions up to 1920 x 1200.

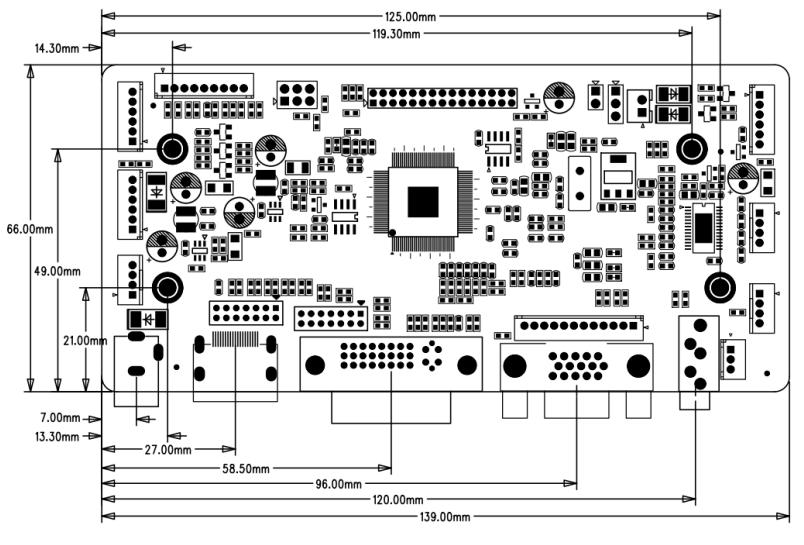

Size specifications: 139mm (L) × 66mm (W) × 15mm (H)

Download PDF Send Message

Product overview

Operating temperature range: -20 to 65℃
Optional addition of automatic light-sensing control
Supports maximum resolution up to 1920x1200
Can receive remote control function
Basic resolutions all support up to 85Hz
Supports ADJ/PWM software dimming control

Product feature

Display output	Maximum resolution:	Max: 1920x1200
	Output interface:	Single/Dual/ LVDS
Support signal	Simulated RGB:	Horizontal Freq			30-120KHz
		Vertical Freq			50-75Hz
		0.7Vp-p@75ohm
		Separate/Composite/SOG sync support
	Digital HDMI/DVI:	Horizontal Freq			30-120KHz
		Vertical Freq			50-75Hz
Button	Power,Menu,Exit,Plus,Minus
Menu type		Graphical menu
Language support		Support for 8 languages including Chinese and English
Functional operations	Picture	Mode/Brightness/Contrast/Saturation/Sharpness/Hue
	FUNCTION	Language/Reset/Color Temp.
	PC	Clock	Phase	H position	V position	Auto configure
Power supply	Stand-by	<0.5W 12Vstb/200mA
	Input	12V/dc Notel:
