HXD-VD68DG LCD motherboard is a reliable and versatile solution for converting VGA and DVI signals into LVDS output. HXD-VD68DG LCD control board HXD-VD68DG can operate stably at temperatures as low as -40℃. Supporting resolutions up to 1920×1200. It features enhanced anti-static protection and an isolated power supply. HXD-VD68DG LCD driver board is suitable for medical imaging equipment, outdoor unattended terminals, industrial control and testing equipment, security surveillance display equipment, and more.
♦ Support Auto Dimming
HXD-VD68DG LCD motherboard reserves a light sensor interface. When paired with a light sensor module, it can monitor ambient light levels in real time and automatically adjust the backlight brightness according to light changes indoors and outdoors.
♦ Support Potentionmeter Knob Dimming
In addition to automatic brightness adjustment, a knob interface is provided, allowing the LCD screen brightness to be adjusted manually via hardware alone by connecting an external adjustable knob. No software or serial port commands are required, it is suitable for applications such as industrial instruments and in-vehicle equipment where rapid manual brightness adjustment is required on-site.
♦ DICOM Compliant Brightness Control Support
Strictly adhering to DICOM medical imaging brightness specifications, the brightness output is linear, precise and uniform, with high grey-scale reproduction accuracy, meeting the professional display standards for medical display equipment such as X-ray, ultrasound and imaging analysers.
♦ Multiple Preset Gamma Curves Available
7 built-in Gamma curves are selectable to calibrate gray scale and contrast, optimizing image performance for industrial inspection, medical imaging and outdoor advertising.
♦ Stable Operation at Ultra-Low Temperature of -40℃
This wide-temperature industrial LCD control board can operate continuously and reliably in extremely cold environments as low as -40℃. It avoids common low-temperature faults such as black screen, flickering and brightness attenuation, making it suitable for outdoor equipment in cold regions and cold storage monitoring displays.
♦ Enhanced Anti-Static Protection
Reinforced ESD design with dedicated protection components on key pins to prevent static damage during assembly and operation, ensuring that images are displayed correctly even in harsh environments.
Display output
Maximum resolution
Max:1920x1200
Output Interface
Single/Dual/LVDS
Support signal
Analog RGB
Horizontal Freq
30-120KHz
Vertical Freq
50-75Hz
0.7Vp-p@75ohm
Separate/Composite/SOG sync support
Digital DVI
OSDKeypad
Power,Menu,Exit,Plus,Minus
Menu type
Graphical Menu
Language support
English/Chinese/ (optional multi-language)
Function operations
Mode/Brightness/Contrast/Saturation/Sharpness/Hue
FUNCTION
Language/Reset/Color Temp.
PC
Clock
Phase
H position
V position
Auto configure
Power
Stand-by
<0.5W 12Vstb/200mA
Input
12V/dc Note1:

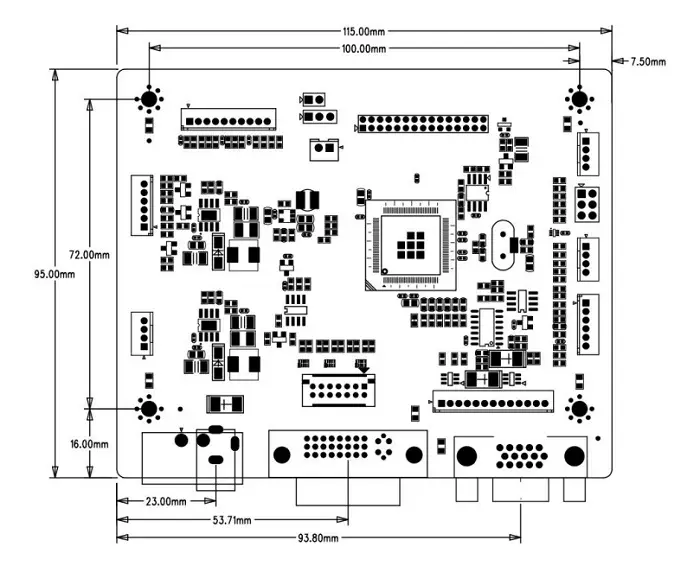

Layout & dimensional drawing of HXD-VD68DG universal LCD controller board shown below for your reference:
