HXD-VD68 LCD panel driver board supports VGA and DVI signal input, and LVDS signal output. HXD-VD68 LCD control board can operate stably within a wide temperature range of -20℃ to +60℃. Supporting resolutions up to 1920×1200. This LCD driver board supports automatic light sensing, black-and-white display, OSD display and control, multi-language options, and factory mode.
• Wide Temperature Range
With a wide operating temperature of -20℃ ~ +60℃, HXD-VD68 control board maintains stable continuous operation in cold and heat. Suitable for long-term uninterrupted service in vehicle-mounted systems, industrial cabinets and cold storage equipment, complying with industrial 24/7 operation standards.
• Support Auto Dimming
HXD-VD68 LCD panel driver board board supports a light-sensing function, which measures ambient light levels in real time and automatically adjusts the LCD backlight brightness according to the brightness of the external environment. Whether indoors or outdoors, the LCD brightness is automatically adjusted to suit varying ambient light conditions caused by weather. No manual adjustment is required, making it suitable for unattended applications such as outdoor equipment, self-service terminals and in-vehicle displays.
• Compatible with Black-and-white Display Mode
Apart from normal color output, the driver board provides black-and-white display mode. When switched to this mode, the display retains only black, white and grey-scale tones, reducing backlight power consumption. It is suitable for testing instruments, industrial readout screens and other devices that require only text and numerical displays, and effectively extends the screen’s service life even during prolonged operation.
• Supports Multiple Languages
Allow users to switch between Chinese, English and other major languages. The display language of the menu can be changed to suit the requirements of different overseas markets, making it suitable for customers in various regions around the world and reducing customisation costs.
• Supports Professional Factory Mode
HXD-VD68 LCD motherboard is equipped with a factory mode, intended exclusively for use by production and engineering staff. Entering factory mode unlocks hidden parameters, including a range of functions. Factory mode facilitates the batch calibration of LCD screens and factory acceptance testing of equipment, improving production and debugging efficiency, and simplifying troubleshooting.
Display output
Maximum resolution
Max:1920x1200
Output Interface
Single/Dual/LVDS
Support signal
Analog RGB
Horizontal Freq
30-120KHz
Vertical Freq
50-75Hz
0.7Vp-p@75ohm
Separate/Composite/SOG sync support
Digital DVI
OSDKeypad
Power,Menu,Exit,Plus,Minus
Menu type
Graphical Menu
Language support
English/Chinese/ (optional multi-language)
Function operations
Mode/Brightness/Contrast/Saturation/Sharpness/Hue
FUNCTION
Language/Reset/Color Temp.
PC
Clock
Phase
H position
V position
Auto configure
Power
Stand-by
<0.5W 12Vstb/200mA
Input
12V/dc Note1:

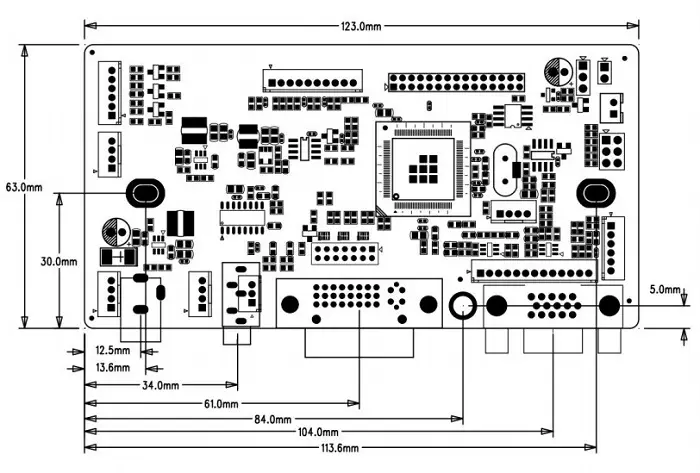

Layout & dimensional drawing of HXD-VD68 LCD controller board shown below for your reference:
Zhengzhou Hengxinda Technology Co., Ltd. is a supplier of industrial TFT LCD displays and touch screen panels, with over 15 years of professional experience in the industry. We mainly supply LCD panels from well-known brands, including AUO, Innolux, BOE, ChiMei, IVO, etc. We support customization services, providing capacitive or resistive touch screen panels matched with LCD panels. In addition, we customize different bonding technologies according to various application scenarios. Whether you are using a standard LCD display panel or a special specification LCD panel, we can help you quickly achieve signal conversion and screen brightness, significantly shortening your development cycle. In addition, if you have functional customization requirements for the LED driver board, please feel free to contact us. Our technical team will fully cooperate to develop the most suitable driver solution tailored to your needs.
Q1: Does HXD-VD68 screen motherboard support auto dimming function? Is the light sensor standard or optional?
A: HXD-VD68 lvds controller board supports auto light sensing and auto dimming. The light sensor module is optional. When equipped, it can detect real-time ambient brightness and adjust backlight brightness automatically for indoor and outdoor equipment, saving power and avoiding glare.
Q2: Does HXD-VD68 driver board support remote control receiving function?
A: Yes. HXD-VD68 LCD driver board reserves an IR receiving interface and comes with full remote control functionality. When used with the accompanying remote control, it allows for remote adjustment of the LCD screen and other settings without the need to touch the device at close range, making it suitable for self-service terminals, overhead displays and other equipments.
Q3: Can HXD-VD68 LCD driver board be customized according to my LCD display panel parameters?
A: Flexible customization are supported. We can adjust the output current, change the pin definitions, enable reserved NC expansion pins, and customize special functions such as light sensing.
Q4: Can I get samples for compatibility test before mass order?
A: Samples are available for testing. We recommend sample verification first to avoid mismatch between LCD control board and LCD panel during mass production.
Q5: Does the driver board come with a warranty?
A: Yes, we offer a 12-month quality warranty on standard products, effective from the date of receipt. The warranty covers manufacturing defects that are not caused by human error.
HXD2680HV-V4 driver board is mainly used to support TFT LCD, with 1-channel VGA, 2-channel HDMI input interfaces (HDMI1 supports audio, HDMI2 supports DVI signal), supporting LVDS, TTL output interfaces. With stable performance and high compatibility, it is widely used in industrial control systems, digital signage displays, and custom monitor solutions.
Product Manager:Mark Si
HXD2680HV-V5 LCD control board is mainly used to support TFT LCD displays, with 1-channel HDMI, 1-channel VGA input interfaces, supporting LVDS output interfaces. Supporting resolutions up to 1920×1200 and -30℃ to 85℃ wide-temperature operation. HXD2680HV-V5 features a small-size with overall dimensions of 74.82 mm × 53 mm × 16.5 mm (L × W × H). Its small footprint makes it ideal for installation in confined spaces, and it is suitable for small-screen devices, handheld terminals, and compact industrial instruments.
HXD2680HV-V9.1 LCD control board comes with versatile interfaces. It is a TTL and LVDS controller board with VGA, HDMI and AV signals inputs. This LCD panel driver board integrates LED backlight driver circuit and T-CON circuit, and supports backlight brightness adjustment via PWM duty cycle. Supporting resolutions up to 1920×1200. It is ideal for industrial control panels, transportation display systems, and self-service kiosks displays.
