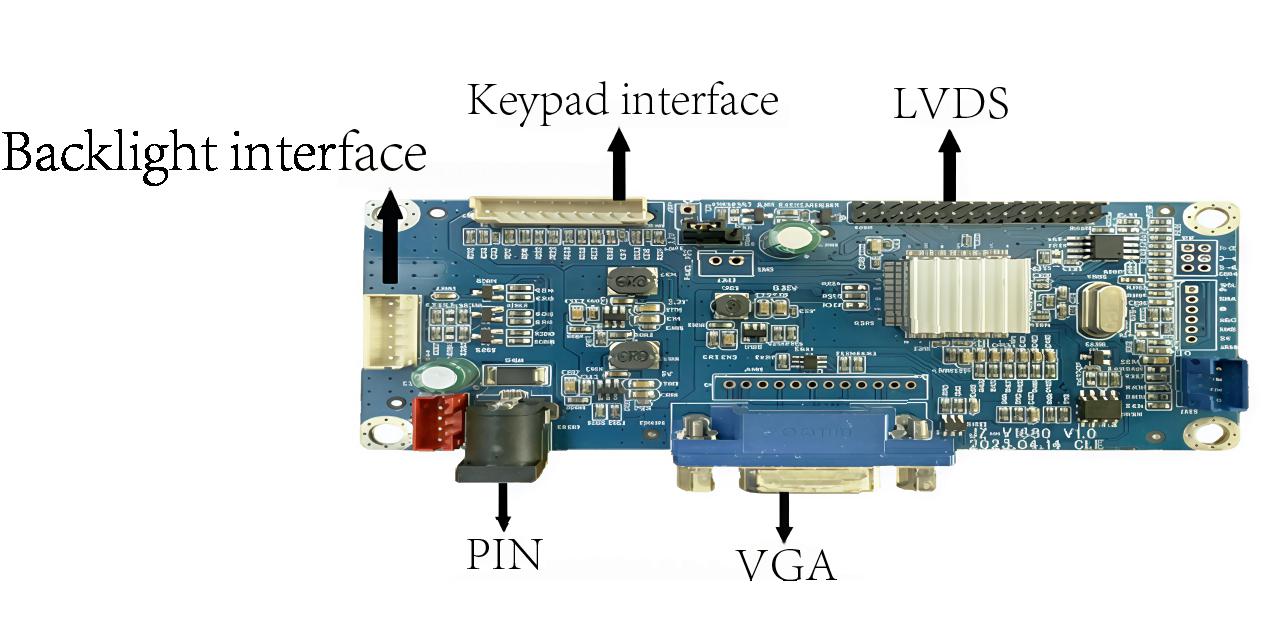

HXD-V1680
HXD-V1680

HXD-V1680

Product model: HXD-V1680
Operating temperature range-20 to 65℃.
The driver board has 1 VGA interface and supports LVDS output interface.
It supports resolutions up to 1920 x 1200.
Size specifications: length x width x height 106.78mm x 50.11mm x 15mm
Download PDF Send Message

Product overview

Working temperature range: -20 to 65℃.
Optional addition of automatic light-sensing control.
Supports maximum resolution up to 1920x1200.
Can receive remote control function.
Basic resolutions all support up to 85Hz.
Supports serial port protocol control.

Product feature

Display output Maximum resolution: Max:1920x1200
Output interface: Single/Dual/LVDS
Support signal Simulated RGB: Horizontal Freq 30-120KHz
Vertical Freq 50-75Hz
0.7Vp-p@75ohm
Separate/ Composite/ SOG sync support
Button Power,Menu,Exit,Plus,Minus
Menu type Graphical menu
Language support Support for 16 languages including Chinese and English
Functional operations Picture Mode/Brightness/Contrast/Saturation/Sharpness/Hue
FUNCTION Language/Reset/Color Temp.
PC Clock Phase H position V position Auto configure
Power supply Stand-by <0.5W 12Vstb/200mA
Input 12V/dc Notel:
