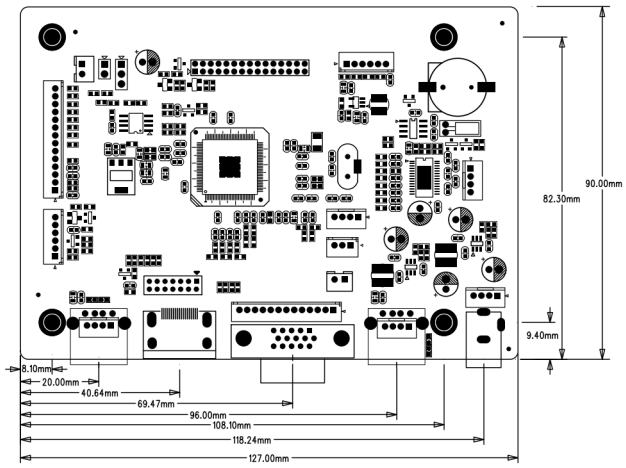

HXD-MP16

HXD-V53 LCD display driver board is a multi-interface industrial LCD driver board that supports HDMI, VGA, DVI, YPBPR and CVBS signal inputs, as well as LVDS and CVBS signal outputs. Supports 1080P full HD multimedia decoding. Optional 2×6W amplifier, or audio transmission via adjustable FM radio for vehicle radio reception. Media intercutting available during playback. True-color image/video boot screen, vertical flip, multi-language OSD and IR remote control supported. HXD-V53 LCD control board offers comprehensive functionality, convenient debugging and stable operation, providing a one-stop solution for LCD driver requirements in industrial control equipment.

HXD-V56 LCD control board comes with versatile interfaces. HXD-V56 LCD driver board support HDMI, VGA, DVI, YPBPR and CVBS signal inputs, LVDS and CVBS signal outputs. This LCD display driver board supports Full HD 1080p multimedia decoding and can be fitted with an optional 2×6W amplifier, alternatively, audio can be transmitted via FM and received through the in-car radio (the FM frequency can be freely configured via the factory menu). Video, images and audio playback can be interrupted at will, it supports full-color start-up screens (images and videos). Vertical flip display, multi-language OSD and infrared remote control supported.

HXD-HP98 LCD panel driver board is a eDP controller board that supports HDMI, DP signal input, and V-By-ONE, eDP signal output. The LCD control board supports -20℃~+60℃ wide temperature operation, supporting resolutions up to 4K. HXD-HP98 LCD motherboard features a built-in VBY1 interface, supports 4K eDP signal output, supports eDP LCD display panels in both HBR and HBR2 formats. HXD-HP98 LCD driver board incorporates four composite digital interfaces, supporting HDMI and DP interfaces, USB upgrade function is available. The main board adopts MTK signal processing chip, which has powerful processing function and can support all kinds of standard and non-standard signals. Using high specification devices, it has good working performance.

HXD-UHD screen motherboard is equipped with 1 VGA input, 1 DVI input, 1 HDMI input, 1 Displayport input and V-By-ONE or EDP output. HXD-UHD LCD driver board is mainly designed for TFT LCD panels equipped with VBY1 interfaces, and it is 4K Ultra HD display solution that delivers ultra-high-definition output with a maximum resolution of 4096×2160. The LCD control board supports LCD screen rotation at 90°, 180° and 270°, free adjustment of window size and position, as well as pixel-perfect point-to-point display. It supports PIP and PBP modes, suitable for 4K industrial displays, 4K medical imaging displays and commercial 4K advertising screens.
