HXD-LP6607 is a high-performance DC-DC LED driver board for supplying constant current specifically engineered for LCD display backlight systems. Designed to provide stable and efficient LED power management, it converts a 12V DC input into a regulated constant current output, ensuring consistent brightness, reduced power consumption, and extended LED lifespan. Whether you're designing new equipment or replacing a backlight driver board, HXD-LP6607 offers a dependable solution for industrial, medical, commercial, and embedded display applications.
35~70 (VDC)
The optimized DC-DC conversion architecture minimizes heat generation while improving overall system efficiency.
Benefits include: Lower operating temperature, Reduced power consumption, Increased reliability, and Longer service life.
Unlike conventional power supplies, HXD-LP6607 delivers a regulated constant current output.
This helps prevent: Brightness fluctuation, LED flickering, Uneven illumination, and Premature LED aging.
Resulting in a more stable and professional display performance.
Integrated dimming control allows flexible brightness adjustment according to application requirements.
Dimming Voltage: 0V = Maximum Brightness & 5V = Minimum Brightness
Suitable for: Day/Night operation, Automatic brightness control and Energy-saving systems
The LED driver board includes fuse protection on the input side to improve system safety and reduce the risk of damage caused by abnormal current conditions.
The DC to DC backlight inverter board is special designed on any type LCD display in implement (i.e. LCD monitor, notebook, laptop computers etc.). Our customers have applied this LED backlight driver board to the following devices:
The output current can be matched by adjusting the return resistor according to the requirements of the LED backlight module parameters (voltage and current). Before purchasing LED driver boards, you need to tell us the backlight parameters of your LCD panel, and we will adjust the appropriate parameters for you before shipment. If you do not know the parameters of the LCD panel you plan to use, you can tell us the panel model number, and we will help you find it.

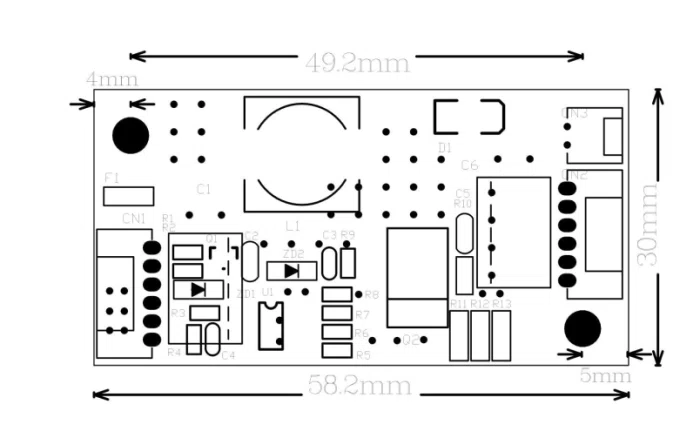

Clicking "Download" will provide you with a detailed parameter datasheet for HXD-6607 LED driver board. The mechanical drawings are as follows：
HXD-LP6607 LED driver board is suitable for: 12.1-inch LCD screens, 13.3-inch LCD screens, 15-inch LCD screens, 15.6-inch LCD screens, 17-inch LCD screens, 18.5-inch LCD screens, 19-inch LCD screens, 21.5-inch LCD screens, 24-inch LCD screens, and other LCD display modules using LED backlighting.
If your LCD panel is between 12 and 24 inches but the corresponding size is not displayed, please contact us. This backlight driver board is a universal LED driver board suitable for 12-24 inch LCD display modules of any brand.
Hengxinda is a China supplier and manufacturer specializing in industrial LCD screens and core LCD display components. With 15 years of deep expertise in the industrial display, we provide competitive LCD display solutions to customers worldwide through our unique dual-engine model of direct supply from original equipment manufacturers and customization at our own factories. We have established long-term, stable strategic partnerships with the world’s leading panel manufacturers and maintain a consistent supply of original Grade A industrial LCD screens ranging from 3.5 to 32 inches from the following brands: AUO, BOE, IVO, Sharp, Chimei Innolux, Kyocera, and others. In addition to LCD panel distribution, we specialize in the R&D and production of related accessories. Our product lines include: capacitive touch screens, resistive touch screens, infrared touch screens, LCD driver boards, LCD backlight LED driver boards, knob dimming modules, button dimming modules (for brightness adjustment in special environments such as medical, marine, and aviation applications), and cable : LVDS cables, eDP cables, and custom industrial display cables across various categories. We Promise: ♦ Constant Stock and Fast Shipping: We maintain a safety stock of standard brand models and in-house manufactured boards, enabling shipment within 24–48 hours of receiving an order. ♦ End-to-End Logistics Traceability: We collaborate closely with DHL, FedEx, UPS, and major ocean freight forwarders to provide full tracking and declared value services. ♦ 12-Month Manufacturer Warranty: All products come with a minimum one-year official warranty; our in-house boards and touchscreen products are eligible for extended technical support. ♦ 1-on-1 Remote Debugging by Engineers: We offer a 24/7 rapid response mechanism. During the equipment debugging phase, our hardware and software engineers will provide you with 1-on-1 online technical support. ♦ Long-Term Supply Lifecycle Guarantee: Recognizing the long lifecycle of industrial control equipment, Hengxinda commits to providing 3–5 years of stable, long-term supply for core models. For EOL models, we offer a comprehensive solution featuring our own in-house boards and alternative panel options to ensure your projects never face production interruptions.
Q1. Can HXD-LP6607 LED driver board replace my existing LED driver board?
A: In many cases, yes. Please provide:
Existing driver board model
LCD panel model
LED backlight specifications
Our engineers will verify compatibility.
Q2. Is the output current adjustable?
A: Yes. The output current can be adjusted by modifying the feedback resistor according to LED backlight requirements.
Q3. Does it support industrial applications?
A: Absolutely. The LED driver board is designed for industrial LCD display systems and supports continuous operation in demanding environments.
Q4. Can I get a sample before mass production?
A: Yes. Sample testing is available for evaluation and compatibility verification.
Q5. What LCD panel sizes are supported?
A: The HXD-LP6607 is designed for 12-inch to 24-inch LED-backlight LCD displays.
