HXD-LP0632-3C LED Driver Board | 10.1"-37" inch LCD Panel

Download PDF Send Message

HXD-LP0632-3C is a high-performance DC-DC LED light driver board specially designed for 10.1- to 37-inch TFT LCD display modules. It is widely used in high-brightness LCD display advertising machines, industrial displays, portable laptops, self-service machinery, and LCD TVs, etc.

Model	HXD-LP0632-3C
Suitable LCD Panel Load	10.1-37 inches TFT LCD Displays
Mechanical Dimension	160×30×11 mm
Operating Temperature	-20~70℃
Input Voltage	11.5~13 (VDC)
Output Voltage	35~70 (VDC)

HXD-LP0632-3C Key Features

♦ Wide Dimming Range: Supports 0V to 5V analog dimming voltage control ( $0\text{V} = \text{Maximum brightness}$ , $5\text{V} = \text{Minimum brightness}$ ) for precise brightness engineering.

♦ Ambient Light Sensor Interface: Built with a dedicated CN2 (4P 1.25) external light sensor interface, enabling your device to automatically dim or brighten based on ambient light. Perfect for outdoor readable displays.

♦ Comprehensive Circuit Protection: Integrated fuse protection on the input line safeguards your critical mainboards against input overcurrent overloads.

♦ ESD Shielded Packaging: Shipped 100% in ESD shielding bags to protect sensitive components from electrostatic or magnetic interference during transit.

♦ High Performance, Low Power Consumption: Featuring an impressive efficiency of up to 93.5%, it significantly minimizes heat accumulation inside industrial enclosures, extending the life of both your LED light strips and LCD panels.

♦ 100% Flexible Adjustment to Match Your Screen: The output current can be finely tuned between 35mA and 350mA by adapting the feedback resistors based on your backlight datasheets. One LED driver board fits multiple TFT LCD panel models, reducing your inventory pressure.

♦ Proven Industrial Reliability: Every batch passes rigorous full-load burn-in testing at $60^\circ\text{C} \pm 5^\circ\text{C}$ and low-temperature startup tests, guaranteeing reliable 24/7 operation in harsh environments from $-20^\circ\text{C}$ to $70^\circ\text{C}$ .

HXD-LP0632-3C Key Datasheet

Technical Parameter	Specification Details
Model	HXD-LP0632-3C
Type	DC-DC LED Backlight Driver Board / Constant Current Source
Suitable LCD Panel Load	10.1" to 37" LED Backlight Displays
Mechanical Dimension	120mm × 30mm × 11mm (L × W × H) ±0.5mm
Input Voltage (Vin)	12 V DC (Min: 11.5V, Max: 13.0V)
Input Current (Iin)	1A ~ 2.5A (Typical: 2A)
Input Power (Pin)	11.5W ~ 32.5W (Typical: 24W)
Output Voltage (Vout)	35V ~ 70V DC (Automatically adjusts to LCD panel load)
Output Current	200mA ~ 350mA (Customizable via backlight parameters)
Max Output Power	30W
Efficiency	Up to 93.5% (High performance, low consumption)
Dimming Mode	DC Dimming (Brightness Voltage: 0V = Max, 5V = Min)
Operating Temperature	-20°C to +70°C (Industrial Grade)
Storage Temperature	-20°C to +70°C
Operating Humidity	10% ~ 95% RH
Storage Humidity	10% ~ 95% RH

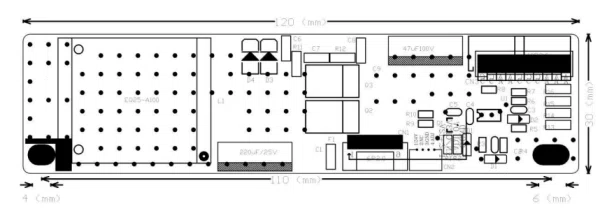

The mechanical drawings are as follows：

HXD-LP0632-3C Interface & Pin Definitions

♦ Power Input Connector: CN1 (6P 2.0 Pitch)

• Pin 1, 2 (+12V): Supply Voltage Input (11.5V–13V)

• Pin 3 (N/F or ON/OFF): Standby/Operation Control (On = 2.5V–5V, Off = 0V–2.5V)

• Pin 4 (ADJ / DIM): Dimming Control (0V = Max Brightness, 5V = Min Brightness)

• Pin 5, 6 (GND): Ground (0V)

♦ External Light Sensor Interface: CN2 (4P 1.25 Pitch)

• Pin 1: +12V | Pin 2: NC (No Connection) | Pin 3: GND | Pin 4: ADJ Dimming Control

♦ LED Backlight Output Connector: CN3 or NP1 (2P 2.0 / 10P 2.0)

• LED+ (A): LED Power Supply Positive (35V~70V)

• LED- (C): LED Feedback Negative (0V)

HXD-LP0632-3C Installation & Assembly Notices

• Safety Clearance: To prevent high-voltage breakdown, ensure a minimum clearance of at least 5.0mm between the inverter board and any metal parts of the system, or add an approved insulation sheet.

• Unused Channels: If any group of output lines is not required for your screen layout, please leave that terminal floating (unconnected).

• ESD Handling: Since this product is an open-frame inverter without an outer enclosure, always use proper ESD grounding wrist straps during unboxing, testing, and installation.

About Zhengzhou Hengxinda Technology Co., Ltd

Hengxinda is a China supplier and manufacturer specializing in industrial LCD screens and core LCD display components. With 15 years of deep expertise in the industrial display, we provide competitive LCD display solutions to customers worldwide through our unique dual-engine model of direct supply from original equipment manufacturers and customization at our own factories.
We have established long-term, stable strategic partnerships with the world’s leading panel manufacturers and maintain a consistent supply of original Grade A industrial LCD screens ranging from 3.5 to 32 inches from the following brands: AUO, BOE, IVO, Sharp, Chimei Innolux, Kyocera, and others. In addition to LCD panel distribution, we specialize in the R&D and production of related accessories. Our product lines include: capacitive touch screens, resistive touch screens, infrared touch screens, LCD driver boards, LCD backlight LED driver boards, knob dimming modules, button dimming modules (for brightness adjustment in special environments such as medical, marine, and aviation applications), and cable : LVDS cables, eDP cables, and custom industrial display cables across various categories.
We Promise:
♦ Constant Stock and Fast Shipping: We maintain a safety stock of standard brand models and in-house manufactured boards, enabling shipment within 24–48 hours of receiving an order.
♦ End-to-End Logistics Traceability: We collaborate closely with DHL, FedEx, UPS, and major ocean freight forwarders to provide full tracking and declared value services.
♦ 12-Month Manufacturer Warranty: All products come with a minimum one-year official warranty; our in-house boards and touchscreen products are eligible for extended technical support.
♦ 1-on-1 Remote Debugging by Engineers: We offer a 24/7 rapid response mechanism. During the equipment debugging phase, our hardware and software engineers will provide you with 1-on-1 online technical support.
♦ Long-Term Supply Lifecycle Guarantee: Recognizing the long lifecycle of industrial control equipment, Hengxinda commits to providing 3–5 years of stable, long-term supply for core models. For EOL models, we offer a comprehensive solution featuring our own in-house boards and alternative panel options to ensure your projects never face production interruptions.

FAQ

Q1: Can the output current of HXD-LP0632-3C be customized for our specific screen?

A: Yes. While the maximum default total output current is up to 350mA, this LED driver board is equipped with customizable feedback resistors. You can send us your LCD panel's backlight specifications (voltage and current), and our factory will adjust the resistors to match your exact parameters before delivery.

Q2: Is this LED backlight driver board stable enough for outdoor digital signage?

A: Yes, it is explicitly built for industrial and outdoor conditions. It withstands temperatures from -20~70℃. Additionally, the dedicated CN2 sensor interface allows you to connect an external photosensitive probe, enabling auto-brightness tuning which prevents panel overheating and saves energy.

Q3: Do you provide sample?

A: Yes. We use professional calibrated equipment including oscilloscopes, power meters, and environmental simulators to test each unit.

Q4: What is your MOQ and lead time for volume procurement?

A: As the direct manufacturer, we offer flexible MOQs. Small batches for trial prototyping (e.g., 2-50 units) are supported if stock is available. Mass production lead times typically range within 1-2 weeks depending on your current customization settings. Click "Inquiry Now" to get a quick quote from our engineering team.
