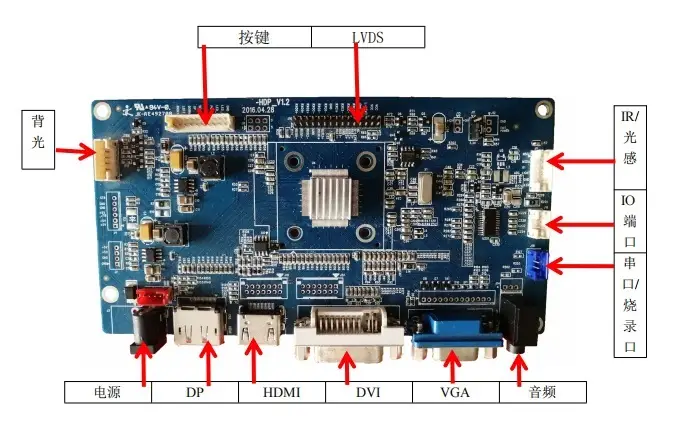

HXD-HDP screen motherboard is a multi-interface industrial LCD driver board that supports HDMI, VGA, DVI and Displayport signal inputs, as well as LVDS signal outputs. HXD-HDP LCD control board can operate stably at temperatures as low as -40℃. Supporting resolutions up to 1920×1080 and 1920×1200. It features optional auto light sensing function. HXD-HDP LCD driver board supports high-definition signal input and high-bandwidth transmission. It is suitable for medical imaging equipment, outdoor unattended terminals, industrial control and testing equipment, security surveillance display equipment, and more.
| Model | HXD-HDP |
| Maximum resolution | 1920×1200 |
| Mechanical Dimension | 164mm x 85mm x 16mm |
| Operating Temperature | -40~70℃ |
| Input Interface | 1 VGA input, 1 DVI input, 1 HDMI input, 1 Displayport input, 1 audio input |
| Output Interface | 2 * 8W speaker output, 2 channels LVDS output. |
• Ultra-wide operating temperature
Wide operating temperature ranges from -40℃ to +70℃. The HXD-HDP LCD screen motherboard can withstand harsh environments with drastic temperature fluctuations. The LCD driver board utilises industrial-grade electronic components designed for stable performance under extreme cold and high temperature environments, suitable for outdoor kiosks, industrial and vehicle display devices.
• Optional automatic light-sensing dimming function
The LCD driver board features a reserved light-sensing interface, allowing a light-sensing module to be fitted as required to enable automatic light-sensing control. It continuously monitors ambient light levels and dynamically adjusts the backlight brightness accordingly, increasing LCD screen brightness in bright conditions and automatically reducing it in low-light conditions.
• High-bandwidth transmission
Equipped with a DisplayPort V1.2 interface, the LCD mother board supports 2.7Gbps and 1.62Gbps per lane, 10.8Gbps bandwidth over 4 lanes. High-bandwidth transmission ensures no image compression or signal trailing, reliably carrying high-definition image data whilst preventing issues such as screen distortion and stuttering during high-speed transmission, making it perfectly suited to the demands of high-resolution dynamic image output.
• Built-in 2×8W dual-channel audio amplifier
Built-in 2×8W dual-channel audio amplifier, which can directly drive external speakers without extra audio modules. The audio output is clear, free from noise and with low distortion, eliminating the need to purchase and install additional audio components. It is suitable for digital signage, self-service terminals and in-vehicle displays equipped with voice announcement and video playback functions.
✅️ Need more functions?
Contact us for custom solutions! Apart from the standard functions, our LCD control board comes with plenty of reserved functions and unused interfaces, which are set to NC by factory default. If you have extra demands for additional functions, signal ports or hardware configurations, please feel free to contact us. Our team can conduct personalized development and customization to fully fit your project.
| Display output | Maximum resolution | Max:1920x1080 1920x1200 | ||||
| Output Interface | Single/Dual/LVDS | |||||
| Support signal | Analog RGB | Horizontal Freq | 30-120KHz | |||
| Vertical Freq | 50-75Hz | |||||
| 0.7Vp-p@75ohm | ||||||
| Separate/Composite/SOG sync support | ||||||
| Digital DVI | Horizontal Freq | 30-120KHz | ||||
| Vertical Freq | 50-75Hz | |||||
| Display port input | Supports 2.7Gbps and 1.62Gbps per lane | |||||
| OSDKeypad | Power,Menu,Exit,Plus,Minus | |||||
| Menu type | Graphical Menu | |||||
| Language support | Supports languages including English | |||||
| Function operations | Picture | Mode/Brightness/Contrast/Saturation/Sharpness/Hue | ||||
| FUNCTION | Language/Reset/Color Temp. | |||||
| PC | Clock | Phase | H position | V position | Auto configure | |
| Power | Stand-by | <1W 12Vstb/200mA | ||||
| Input | 12V/dc Note1: | |||||

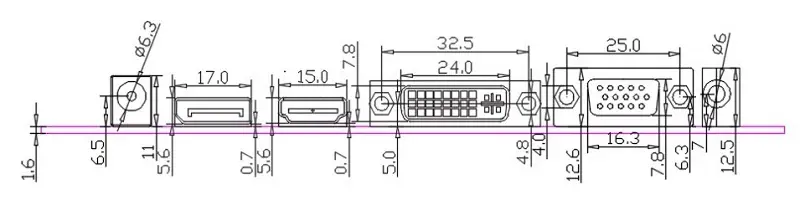

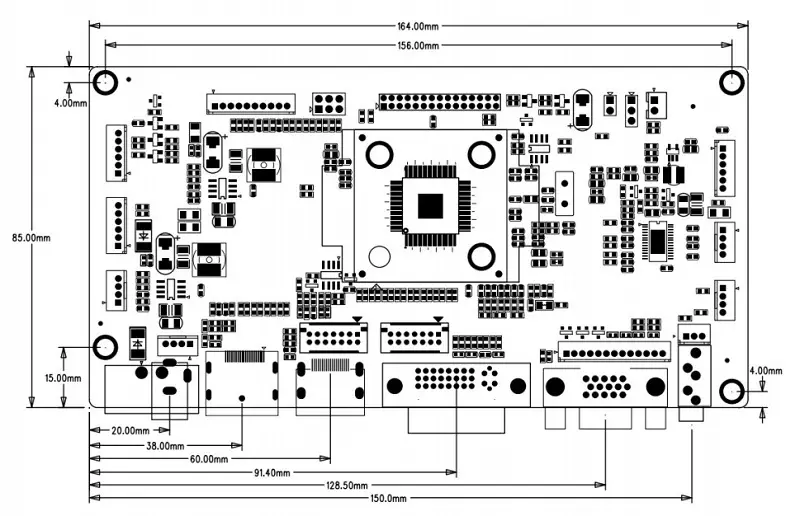

PCB thickness: 1.6 mm
Total height: 14.2 mm
Dimensions: 164 x 85 mm
The table below only lists partial models of LCD panels compatible with this LCD driver board and does not cover all supported screen specifications. If the LCD panel used in your project is not included in the table, or you are unsure which driver board matches your existing screen, feel free to contact our sales and technical team at any time. We will conduct a comprehensive assessment based on your screen’s specifications and recommend the most suitable driver board solution. We can also provide supporting technical assistance, such as customisation of features.
| Inch | Brand | Panel Model | Resolution | Brightness(cd/㎡) | Interface | Operating Temperature |
| 7" | Innolux | G070ACE-LH1 | 800×480 | 1000 | LVDS | -30 ~ 80°C |
| AUO | 800×480 | 480 | LVDS | -30 ~ 80°C | ||
| 8.4" | AUO | G084SAN01.0 | 800×600 | 450 | LVDS | -20 ~ 70°C |
| 10.1" | Innolux | G101ICE-LH1 | 1280×800 | 500 | LVDS | -30 ~ 80°C |
| AUO | G101EAN02.4 | 1280×800 | 400 | LVDS | 0 ~ 60°C | |
| 10.4" | BOE | GV104X0M-N10 | 1024×768 | 450 | LVDS | -30 ~ 85°C |
| Innolux | G104X1-L03 | 1024×768 | 350 | LVDS | -20 ~ 70°C | |
| AUO | G104XVN01.0 | 1024×768 | 470 | LVDS | -30 ~ 80°C | |
| 12.1" | Innolux | G121ACE-LH2 | 800×600 | 600 | LVDS | -30 ~ 85°C |
| AUO | G121EAN01.4 | 1280×800 | 300 | LVDS | -30 ~ 85°C | |
| 13.3" | AUO | G133HAN01.1 | 1920×1080 | 400 | LVDS | -20 ~ 70°C |
| 15" | AUO | 1024×768 | 500 | LVDS | -20 ~ 70°C | |
| 15.6" | AUO | G156HAN04.0 | 1920×1080 | 1000 | LVDS | -30 ~ 85°C |
| AUO | G156XW01 V312 | 1366×768 | 500 | LVDS | 0 ~ 60°C | |
| 17" | Innolux | G170ECE-LE3 | 1280×1024 | 400 | LVDS | 0 ~ 60°C |
| AUO | G170ETN02.1 | 1280×1024 | 800 | LVDS | -30 ~ 85°C | |
| 19" | AUO | G190EAN01.5 | 1280×1024 | 700 | LVDS | 0 ~ 50°C |
| 21.5" | Innolux | G215HCJ-LH1 | 1920×1080 | 1400 | LVDS | -30 ~ 80°C |
| AUO | G215HAN01.3 | 1920×1080 | 250 | LVDS | 0 ~ 60°C |
HXD-V53 LCD display driver board is a multi-interface industrial LCD driver board that supports HDMI, VGA, DVI, YPBPR and CVBS signal inputs, as well as LVDS and CVBS signal outputs. Supports 1080P full HD multimedia decoding. Optional 2×6W amplifier, or audio transmission via adjustable FM radio for vehicle radio reception. Media intercutting available during playback. True-color image/video boot screen, vertical flip, multi-language OSD and IR remote control supported. HXD-V53 LCD control board offers comprehensive functionality, convenient debugging and stable operation, providing a one-stop solution for LCD driver requirements in industrial control equipment.
| Model | HXD-V53 |
| Maximum resolution | 1920 x 1080 |
| Mechanical Dimension | 132.13mm x 82.13mm x 15mm |
| Operating Temperature | -20~60℃ |
| Input Interface | 2 CVBS input, 1 VGA input, 1 HDMI/DVI input, 1 YPBPR input, 1 USB (capable of reading high-definition video and images), 1 audio input |
| Output Interface | Dual LVDS output, 1 CVBS output, 1 audio output |
HXD-VH68U LCD screen control board adopts HDMI and VGA input and LVDS output for wide compatibility. Wide temperature operation. Supports automatic light sensing, rotary knob brightness adjustment, multiple languages, DICOM-compliant brightness control, and gamma control (with 7 preset gamma curves). With maximum resolution up to 1920 x 1200, it presents sharp and clear images, perfectly suited for various high-definition display applications.
| Model | HXD-VH68U |
| Maximum resolution | 1920 x 1200 |
| Mechanical Dimension | 121mm x 70mm x 16mm |
| Operating Temperature | -20~60℃ |
| Input Interface | 1 VGA input, 1 HDMI input, 1 USB adapter input, 1 audio input |
| Output Interface | 2 x 8W speaker output, Dual LVDS output |
HXD-EDP58H LCD panel driver board is a eDP controller board that supports VGA, DVI, HDMI signal input, and eDP signal output. The LCD control board supports -30℃~+70℃ wide temperature operation. Supporting resolutions up to 1920×1200. HXD-EDP58H LCD motherboard supports external power control for large screens, with ultra-low standby power consumption. Auto dimming and infrared remote control functions are available. The main board adopts MSTAR signal processing chip, which has powerful processing function and can support all kinds of standard and non-standard signals. Using high specification devices, it has good working performance.
| Model | HXD-EDP58H |
| Maximum resolution | 1920×1200 |
| Mechanical Dimension | 139mm x 85mm x 14mm |
| Operating Temperature | -30~70℃ |
| Input Interface | 1 VGA input, 1 DVI input, 1 HDMI input, 1 audio input |
| Output Interface | 2 x 8W speaker output, EDP output |
