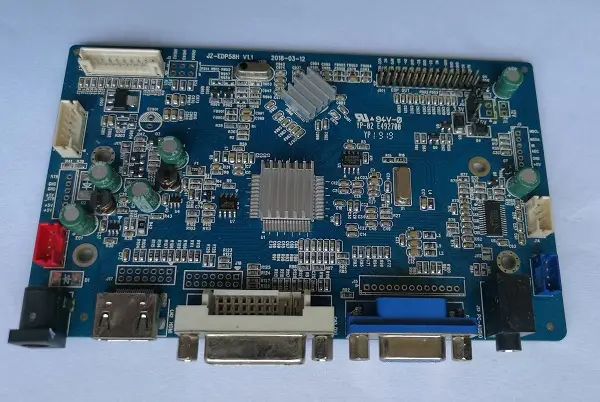

HXD-EDP58H LCD panel driver board is a eDP controller board that supports VGA, DVI, HDMI signal input, and eDP signal output. The LCD control board supports -30℃~+70℃ wide temperature operation. Supporting resolutions up to 1920×1200. HXD-EDP58H LCD motherboard supports external power control for large screens, with ultra-low standby power consumption. Auto dimming and infrared remote control functions are available. The main board adopts MSTAR signal processing chip, which has powerful processing function and can support all kinds of standard and non-standard signals. Using high specification devices, it has good working performance.
| Model | HXD-EDP58H |
| Maximum resolution | 1920×1200 |
| Mechanical Dimension | 139mm x 85mm x 14mm |
| Operating Temperature | -30~70℃ |
| Input Interface | 1 VGA input, 1 DVI input, 1 HDMI input, 1 audio input |
| Output Interface | 2 x 8W speaker output, EDP output |
| Display output | Maximum resolution | Max:1920x1200 | ||||
| Output Interface | eDP | |||||
| Support signal | Analog RGB | Horizontal Freq | 30-120KHz | |||
| Vertical Freq | 50-75Hz | |||||
| 0.7Vp-p@75ohm | ||||||
| Separate/Composite/SOG sync support | ||||||
| Digital HDMI/DVI | Horizontal Freq | 30-120KHz | ||||
| Vertical Freq | 50-75Hz | |||||
| OSDKeypad | Power,Menu,Exit,Plus,Minus | |||||
| Menu type | Graphical Menu | |||||
| Language support | Supports 8 languages including Chinese and English | |||||
| Function operations | Picture | Mode/Brightness/Contrast/Saturation/Sharpness/Hue | ||||
| FUNCTION | Language/Reset/Color Temp. | |||||
| PC | Clock | Phase | H position | V position | Auto configure | |
| Power | Stand-by | <0.5W 12Vstb/200mA | ||||
| Input | 12V/dc Note1: | |||||
Note 1: Please test the maximum power consumption based on actual usage conditions.
• Ultra-wide operating temperature
Wide operating temperature ranges from -30℃ to +70℃. The HXD-EDP58H LCD screen motherboard can withstand harsh environments with drastic temperature fluctuations. The LCD driver board utilises industrial-grade electronic components designed for stable performance under extreme cold and high temperature environments, suitable for outdoor kiosks, industrial and vehicle display devices.
• Optional automatic light-sensing brightness control Support potentionmeter knob dimming
Equipped with reserved light sensor port, the LCD control board dynamically adjusts backlight brightness according to surrounding light intensity to balance viewing experience and power consumption, widely applied to outdoor signage and vehicle displays.
• Support potentionmeter knob dimming
With support for knob-based dimming, operators can adjust the LCD screen’s backlight brightness in real time simply by turning the knob, without needing to access the OSD menu or use a remote control. This makes operation convenient and efficient during on-site commissioning and when frequent fine-tuning of brightness is required.
• Supports external power control for large screens, with ultra-low standby power consumption
The LCD control board supports external power linkage control for large-format displays. Equipped with low-power standby circuitry, perfect for 7×24h continuous-operation devices such as digital signage, medical equipment and industrial monitors. It effectively saves long-term electricity costs and extends the service life of power supplies and backlight components.
• Supports infrared remote control reception and control function
The eDP driver board reserves an infrared interface and supports long-distance operation via matching IR remote control. It enables signal source switching, brightness adjustment, parameter configuration, power on/off and other operations. No close physical contact with the device is required, making it convenient for debugging and daily management of equipment that cannot be touched directly.
• Dual mounting hole pads gounding compatible design
Dual mounting hole grounding pads (J111 & J112) for wider compatibility. Short the two pads when ESD grounding is required, keep them open if grounding is unnecessary. One single PCB supports two assembly schemes without redesign, cutting R&D costs for multiple device models.
PCB thickness: 1.60 mm
Total height: 15.00 mm

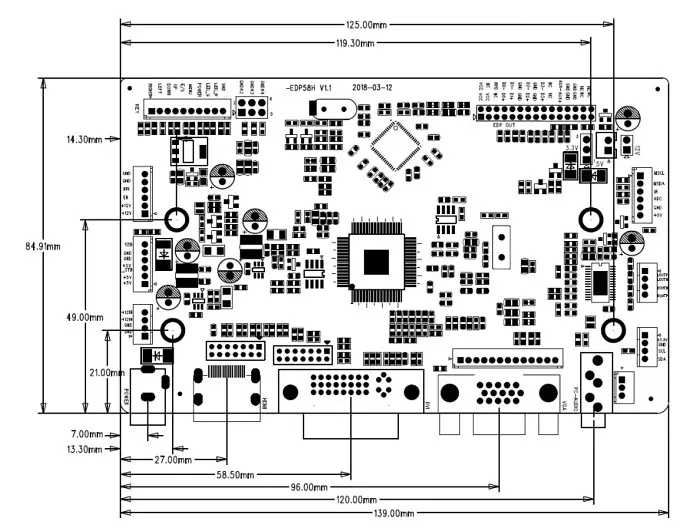

Dimensions: 139.00 x 84.91 mm
As a professional industrial LCD display solutions provider with over a decade of experience, Hengxinda not only offers high-quality LCD driver boards and LED backlight driver board but is also an authorized distributor for the world’s leading LCD panel manufacturers (AUO, BOE, Innolux, IVO, Sharp etc.). We supply complete integrated solutions consisting of LCD panel with controller board. We offer compatible cables, driver boards, touch screens and other accessories.
We offer customization services, including interface modifications, the addition or removal of features, and hardware parameter tuning. We can devise a comprehensive display solution tailored to your equipment’s installation space, signal requirements, operating environment, resolution and power supply conditions, providing a one-stop solution to all your display requirements. By choosing us, you’ll enjoy a one-stop, all-inclusive “LCD panel + matched accessories” package:
100% Compatibility Guarantee: Before shipment, our engineers will perform current-based screen calibration on the LCD driver board using the specific LCD panel you’ve selected, ensuring perfect parameter matching.
One-Stop Procurement: We provide a complete set of LCD panels, touchscreens, backlight driver boards, AD driver boards, and a full suite of custom industrial-grade screen connection cables, eliminating the hassle of sourcing from multiple suppliers and coordinating with various parties.
Unified After-Sales Responsibility: The entire solution comes with a unified warranty, completely eliminating technical disputes where panel and driver board manufacturers shift blame onto each other at the source.
HXD-VH68U LCD screen control board adopts HDMI and VGA input and LVDS output for wide compatibility. Wide temperature operation. Supports automatic light sensing, rotary knob brightness adjustment, multiple languages, DICOM-compliant brightness control, and gamma control (with 7 preset gamma curves). With maximum resolution up to 1920 x 1200, it presents sharp and clear images, perfectly suited for various high-definition display applications.
| Model | HXD-VH68U |
| Maximum resolution | 1920 x 1200 |
| Mechanical Dimension | 121mm x 70mm x 16mm |
| Operating Temperature | -20~60℃ |
| Input Interface | 1 VGA input, 1 HDMI input, 1 USB adapter input, 1 audio input |
| Output Interface | 2 x 8W speaker output, Dual LVDS output |

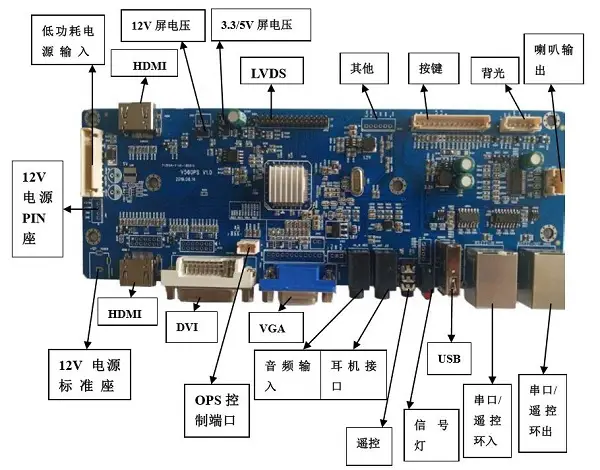

HXD-V56OPS LCD display driver board is a multi-interface industrial LCD driver board that supports HDMI, VGA, DVI and CVBS signal inputs, as well as LVDS signal outputs. 5V and 12V dual power supply, supports low-power standby mode. The LCD control board supports true-color boot screens and allows customized exclusive boot logos for customers. HXD-V56OPS LCD control board offers comprehensive functionality, convenient debugging and stable operation, providing a one-stop solution for LCD driver requirements in industrial control equipment.
| Model | HXD-V56OPS |
| Maximum resolution | 1920 x 1200 |
| Mechanical Dimension | 207mm x 71.66mm x 15mm |
| Operating Temperature | -20~60℃ |
| Input Interface | 1 VGA input, 1 DVI input, 2 HDMI input,1 CVBS input, 1 audio input, serial port input |
| Output Interface | Dual LVDS output,2 x 8W speaker output (audio output via headphone jack), serial port output |
HXD-VDH68 LCD panel driver board is designed for small and medium-sized LCD display panels and supports multiple resolutions up to 1920×1200. HXD-VDH68 LCD control board provides flexible signal conversion from HDMI, VGA and DVI interface to output options including LVDS and eDP. Supports auto dimming, black-and-white display, OSD display & control, multi-language switching and factory mode. HXD-VDH68 LCD display driver board is widely applied to industrial displays, vehicle displays, and medical equipment displays.
| Model | HXD-VDH68 |
| Maximum resolution | 1920 x 1200 |
| Mechanical Dimension | 139mm x 66mm x 15mm |
| Operating Temperature | -20~60℃ |
| Input Interface | 1 VGA input, 1 DVI input, 1 HDMI input, 1 audio input |
| Output Interface | 2 x 8W speaker output, Dual LVDS output. |
