HXD-1830L Backlight driver board is developed specifically for LCD LED backlight systems that require both stable constant-current driving and flexible brightness management. HXD-1830L backlight driver board supports both DC voltage dimming and PWM dimming, giving system designers more freedom when integrating LCD displays into industrial and commercial equipment.
Whether you are upgrading an existing display system or developing a new product, HXD-1830L provides a practical and reliable LED backlight power solution.
35~60 (VDC)
♦ Two Dimming Methods
HXD-1830L backlight driver board supports two dimming methods as following
• DC Dimming: 0V = Maximum Brightness; 5V = Minimum Brightness
Ideal for: Industrial control systems, Medical equipment, and Traditional LCD monitors
• PWM Dimming
Frequency: 1KHz – 10KHz
Input Voltage: 2V – 5V
Duty Cycle Control
Ideal for: Embedded systems, ARM controllers, Industrial PCs, Digital signage players, and Single-board computers.
This flexibility significantly reduces development time and compatibility concerns.
♦ Designed for LCD Backlight Integration
The HXD-1830L backlight driver board is specifically designed for LED backlight structures used in LCD modules.
Benefits include:
• Stable current regulation
• Consistent backlight brightness
• Reduced LED stress
• Better display uniformity
Suitable for LCD panels ranging from 10.1 inches to 24 inches.
♦ Long and Narrow PCB Design
Many equipment using LCD panel enclosures have limited installation space.
HXD-1830L backlight driver board features a slim PCB layout: Length: 120 mm; Width: 20 mm; Height: 10 mm
The narrow form factor allows easier installation inside: Industrial monitors, Digital signage displays, Medical terminals and Embedded display housings.
♦ Adjustable Output Current for Different Backlight Designs
The HXD-1830L backlight driver board allows current matching by modifying feedback resistor values.
This helps engineers:
• Optimize brightness levels
• Reduce redesign costs
• Support replacement projects
Especially useful when replacing discontinued backlight driver boards.

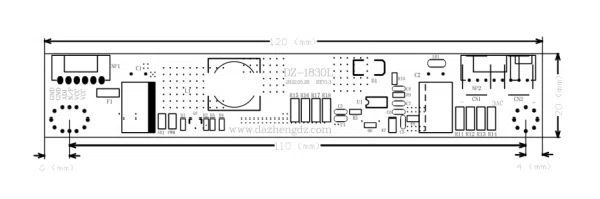

Clicking "Download" will provide you with a detailed parameter datasheet for HXD-1830L LED driver board. The mechanical drawings are as follows：
Every LCD backlight system is different.
We can assist with:
• Output current customization
• Cable harness design
• Connector modification
• Replacement board matching
• LCD backlight parameter analysis
• OEM manufacturing
• ODM development
Simply send us:
• LCD panel model number
• Backlight voltage/current information
• Existing driver board photos or sending the actual item to us.
Our engineers will help evaluate compatibility.
As a leading China supplier of industrial TFT LCD display module solutions, Hengxinda specializes in the R&D and production of LCD TFT panel products with high performance, outstanding cost-effectiveness and reliable quality. And we can also offer tailor-made LCD TFT display solutions according to your personalized needs. Whether you are exploring new LCD TFT display solutions or looking to establish a long-term and stable supply partnership, our team is ready to provide you with free professional consulting, the latest product information, and free quotation support with strong market competitiveness.
We supply complete integrated solutions consisting of LCD panel with controller board. We offer compatible cables, driver boards, touch screens and other accessories. We offer customization services, including interface modifications, the addition or removal of features, and hardware parameter tuning. We can devise a comprehensive display solution tailored to your equipment’s installation space, signal requirements, operating environment, resolution and power supply conditions, providing a one-stop solution to all your display requirements.
• Reliable Supplier: We provide original Grade A LCD screens from top brands such as AUO, Sharp, Tianma, BOE and Innolux, with stable supply and guaranteed quality.
• Rich Industry Experience: With over 10 years of in-depth involvement in sectors including industrial control, medical equipment, automotive electronics, rail transit, and military applications, we deeply understand the unique requirements of each industry.
• Professional Technical Support: Our engineering team provides full pre-sales consultation (product selection/cost optimization) and after-sales service (1-year warranty, fast response).
Q1: Can this board replace my original LCD backlight driver?
A: In many cases, yes. Compatibility depends on: LED string voltage, LED current requirements, and Connector configuration. Our technical team can assist with evaluation.
Q2: What is the biggest advantage of HXD-1830L?
A: Its dual dimming capability. Supporting both DC dimming and PWM dimming makes integration easier across different control systems.
Q3: Can I use PWM directly from my motherboard?
A: Yes. The backlight driver board supports PWM signals from 1KHz to 10KHz with 2V–5V control voltage.
Q4: Is it suitable for industrial environments?
A: Yes. The backlight driver board is designed for long-term operation in industrial display applications and supports temperatures from -20°C to +70°C.
Q5: Do you provide customization?
A: Yes. OEM and ODM services are available for customers requiring customized backlight solutions.
HXD-1820L is a high-performance LED driver board designed specifically for the backlight systems of 12 to 24-inch LCD displays. This DC-DC LED inverter serves as a universal LED backlight driver module for a wide range of TFT LCD panels. Both the LED backlight driver board and the connectable cables can be customized. And the standard version of HXD-1820L backlight driver board has an operating temperature of -20 to 70 ℃. Components can be replaced according to your requirements, and the operating temperature can reach -30 to 100℃.
Product Manager:
The HXD-1823L LED backlight driver board is a highly efficient DC-DC constant current source specifically engineered for driving LED backlight modules in 10.1---24 inches industrial and commercial TFT LCD displays. With its compact 126mm bar-shaped form factor, it easily integrates into tight enclosures, providing a steady and reliable light source for TFT-LCD panel setups.
35~70 (VDC)
Can be customized according to different backlight requirements
Product Manager:Mark Si
HXD-LP6607 is a high-performance DC-DC LED driver board for supplying constant current specifically engineered for LCD display backlight systems. Designed to provide stable and efficient LED power management, it converts a 12V DC input into a regulated constant current output, ensuring consistent brightness, reduced power consumption, and extended LED lifespan. Whether you're designing new equipment or replacing a backlight driver board, HXD-LP6607 offers a dependable solution for industrial, medical, commercial, and embedded display applications.
HXD-LP0632-3C is a high-performance DC-DC LED light driver board specially designed for 10.1- to 37-inch TFT LCD display modules. It is widely used in high-brightness LCD display advertising machines, industrial displays, portable laptops, self-service machinery, and LCD TVs, etc.
HXD-GL202 is a high-performance DC-DC LED driver board specifically engineered for medium-to-large industrial and commercial LCD displays. Functioning as a backlight driver board, HXD-GL202 provides a flawless powering solution for any LCD backlighting system adopting LED light strips.
In modern industrial LCD panel solutions, this backlight driver board offers constant current protection to prolong component longevity. Whether you need it as an urgent replacement part for a lcd led backlight driver circuit, an upgrade for a universal LED inverter board, or a built-in LED display driver board for a new OEM product deployment, HXD-GL202 is a reliable choice.
40~75 (VDC)
