The HXD-1823L LED backlight driver board is a highly efficient DC-DC constant current source specifically engineered for driving LED backlight modules in 10.1---24 inches industrial and commercial TFT LCD displays. With its compact 126mm bar-shaped form factor, it easily integrates into tight enclosures, providing a steady and reliable light source for TFT-LCD panel setups.
| Model | HXD-1823L |
| Suitable LCD Panel Load | 10.1-24 inches TFT LCD Displays |
| Mechanical Dimension | 126×20×10 mm |
| Operating Temperature | -20~70℃ |
| Input Voltage | 11.5~13 (VDC) |
| Output Voltage | 35~70 (VDC) Can be customized according to different backlight requirements |
• High Performance & Low Consumption: Delivers up to 93.5% energy efficiency, minimizing heat dissipation inside your display housing
• Wide DC Dimming Range: Features precise brightness control via voltage adjustment (0V for maximum brightness, 5V for minimum)
• Input Overload Protection: Equipped with an onboard fuse protection system to safeguard the Backlight driver board and panel against over-current hazards
• Industrial Durability: Confirmed by strict burn-in aging tests at 60°C and low-temperature start tests at 0°C, ensuring your equipment prevents black screen on startup issues even in harsh environments
| Technical Parameter | Specification Details |
| Model | HXD-1823L |
| Type | DC-DC LED Backlight Inverter / Constant Current Source |
| Suitable LCD Panel Load | 10.1" to 24" LED Backlight Displays |
| Mechanical Dimension | 126mm × 20mm × 10mm (L × W × H) ±0.5mm |
| Input Voltage (Vin) | 12 V DC (Min: 11.5V, Max: 13.0V) |
| Input Current (Iin) | 0.4A ~ 1.0A (Typical: 0.7A) |
| Input Power (Pin) | 4.6W ~ 13.0W (Typical: 8.4W) |
| Output Voltage (Vout) | 35V ~ 70V DC (Automatically adjusts to LCD panel load) |
| Output Current | 200mA ~ 220mA (Customizable via feedback resistors) |
| Max Output Power | 12W |
| Efficiency | Up to 93.5% (High performance, low consumption) |
| Dimming Mode | DC Dimming (Brightness Voltage: 0V = Max, 5V = Min) |
| Operating Temperature | -20°C to +70°C (Industrial Grade) |
| Storage Temperature | -20°C to +70°C |
| Operating Humidity | 10% ~ 95% RH |
| Storage Humidity | 10% ~ 95% RH |

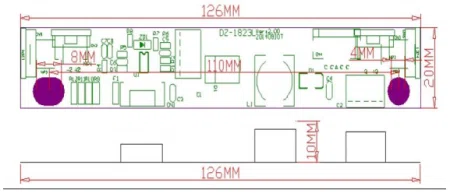

The mechanical drawings are as follows：
This versatile LED constant current drive board is widely utilized across various display industries, including
♦ LCD Display Monitors & Desktop Display Units
♦ Commercial LCD Advertising Kiosks & Digital Signage
♦ Industrial Control Terminals & Instrument Display Terminals (10.1" to 24" panels)
♦ Notebooks, Protable Devices, and Automotive Display Modules
To maintain high safety standards during hardware assembly, please adhere to the following industrial guidelines
♦ Clearance Distance: Maintain at least a 5.0mm clearance between the inverter board's active components and any surrounding metal chassis parts. Alternatively, insert an approved insulation sheet to prevent electrical breakdown
♦ ESD Protection Handling: The LED driver board is shipped in an ESD shielding bag
♦ Mechanical Stress: Do not twist, bend, drop, or apply heavy physical impact to the PCB during assembly to protect internal SMD components
♦ Need the Full Datasheet?
Click to [Download] including detailed schematic layouts.
♦ Custom Output Current Services
The default total output current is 200mA-220mA
✉️ Get a Free Quick Quote Now!
Fill out our inquiry form or contact our sales engineers directly to get price, lead times, and compatibility validation within 6 hours.

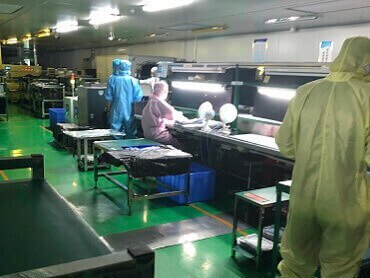

Hengxinda is a Chinese supplier and manufacturer specializing in industrial LCD screens and core LCD display components. With 15 years of deep expertise in the industrial display, we provide competitive LCD display solutions to customers worldwide through our unique dual-engine model of direct supply from original equipment manufacturers and customization at our own factories.
We have established long-term, stable strategic partnerships with the world’s leading panel manufacturers and maintain a consistent supply of original Grade A industrial LCD screens ranging from 3.5 to 32 inches from the following brands: AUO, BOE, IVO, Sharp, Chimei Innolux, Kyocera, and others. In addition to LCD panel distribution, we specialize in the R&D and production of related accessories. Our product lines include: capacitive touch screens, resistive touch screens, infrared touch screens, LCD driver boards, LCD backlight LED driver boards, knob dimming modules, button dimming modules (for brightness adjustment in special environments such as medical, marine, and aviation applications), and cable : LVDS cables, eDP cables, and custom industrial display cables across various categories.
We Promise:
♦ Constant Stock and Fast Shipping: We maintain a safety stock of standard brand models and in-house manufactured boards, enabling shipment within 24–48 hours of receiving an order.
♦ End-to-End Logistics Traceability: We collaborate closely with DHL, FedEx, UPS, and major ocean freight forwarders to provide full tracking and declared value services.
♦ 12-Month Manufacturer Warranty: All products come with a minimum one-year official warranty; our in-house boards and touchscreen products are eligible for extended technical support.
♦ 1-on-1 Remote Debugging by Engineers: We offer a 24/7 rapid response mechanism. During the equipment debugging phase, our hardware and software engineers will provide you with 1-on-1 online technical support.
♦ Long-Term Supply Lifecycle Guarantee: Recognizing the long lifecycle of industrial control equipment, Hengxinda commits to providing 3–5 years of stable, long-term supply for core models. For EOL models, we offer a comprehensive solution featuring our own in-house boards and alternative panel options to ensure your projects never face production interruptions.
Q1: For which TFT-LCD screens and devices is the HXD-1823L LED backlight driver board primarily designed?
A: HXD-1823L LED driver board is specifically designed for small-to-medium-sized LCD display and is perfectly compatible with LCD screens ranging from 10.1 inches to 24 inches. In industrial applications, it is widely used in electronic devices requiring highly stable backlight driver, such as digital signage displays, industrial LCD display monitors, industrial touch screen all-in-one computers, laptops, and automotive LCD display modules.
Q2: What are the input and output electrical specifications of HXD-1823L backlight driver board?
A: HXD-1823L uses a standard 12V DC input and has a maximum output power of 12W. Its output voltage ranges from 35V to 70V DC and automatically adjusts according to the backlight load of the connected LCD screen.
Q3: Our LED backlight module strips require a current of 260mA. Can the HXD-1823L be used? Is customization available?
A: Yes, it can be used. Although the default total output current specification for HXD-1823L is 200mA–220mA, as a direct manufacturer of LCD backlight driver boards, our products offer exceptional flexibility. If you have specific current or voltage customization requirements, please provide your LCD panel specifications when submitting an inquiry.
Q4: What dimming methods does HXD-1823L LED driver board support?
A: HXD-1823L supports wide-range DC dimming. Its dimming control voltage logic is as follows: 0V corresponds to maximum backlight brightness, and 5V corresponds to minimum backlight brightness. Engineers can smoothly control the display brightness of industrial-grade LCD screens by adjusting the DC voltage (0–5V) applied to this pin.
Q5: How does this industrial-grade backlight driver board perform in terms of temperature resistance?
A: Hengxinda has fully considered the extreme conditions of industrial control environments during R&D and production. HXD-1823L utilizes industrial-grade wide-temperature components, with operating and storage temperatures ranging from -20°C to +70°C, and operating humidity support from 10% to 95% RH.
