HXD-1820L is a high-performance LED driver board designed specifically for the backlight systems of 12 to 24-inch LCD displays. This DC-DC LED inverter serves as a universal LED backlight driver module for a wide range of TFT LCD panels. Both the LED backlight driver board and the connectable cables can be customized. And the standard version of HXD-1820L backlight driver board has an operating temperature of -20 to 70 ℃. Components can be replaced according to your requirements, and the operating temperature can reach -30 to 100℃.
• Precise Brightness Adjustment: HXD-1820L LED driver board allows for precise adjustment of screen brightness in display systems, ensuring an optimal viewing experience for users.
• High-Quality Construction: With a PCBA thickness of 10 mm, this durable board provides a robust solution for display systems.
• Wide Compatibility: HXD-1820L backlight driver board is designed for 12–24-inch displays. This constant-current driver board is suitable for a variety of display systems, including monitors and televisions.
• Energy Efficiency: The 220mA constant current source ensures efficient energy usage, reducing power consumption and heat generation.
• Reliability Guaranteed: With a built-in fuse for safety, high-quality components, and rigorous testing, HXD-1820L delivers reliable performance and minimal maintenance requirements.

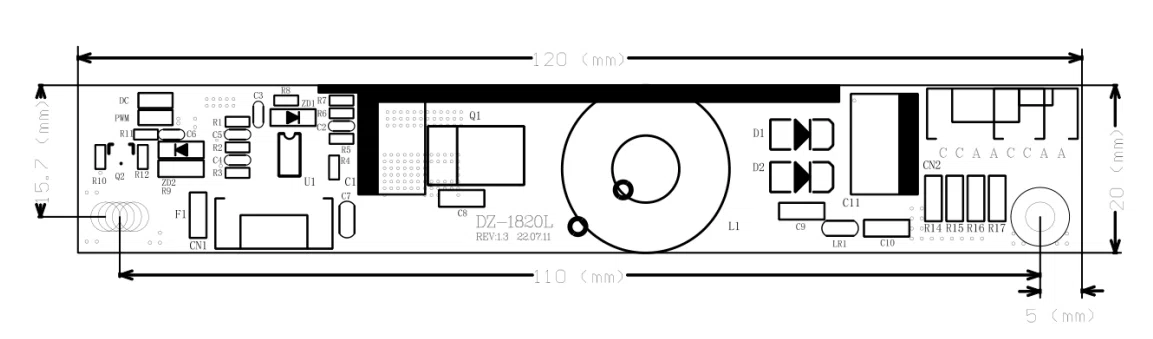

The mechanical drawing of HXD-1820L LED driver board is as follows:
To ensure safe and stable operation of your led driver pcb board, please follow these guidelines:
♦ Keep safe distance Maintain at least 5mm between the driver board and any metal parts of the device. Use insulation material if needed.
♦ Avoid physical damage Do not twist, bend, drop, or knock the led driver circuit board during assembly.
♦ ESD protection Always use an ESD shield bag during storage and transport. This board has no enclosure.
♦ Do not leave unused outputs shorted If any output group is not used, leave it floating (do not short to ground).
♦ Use correct voltage Input voltage must be 11.5–13V DC. Higher voltage may damage the board.
♦ Current adjustment Output current can be adjusted by changing the current‑limiting resistor: 0.2V ÷ Resistor (Ω) = Output Current (A)
♦ Dimming signal requirements
• ADJ: 0V=max brightness, 5V=min brightness
• PWM: 10–20kHz, 2–5V amplitude
Hengxinda is a China supplier and manufacturer specializing in industrial LCD screens and core LCD display components. With 15 years of deep expertise in the industrial display, we provide competitive LCD display solutions to customers worldwide through our unique dual-engine model of direct supply from original equipment manufacturers and customization at our own factories. We have established long-term, stable strategic partnerships with the world’s leading panel manufacturers and maintain a consistent supply of original Grade A industrial LCD screens ranging from 3.5 to 32 inches from the following brands: AUO, BOE, IVO, Sharp, Chimei Innolux, Kyocera, and others. In addition to LCD panel distribution, we specialize in the R&D and production of related accessories. Our product lines include: capacitive touch screens, resistive touch screens, infrared touch screens, LCD driver boards, LCD backlight LED driver boards, knob dimming modules, button dimming modules (for brightness adjustment in special environments such as medical, marine, and aviation applications), and cable : LVDS cables, eDP cables, and custom industrial display cables across various categories. We Promise: ♦ Constant Stock and Fast Shipping: We maintain a safety stock of standard brand models and in-house manufactured boards, enabling shipment within 24–48 hours of receiving an order. ♦ End-to-End Logistics Traceability: We collaborate closely with DHL, FedEx, UPS, and major ocean freight forwarders to provide full tracking and declared value services. ♦ 12-Month Manufacturer Warranty: All products come with a minimum one-year official warranty; our in-house boards and touchscreen products are eligible for extended technical support. ♦ 1-on-1 Remote Debugging by Engineers: We offer a 24/7 rapid response mechanism. During the equipment debugging phase, our hardware and software engineers will provide you with 1-on-1 online technical support. ♦ Long-Term Supply Lifecycle Guarantee: Recognizing the long lifecycle of industrial control equipment, Hengxinda commits to providing 3–5 years of stable, long-term supply for core models. For EOL models, we offer a comprehensive solution featuring our own in-house boards and alternative panel options to ensure your projects never face production interruptions.
Q: Why should you buy from us? What are our advantages? A: We are a specialized manufacturer dedicated to the research and production of constant-current backlight boards for displays, and we have established a strong reputation in the industry. Our LED driver boards have fostered long-term, stable partnerships with numerous well-known companies both domestically and internationally. They are widely used in industrial control, commercial displays, advertising machinery, medical equipment, and other fields, earning the trust and praise of our customers.
Q: Can HXD-1820L be used as a universal backlight driver?
A: No. HXD-1820L is designed for 12 to 24-inch LCD panels and is a universal backlight driver and universal LED backlight driver board.
Q: Is the HXD-1820L a dimmable LED module?
A: Yes, it supports both ADJand PWM dimming, making it a true dimmable LED module.
Q: What if my panel requires a different current?
A: We can pre-adjust the current for you.
Q10: What if I don't know backlight parameters for my LCD panels?
A: Please order from us beforehand. We will provide you with contact information, or you can tell us the specific model of your LCD panel. When selecting a LED driver board, please be sure to inform us of the model of the product you are using, or the parameters of the backlight. This way, we can adjust the parameters of the constant current source to be the most suitable for the screen when shipping.
