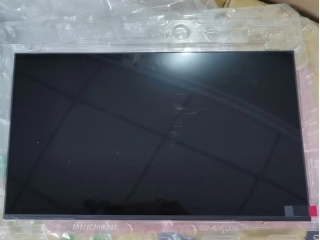

HK173VB-01B

HK173VB-01B

Download PDF Send Message

Basic Parameters

Panel Brand	Innolux	panel model	HK173VB-01B
Panel size	17.3-inch	panel type	LTPSTFT-LCD, LCD Module
resolution ratio	3840(RGB)x2160, UHD, 255PPI	pixel layout	RGB vertical stripes
display area	381.888(W)x214.812(H) mm	Appearance size	389.89(W)x227.3(H)x5.5(D) mm
visible size		surface treatment	matte
Brightness (cd/m²)	1180 (Typ.)	contrast	12000:1(Typ.) [Transmission]
best angle	full-view	optical mode	AAS, normally black display, transmissive
visual Angle	85/85/85/85 (Typ.) (CR≥10)	response speed	25 (Typ.) (Tr+Td) ms
number of colors	1.07B,100% NTSC	Backlight Type	Mini LED,15K hours, with LED driver
appearance style		be the same with	Notebook Industrial Outdoor Highlight
refresh rate	120Hz	touch function	touchless
signaling system	eDP(4 Lanes), eDP1.4, HBR3 (8.1G/lane), Terminals, 40 pins
supply voltage	3.3V (Typ.)
maximum rated	Storage temperature: -20 ° C ~ 60 ° C Working temperature: 0~50° C

Related Products

Brand	Model Name	Size	Resolution	Brightness	Contrast Ratio	Backlight Type	Interface	pins	Operation Temperature	Download PDF	Add Inquiry
Tianma	P1730FHF1MB00	17.3"	1920×1080	500 nits	1700:1	WLED	LVDS	30	-20~60 °C
Tianma	P1730FHF1MA10	17.3"	1920×1080	1200 nits	1700:1	WLED	eDP	30	-30 ~80 ° C
Innolux	HK173VB-01B	17.3"	3840×2160	1180 nits	12000:1	Mini LED	eDP	40	0~50° C
AUO	G173HW01 V0	17.3"	1920×1080	400 nits	600:1	WLED	LVDS	30	0~70°C
AUO	G170ETN03.1	17"	1280×1024	400 nits	1000:1	WLED	LVDS	30	0~50℃
AUO	G170ETN02.1	17"	1280×1024	800 nits	700:1	WLED	LVDS	30	-30~85℃
AUO	G170ETN02.0	17"	1280×1024	400 nits	800:1	WLED	LVDS	30	-30~85℃
AUO	G170EG01 V104	17"	1280×1024	350 nits	800:1	WLED	LVDS	30	-30~ 85 ℃
AUO	G170ETN01.0	17"	1280×1024	350 nits	1000:1	WLED	LVDS	30	0~50℃
