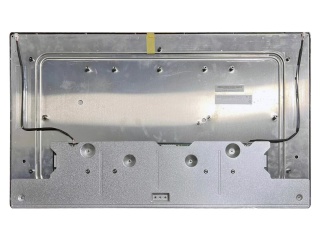

G320ZAN01.0

Panel Brand	AUO	panel model	G320ZAN01.0
Panel size	32.0 inches	panel type	a-Si TFT-LCD, LCD Module
resolution ratio	3840(RGB)x2160, UHD, 137PPI	pixel layout	RGB vertical stripes
display area	708.48(W)x398.52(H) mm	Appearance size	727.3(W)x424.5(H)x20.98(D) mm
visible size	714.48 x 404.52 (HxV) mm	surface treatment	matte
Brightness (cd/m²)	700 cd/m² (Typ.)	contrast	1350:1(Typ.) (transmission)
recommended angle of view	full-view	optical mode	AHVA, normally black display, transmissive
visual Angle	89/89/89/89 (Typ.) (CR≥10)	response speed	8/10 (Typ.) (Tr/Td) ms
number of colors	1.07B,100% Adobe RGB	backlight system	WLED,30K hours with LED driver
weight	4.63±0.46Kgs	be the same with	Industrial Medical Imaging Outdoor Highlight
refresh rate	60Hz	touch screen	touchless
signal type	V-by-One 8 lane, terminal, 51 pins
voltage supply	12.0V (Typ.)
maximum rated	Storage temperature: -20 ° C ~ 60 ° C;Operating temperature: 0~50℃
